Product Specification
Model Dimensions
Length: 102 mm (over coupling)
Width: 26 mm
Height: 35 mm
Minimum radius:
Prototype Information
Manufacturer: Hunslet Engine Company
Railway: North Wales Narrow Gauge Railways
Gauge: 2'
Era: 1878 - 1906

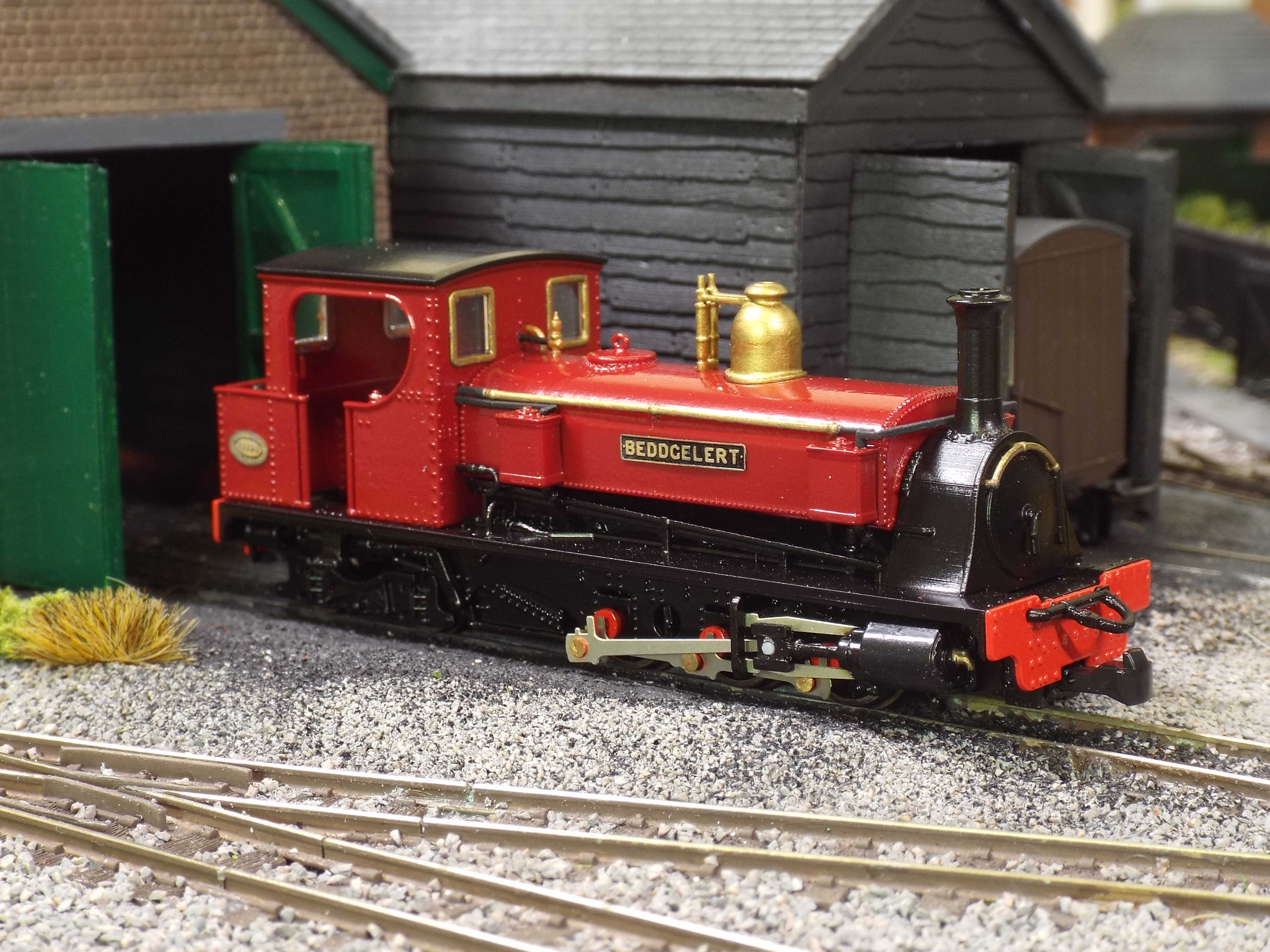

Beddgelert
£74.99
Skip to product information
Related products

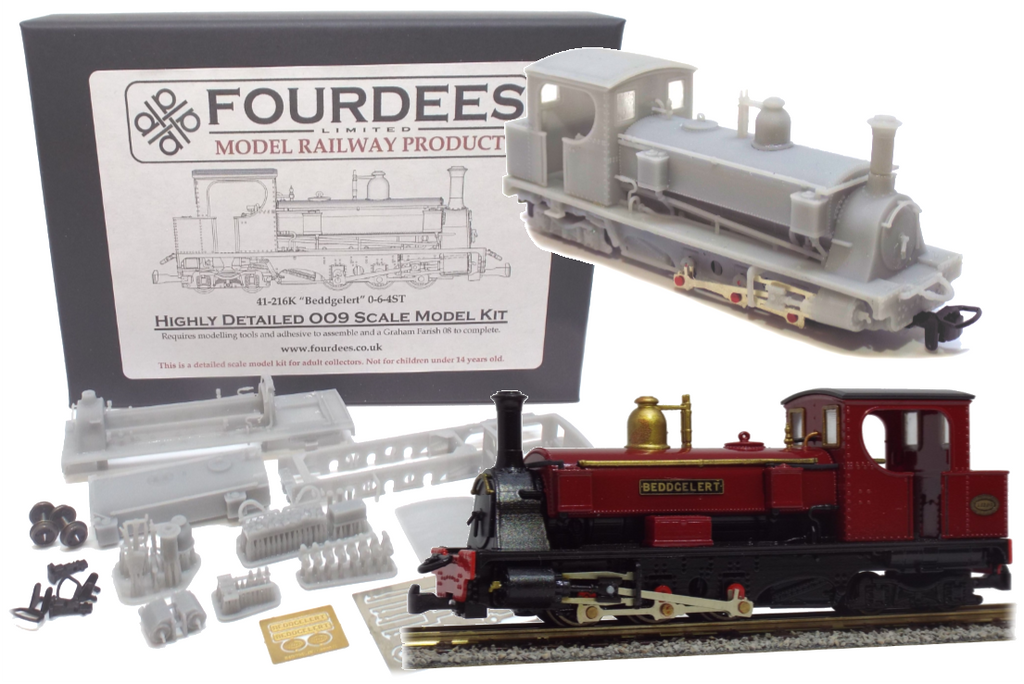

This is a detailed scale model kit for adult collectors. Not for children under 14 years old.
Beddgelert was built in 1878 by the Hunslet Engine Company (Leeds - works number 206) to supplement the fleet of the North Wales Narrow Gauge Railways (now part of the Welsh Highland Railway from Dinas to Rhyd Ddu). Its 0-6-4T arrangement resulted in a large overhang at the cab end, which meant it was prone to derailing the leading wagons on sharp curves. Beddgelert was later modified with a raised smokebox and an inclined boiler, in order for it to work the 1-in-40 gradients of the Bryngwyn Branch cab first.

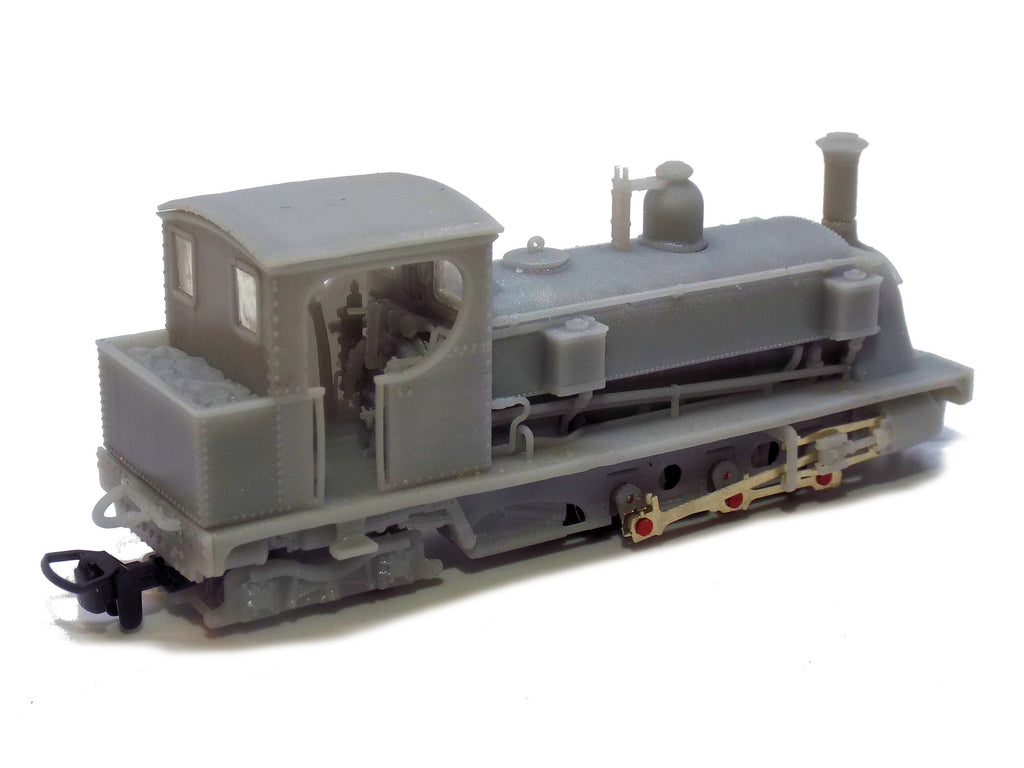

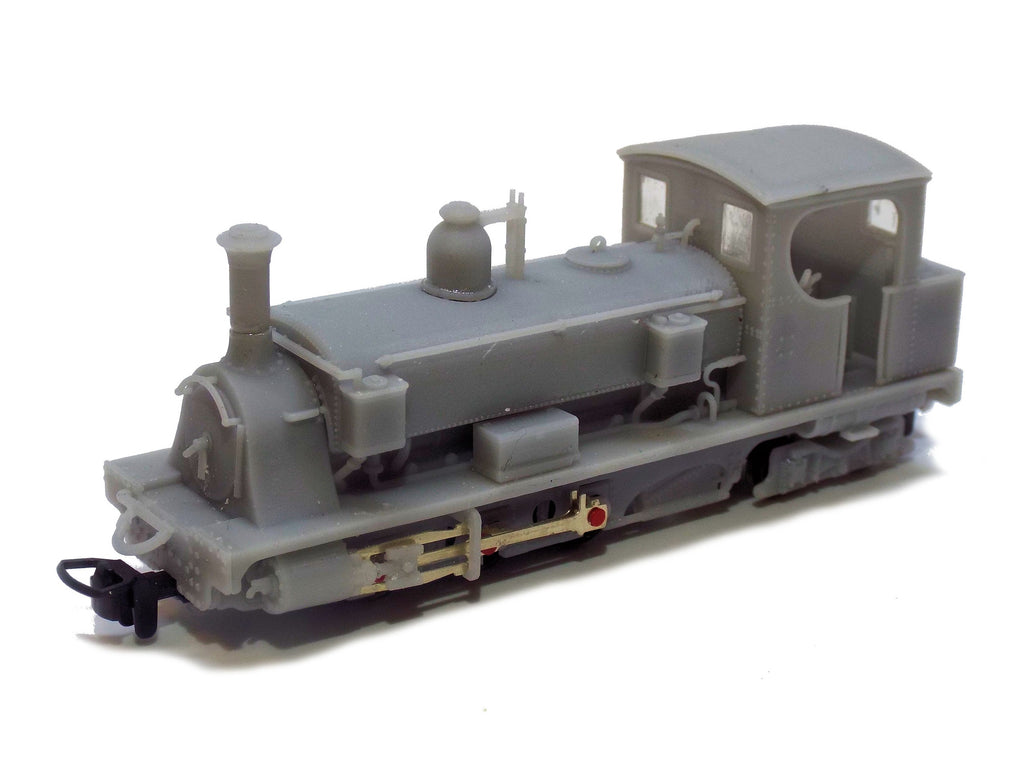

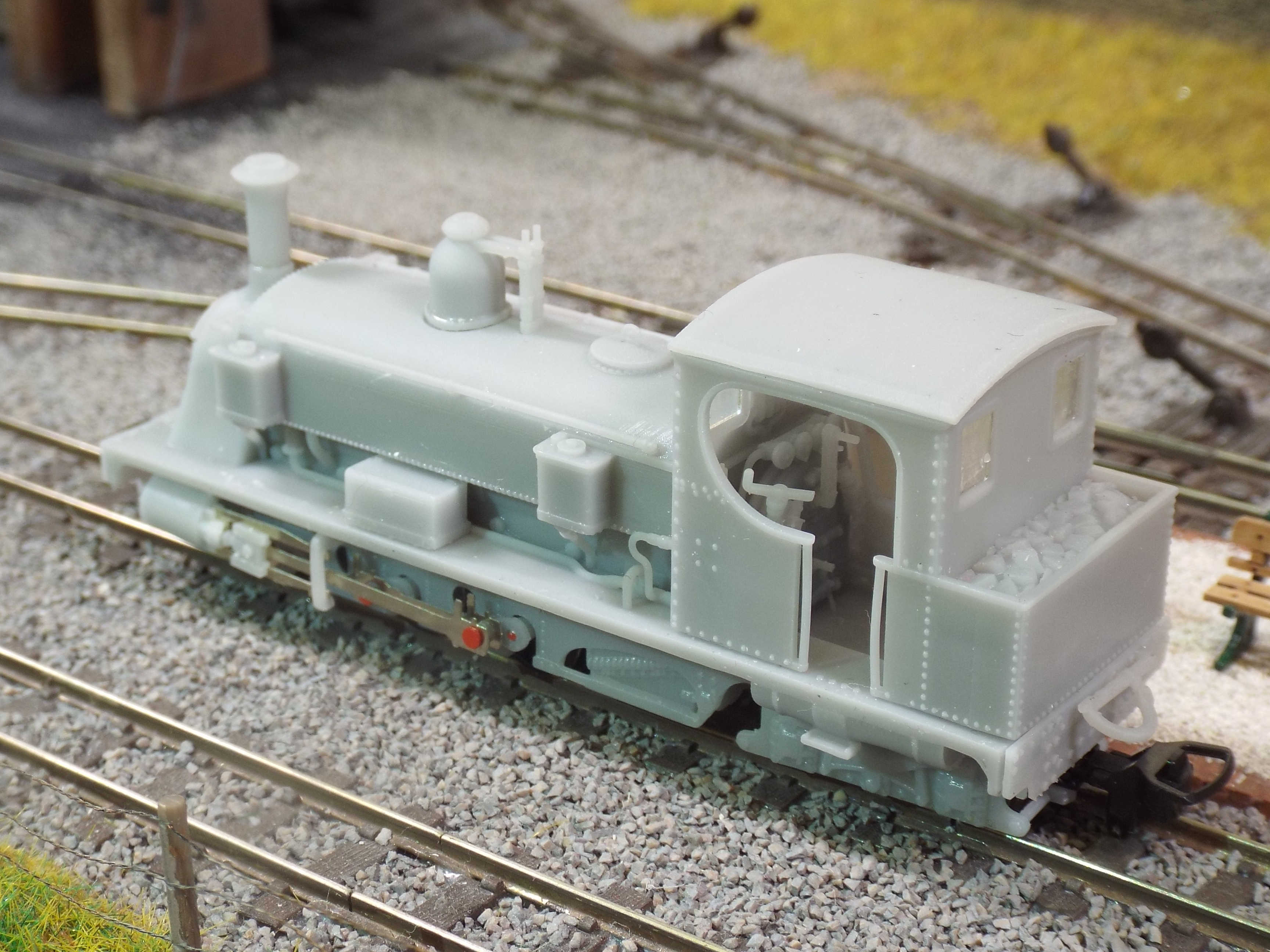

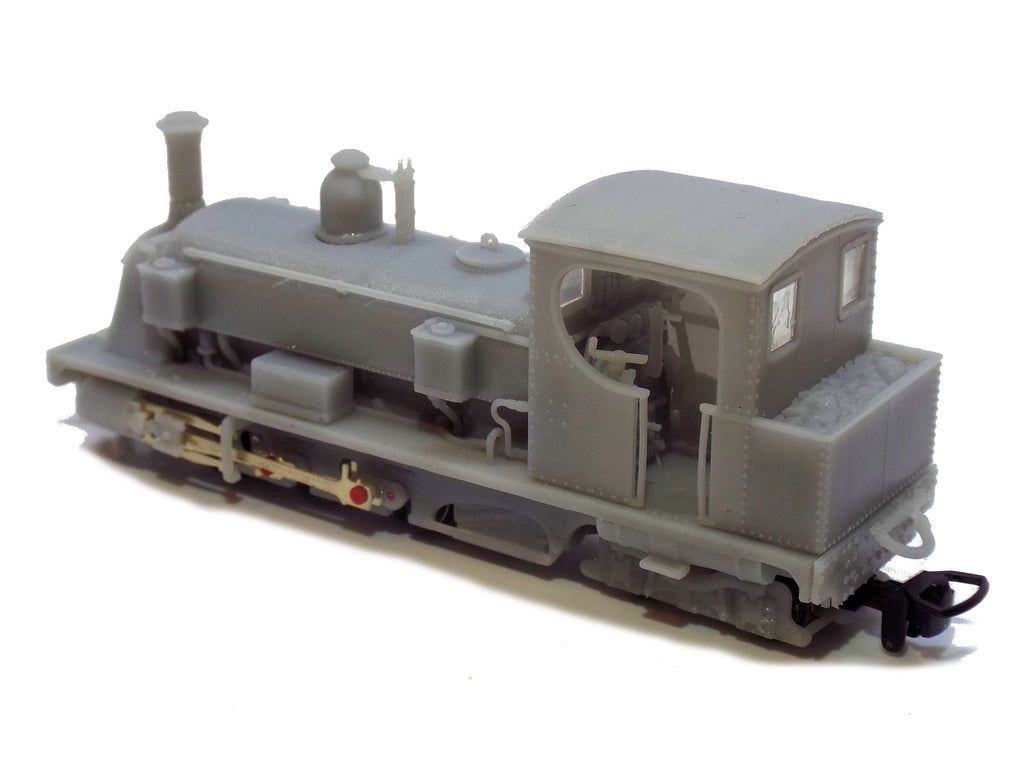

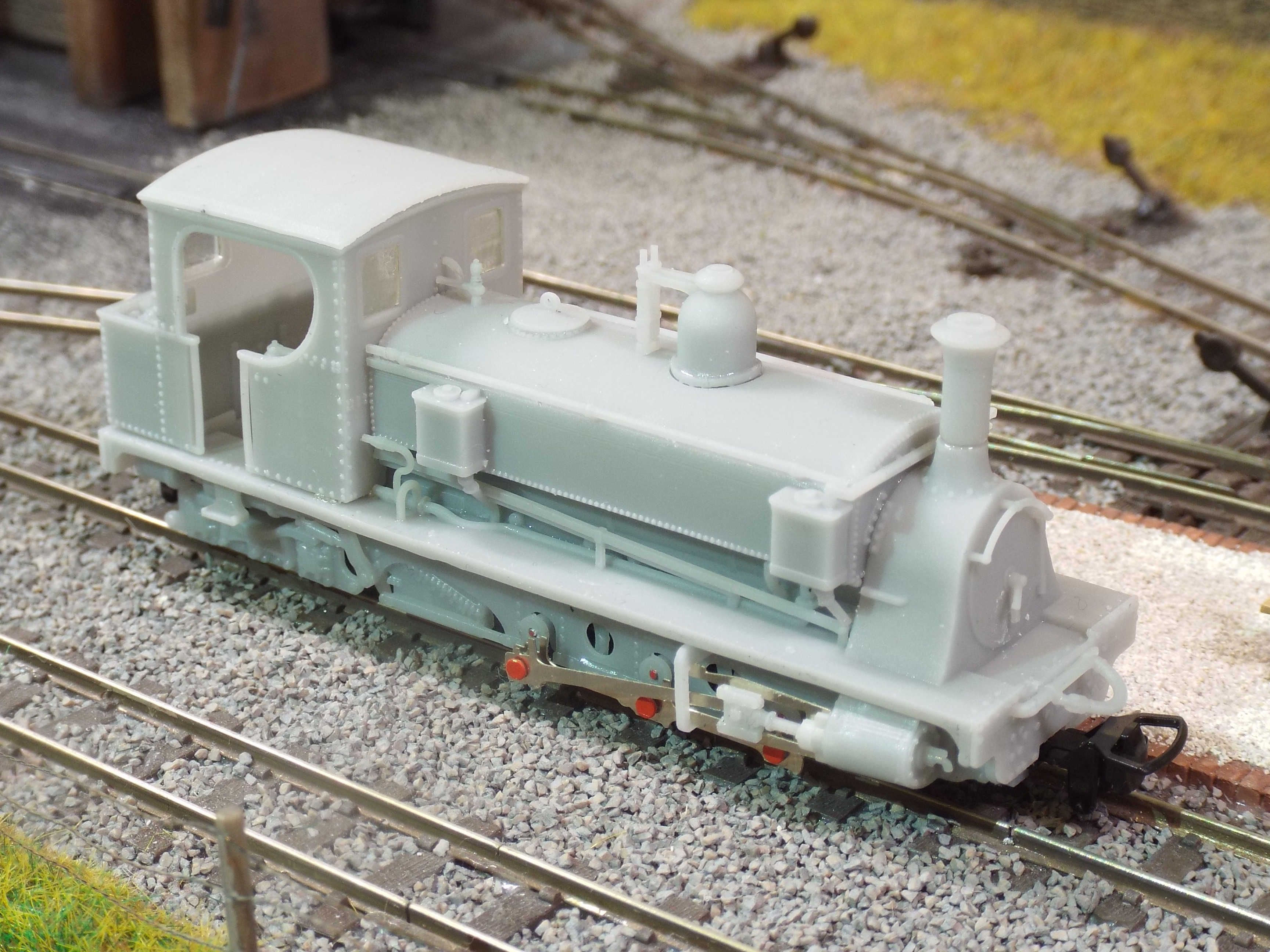

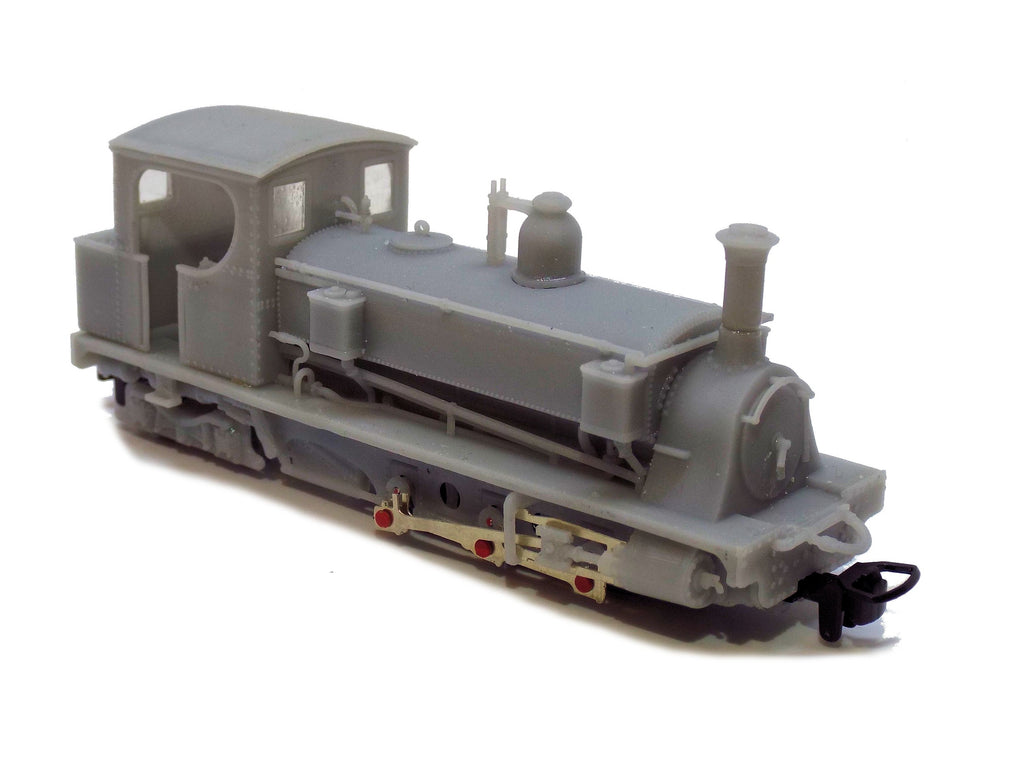

The model includes all parts required to assemble working outside-framed motion, including accurate replacement flycranks and ponytruck wheelset.
This is an advance kit. The body is in many separate components, including frame, saddle, cab and roof. The Graham Farish 08 chassis requires significant modification to complete, in this case replacing the frames and all the motion and flycranks. There is no valve gear, and so the only delicate component is the crosshead and coupling-rod assembly.
Manufacturing
This is a highly detailed 4mm scale kit built using our in house machines, with High Definition resin and build layers just 50 microns (0.05mm) thick. Whilst there is 'stepping' visible on the parts up close, this is not discernible once the kit is painted and/or from usual viewing distances.
The parts have their main supports removed, though detailing and structural supports will remain to protect the parts in transit, and require removing prior to assembly. Some polishing and filing of the parts is required to provide a smooth finish. Clear (and varnished) resin windows are included, though you may wish to use clear plastic sheet (not included) if preferred.
Assembly
You will need modelling tools (such as a craft knife, cutting board, files and micro-drills) adhesive, paints and ballast material (such as Liquid Gravity) to assemble the kit.
This kit requires a GRAHAM FARISH 08 chassis to motorise the finished model. Consult instructions to see if the chassis needs any modification before fitting.
Hints and Tips
Keep resin parts out of direct sunlight. Detailing and structural supports remain in order to protect the parts in transit, and should be removed before painting.
Parts will benefit from a wash in cool soapy water before painting, but do not leave them to soak. Alternative, Isopropyl alcohol is also a good cleaning solution if parts feel overly sticky.
If any components appear bent or warped, heat them gently with a hairdryer or in warm water (do not soak), and then hold parts whilst they cool.
If modifying the parts in any way (either by cutting, filing, sanding or drilling) be sure to wear appropriate protective clothing such as gloves and masks.
