OO9 scale | Resin kit | 41-334K
This is a detailed scale model kit for adult collectors. Not for children under 14 years old.

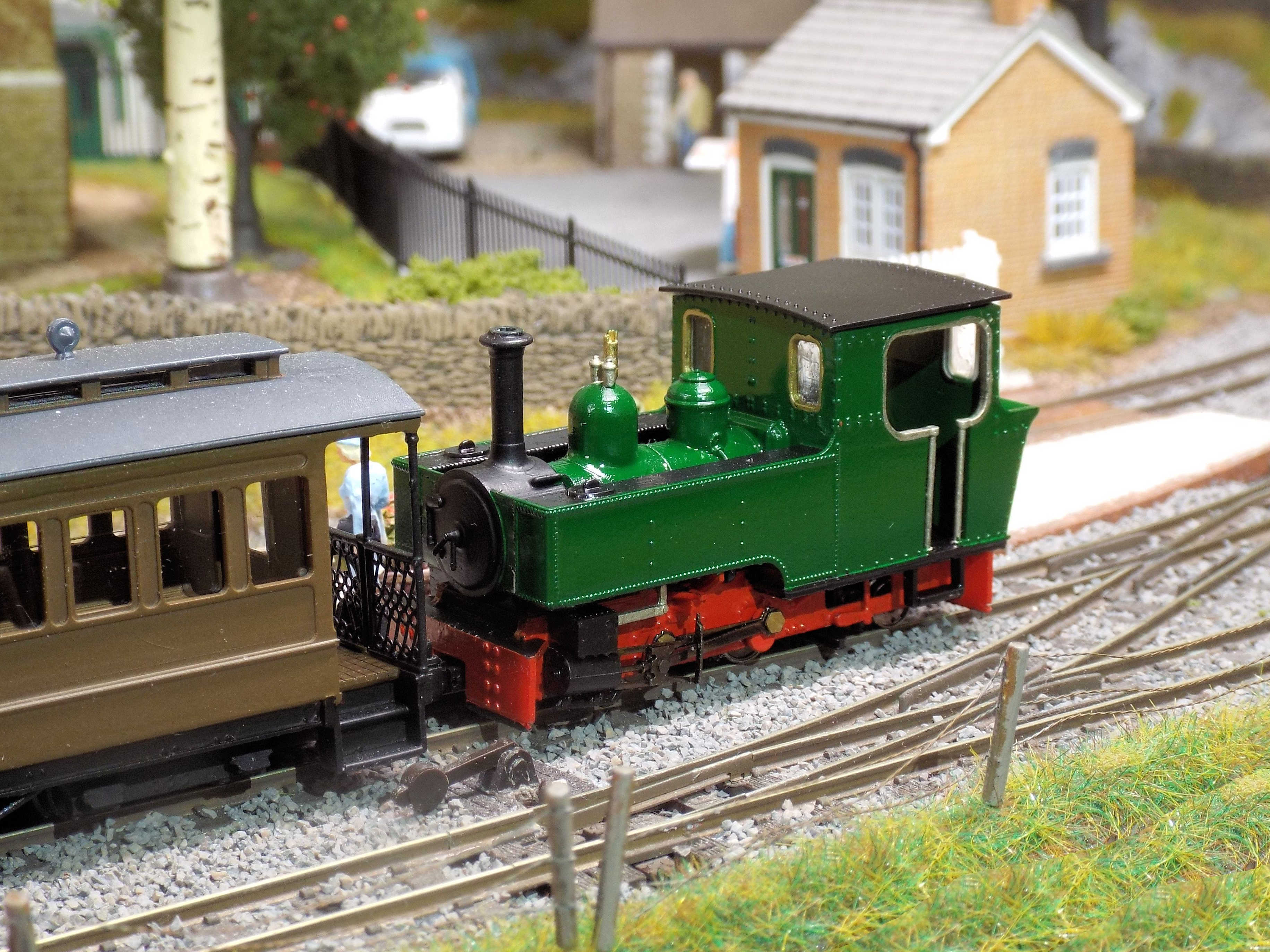

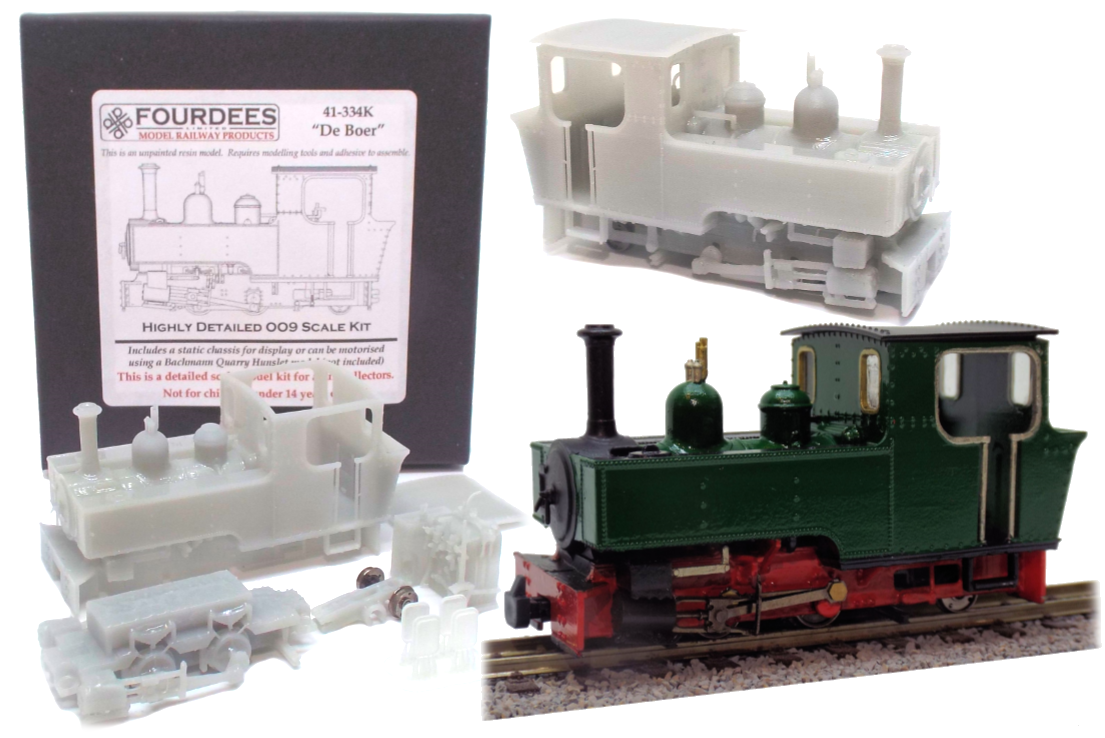

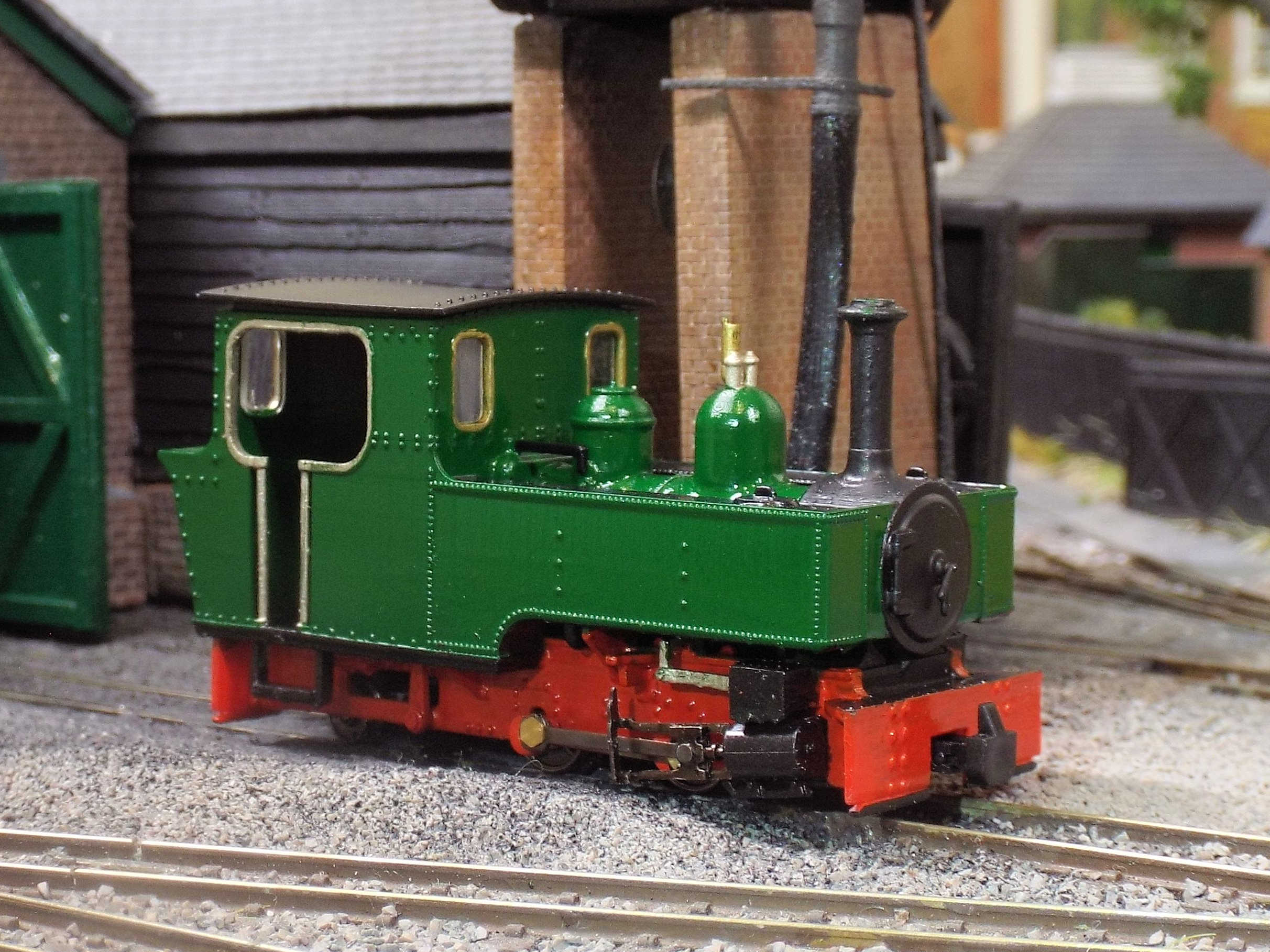

This model kit is of a 0-4-2T locomotive, inspired by a machine built in 1927 for De Beer's Consolidated Diamond Mines (Kimberley, SA). There were several lines serving the mining complex, and this particular machine was built to the unusual gauge of 18. We have scaled up the profile of this machine to represent a freelance locomotive built to 2' gauge.

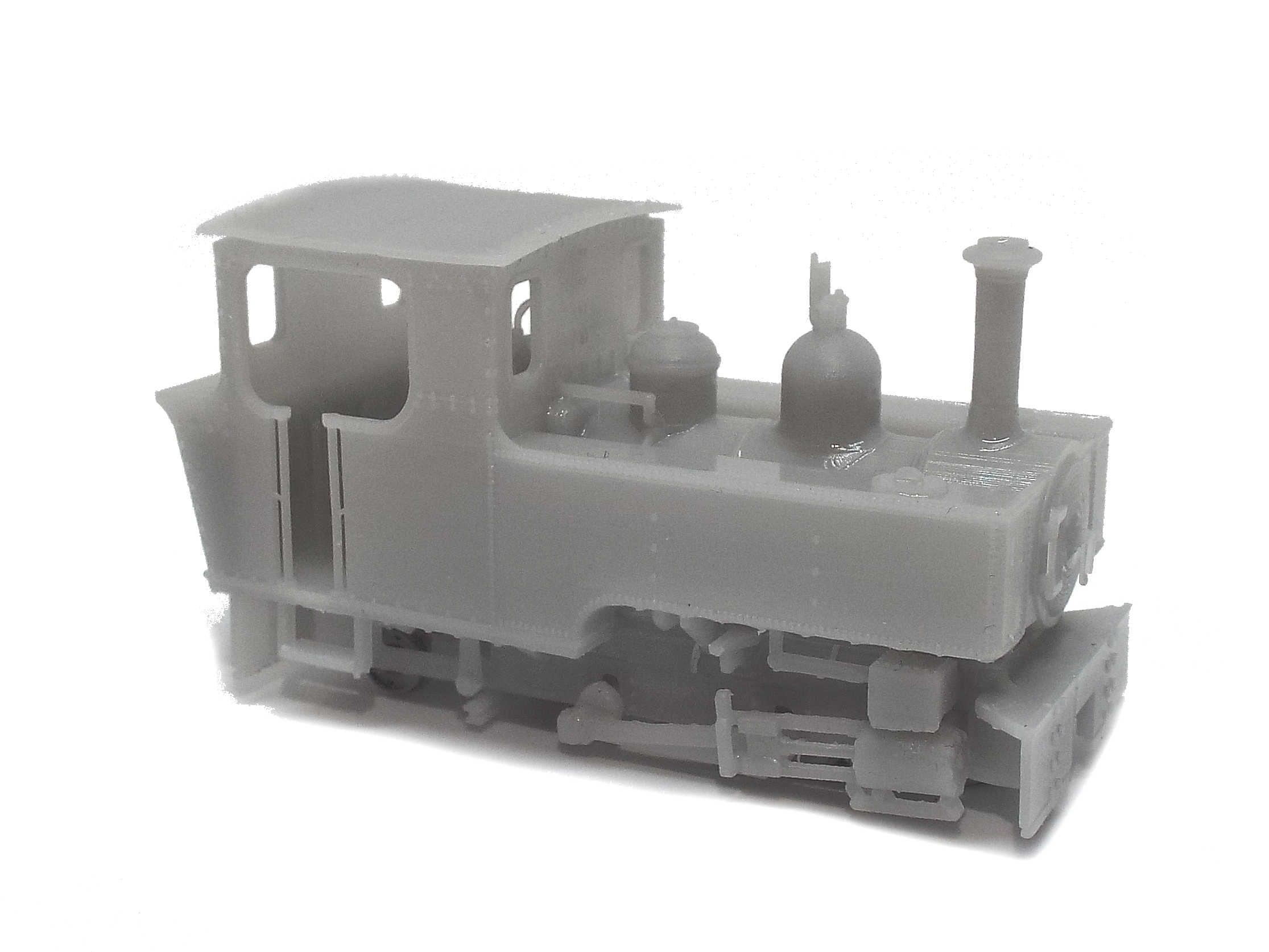

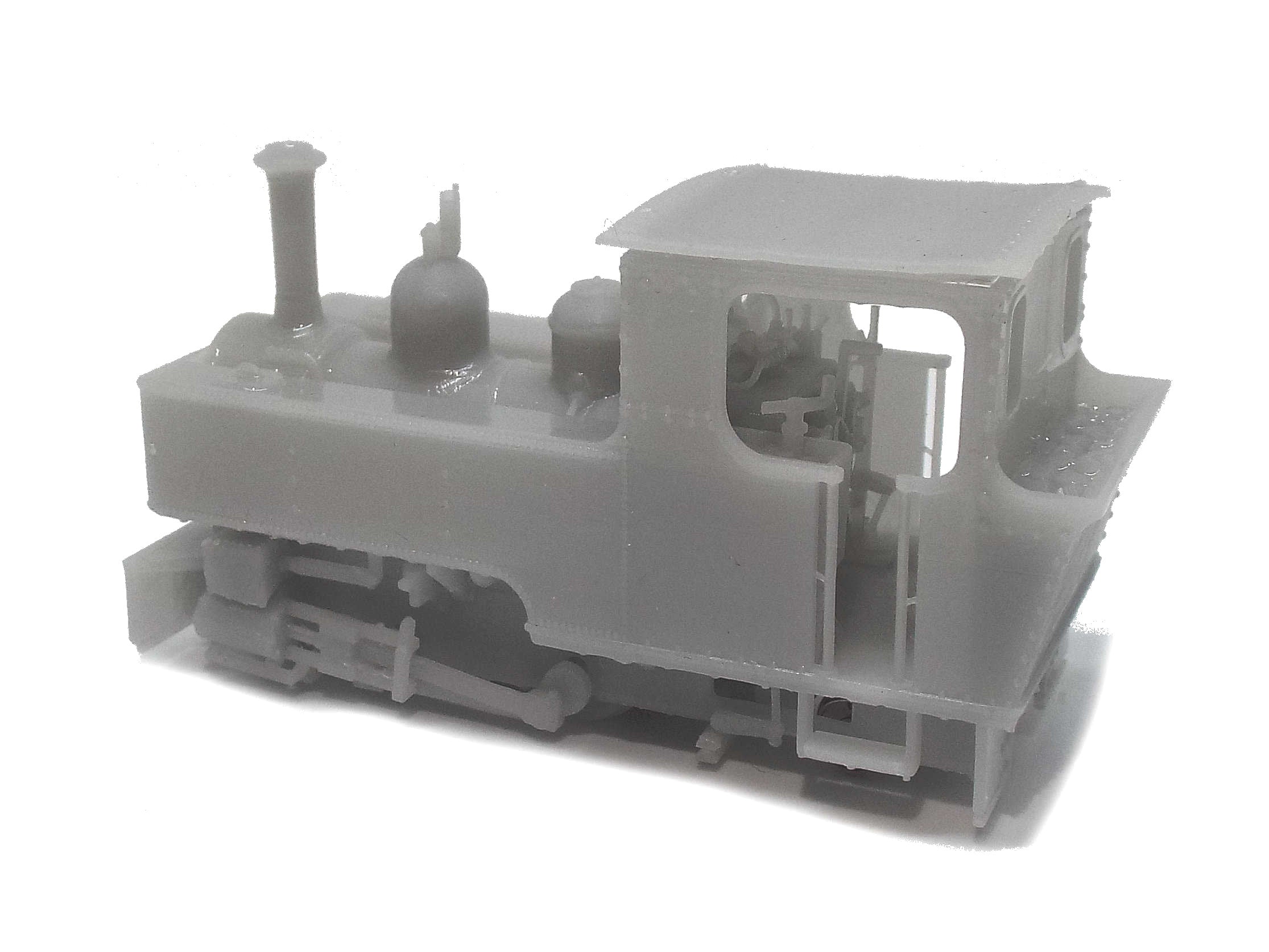

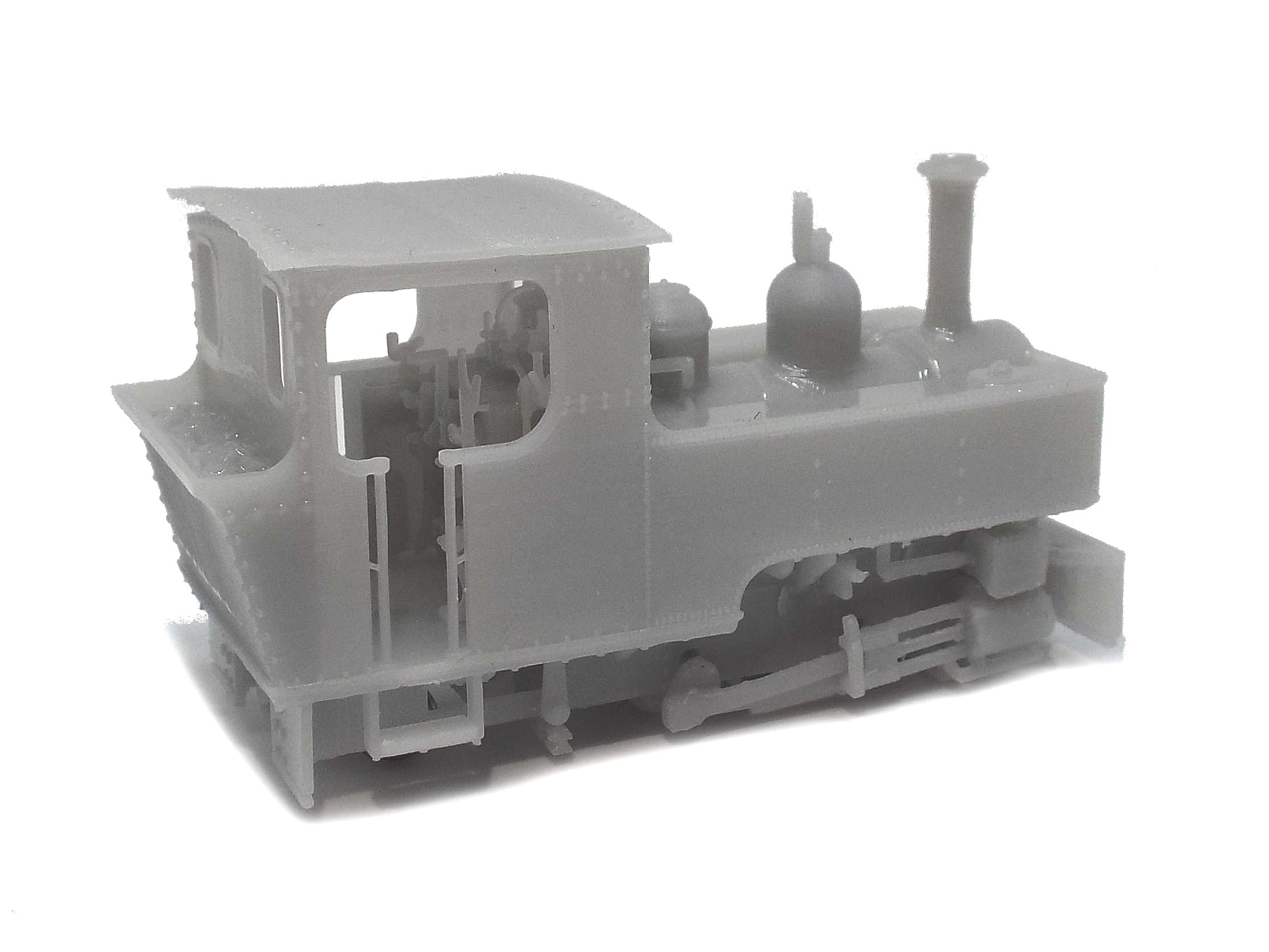

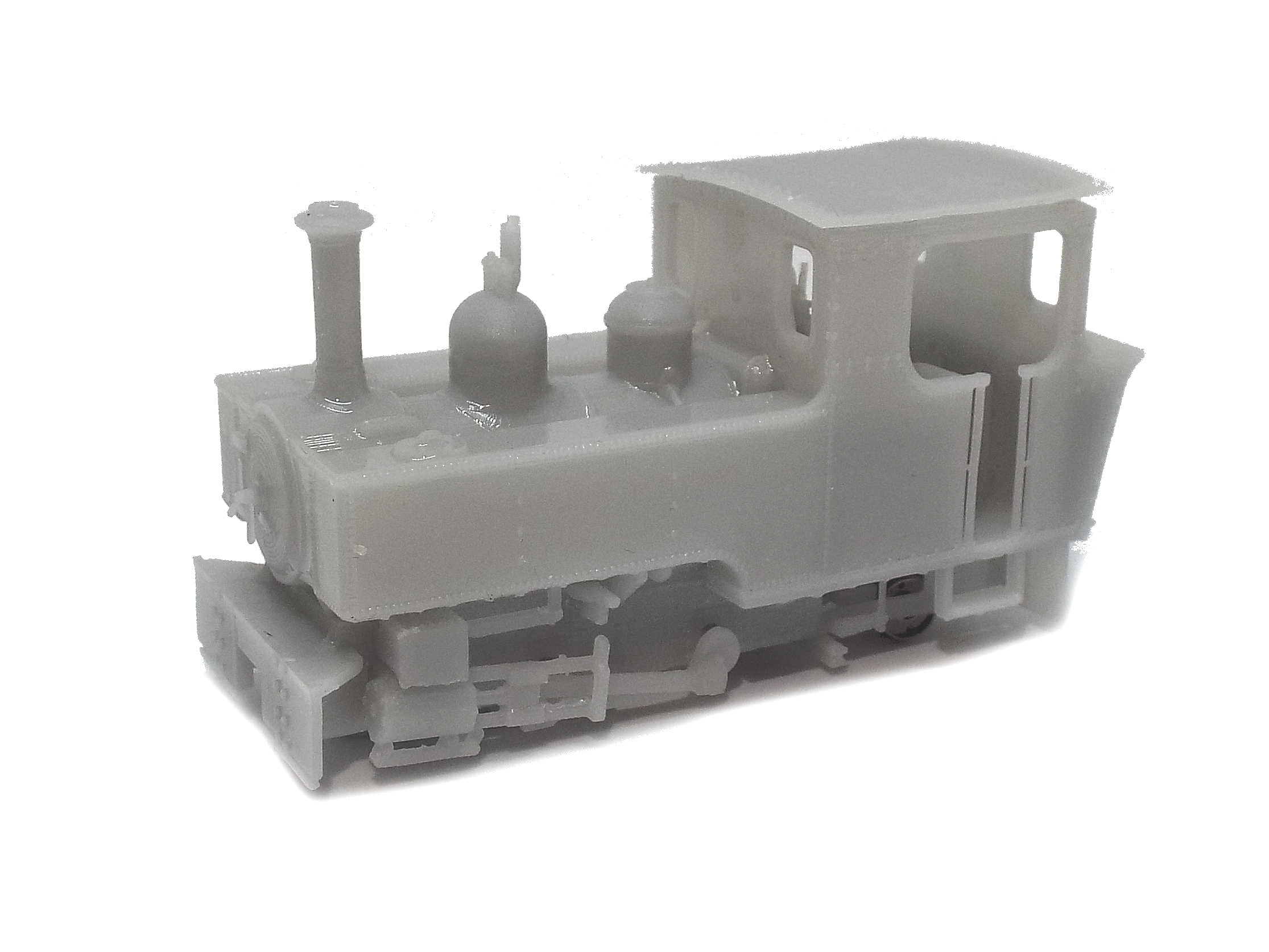

This is a highly detailed 4mm scale kit built using our in house machines, with High Definition resin and build layers just 50 microns (0.05mm) thick. Whilst there is 'stepping' visible on the parts up close, this is not discernible once the kit is painted and/or from usual viewing distances.
The parts have their main supports removed, though detailing and structural supports will remain to protect the parts in transit, and require removing prior to assembly. Some polishing and filing of the parts is required to provide a smooth finish. Clear (and varnished) resin windows are included, though you may wish to use clear plastic sheet (not included) if preferred.
You will need modelling tools (such as a craft knife, cutting board, files and micro-drills) adhesive, paints and ballast material (such as Liquid Gravity) to assemble the kit.
This kit requires a Bachmann Narrow Guage - 009 Quarry Hunslet to motorise the finished model. Consult instructions to see if the chassis needs any modification before fitting.
Keep resin parts out of direct sunlight. Detailing and structural supports remain in order to protect the parts in transit, and should be removed before painting.
Parts will benefit from a wash in cool soapy water before painting, but do not leave them to soak. Alternative, Isopropyl alcohol is also a good cleaning solution if parts feel overly sticky.
If any components appear bent or warped, heat them gently with a hairdryer or in warm water (do not soak), and then hold parts whilst they cool.
If modifying the parts in any way (either by cutting, filing, sanding or drilling) be sure to wear appropriate protective clothing such as gloves and masks.
Length: 65 mm (over bufferbeams)
Width: 26 mm
Height: 35 mm
Minimum radius:
Manufacturer: John Fowler and Company
Railway: Inspired by De Beers Diamond Mines, Kimberley (SA)
Gauge: 2'
Era: 1920 - present
