Product Specification
Model Dimensions
Length: 137 mm
Width: 28 mm
Height: 31 mm
Minimum radius:
Prototype Information
Manufacturer: Brown, Marshalls and Co. Ltd (modified at Boston Lodge)
Railway: Ffestiniog Railway
Gauge: 2'
Era: 1965 - 1986
FR Ashbury Carriages 23 and 26 (1980s)
£69.99
Skip to product information
1 left
OO9 scale | Resin kit | 44-106K
FR Ashbury Carriages 23 and 26 (1980s)
£69.99
Related products
This is a detailed scale model kit for adult collectors. Not for children under 14 years old.
This model kit is of carriages 23 and 26, as running on the Ffestiniog Railway in the early years of preservation (1969 - 1990). Both carriages were build by the Ashbury Carriage and Iron Company for the North Wales Narrow Gauge Railways, and came to the Ffestiniog Railway in the 1920's when they took over operations on the Welsh Highland Railway.
These were originally summer cars (with half-height doors) and required cutting down to fit through the Ffestiniog Railway's tunnels. Originally with matchboard/planked bodies, these were modernised in the late 1960's and received plain panelled bodywork. Doors from the now scrapped carriage 21 were used to make these fully enclosed vehicles for tourists.
Manufacturing

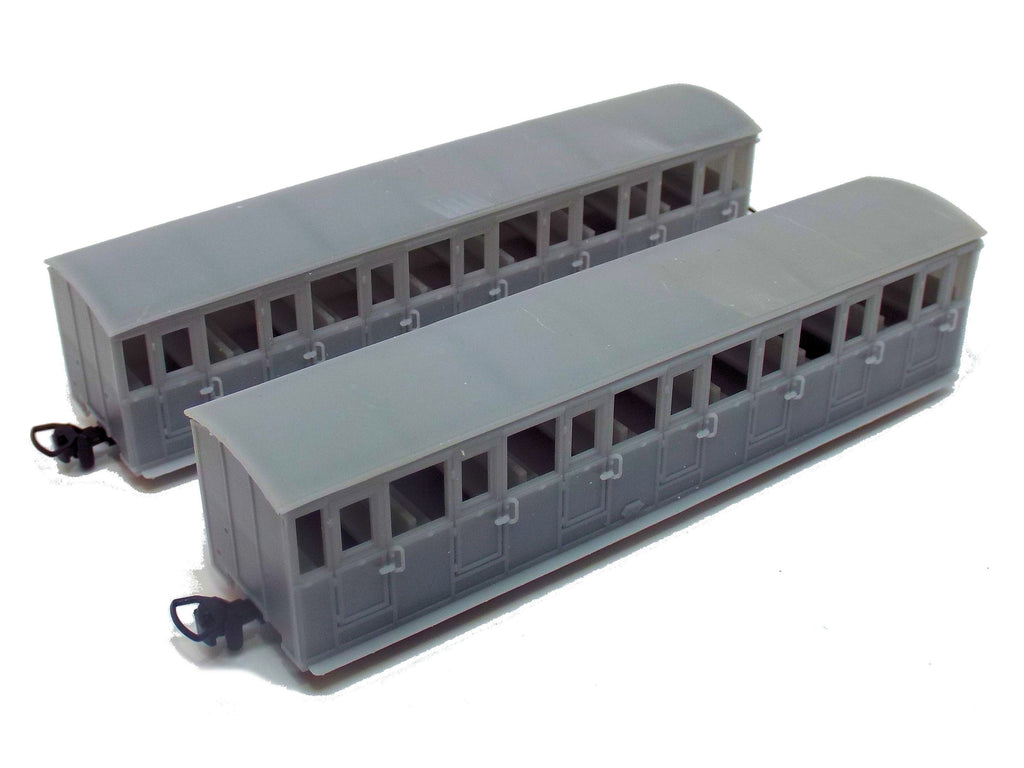

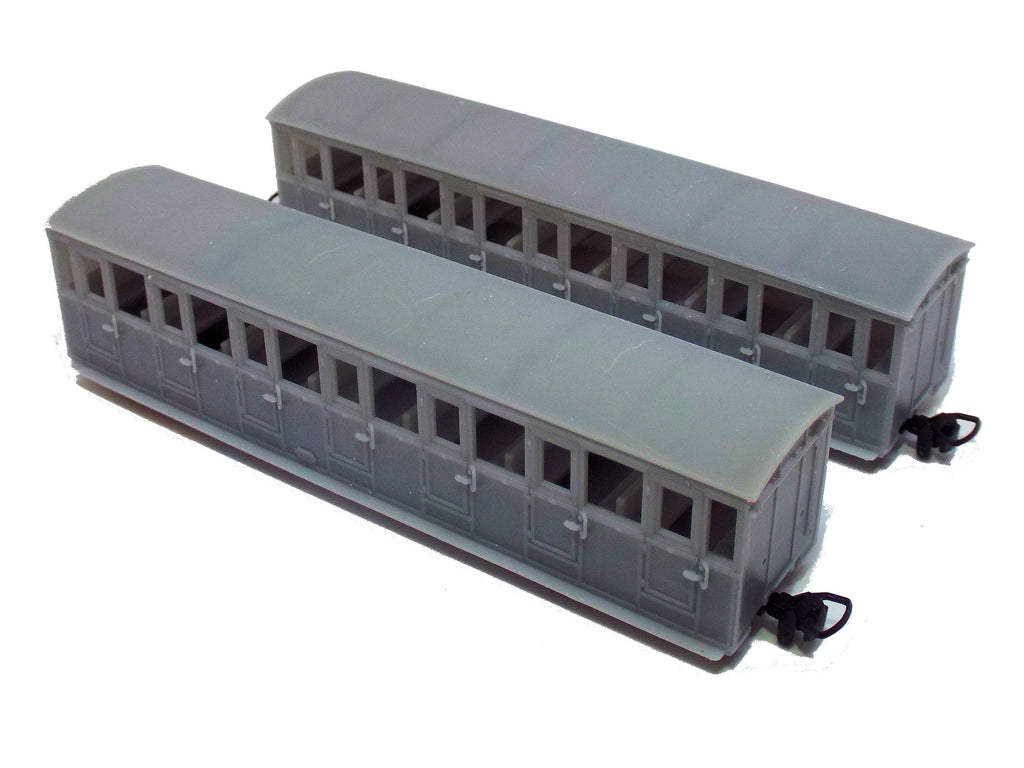

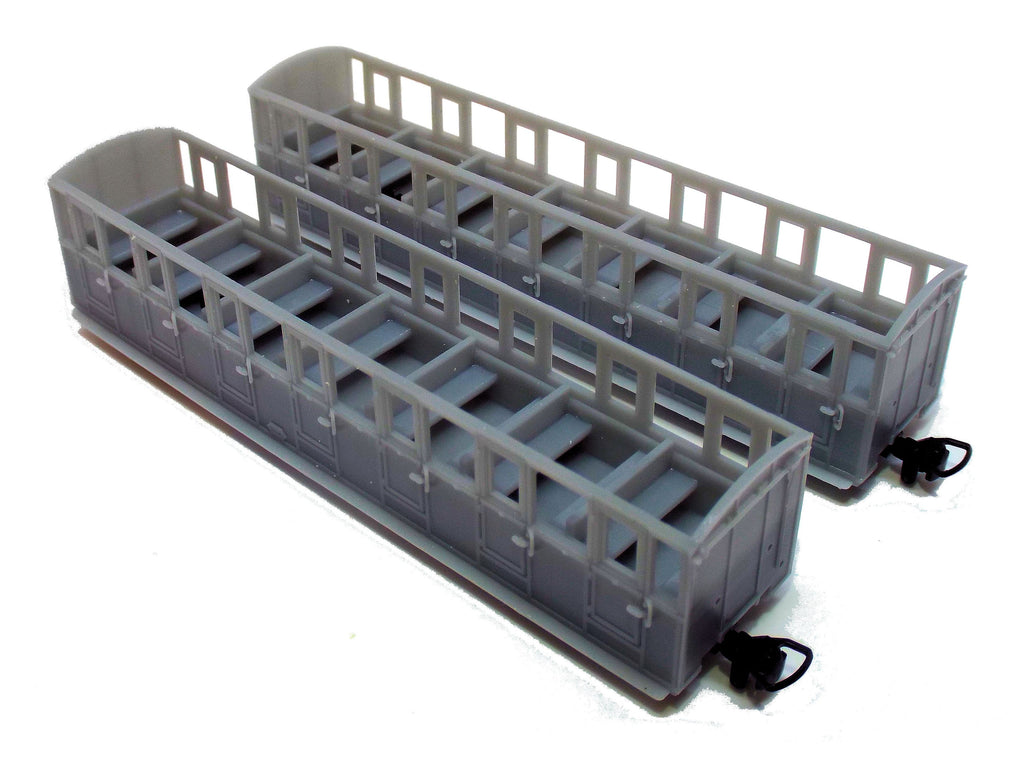

This is a highly detailed 4mm scale kit built using our in house machines, with High Definition resin and build layers just 50 microns (0.05mm) thick. Whilst there is 'stepping' visible on the parts up close, this is not discernible once the kit is painted and/or from usual viewing distances.
The parts have their main supports removed, though detailing and structural supports will remain to protect the parts in transit, and require removing prior to assembly. Some polishing and filing of the parts is required to provide a smooth finish.

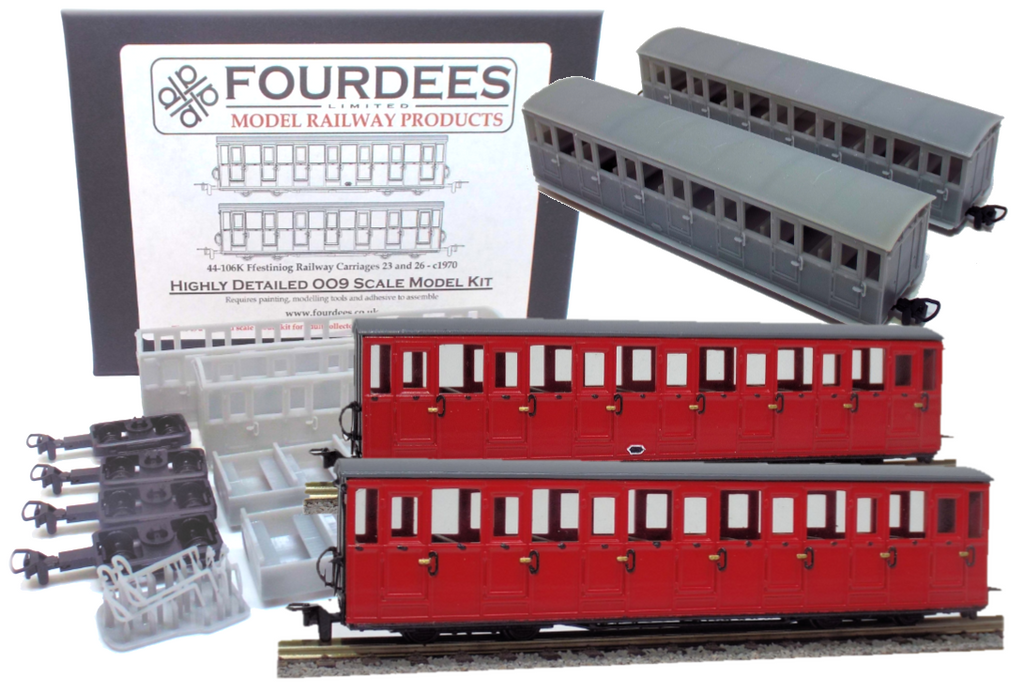

Detailed resin bogies and PECO plastic wheelsets are included with the model. The bogies include NEM pockets with which accept the included resin OO9 couplings. For glazed vehicles, a clear perspex sheet is provided that can be cut to size before fitting.
Assembly
You will need modelling tools (such as a craft knife, cutting board, files and micro-drills), adhesive and paints to assemble and finish the kit.
Hints and Tips
Keep resin parts out of direct sunlight. Detailing and structural supports remain in order to protect the parts in transit, and should be removed before painting.
Parts will benefit from a wash in cool soapy water before painting, but do not leave them to soak. Alternative, Isopropyl alcohol is also a good cleaning solution if parts feel overly sticky.
If any components appear bent or warped, heat them gently with a hairdryer or in warm water (do not soak), and then hold parts whilst they cool.
If modifying the parts in any way (either by cutting, filing, sanding or drilling) be sure to wear appropriate protective clothing such as gloves and masks.
Return policy
We have a 14-day return policy, which means you have 14 days after receiving your item to request a return. For full details please see our returns policy.
Damages and replacements
Fourdees Limited is not liable for any breakages of parts during assembly of the kit.
If parts arrive damaged, please provide photographic evidence and we shall replace the damaged component. If you require spares or accessories, please contact us for a quote for replacements.
