FR Centenary Carriages 101 and 112

OO9 scale | Resin kit | 44-117K

FR Centenary Carriages 101 and 112

£84.99
Out of stock

Related products

This is a detailed scale model kit for adult collectors. Not for children under 14 years old.

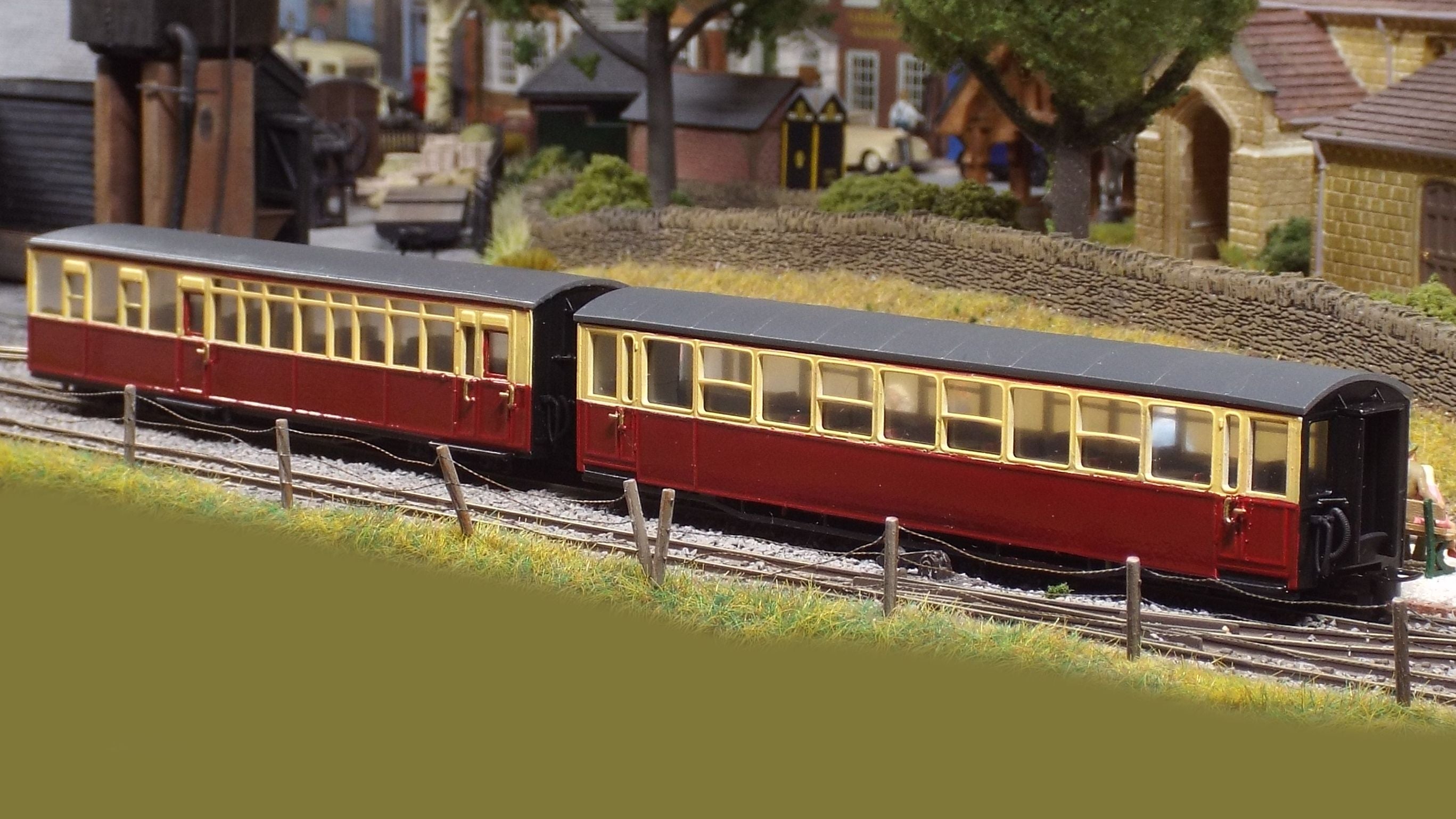

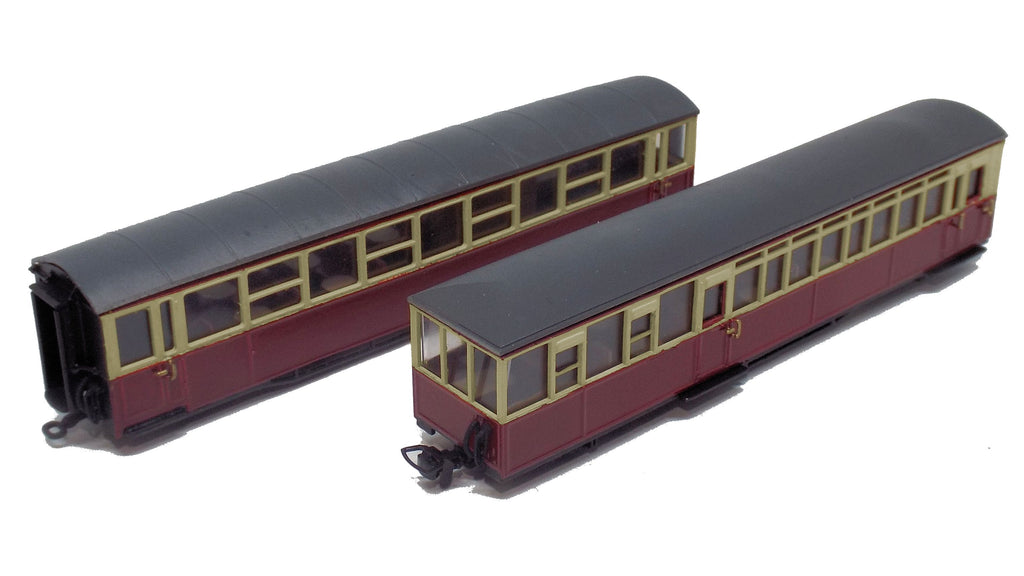

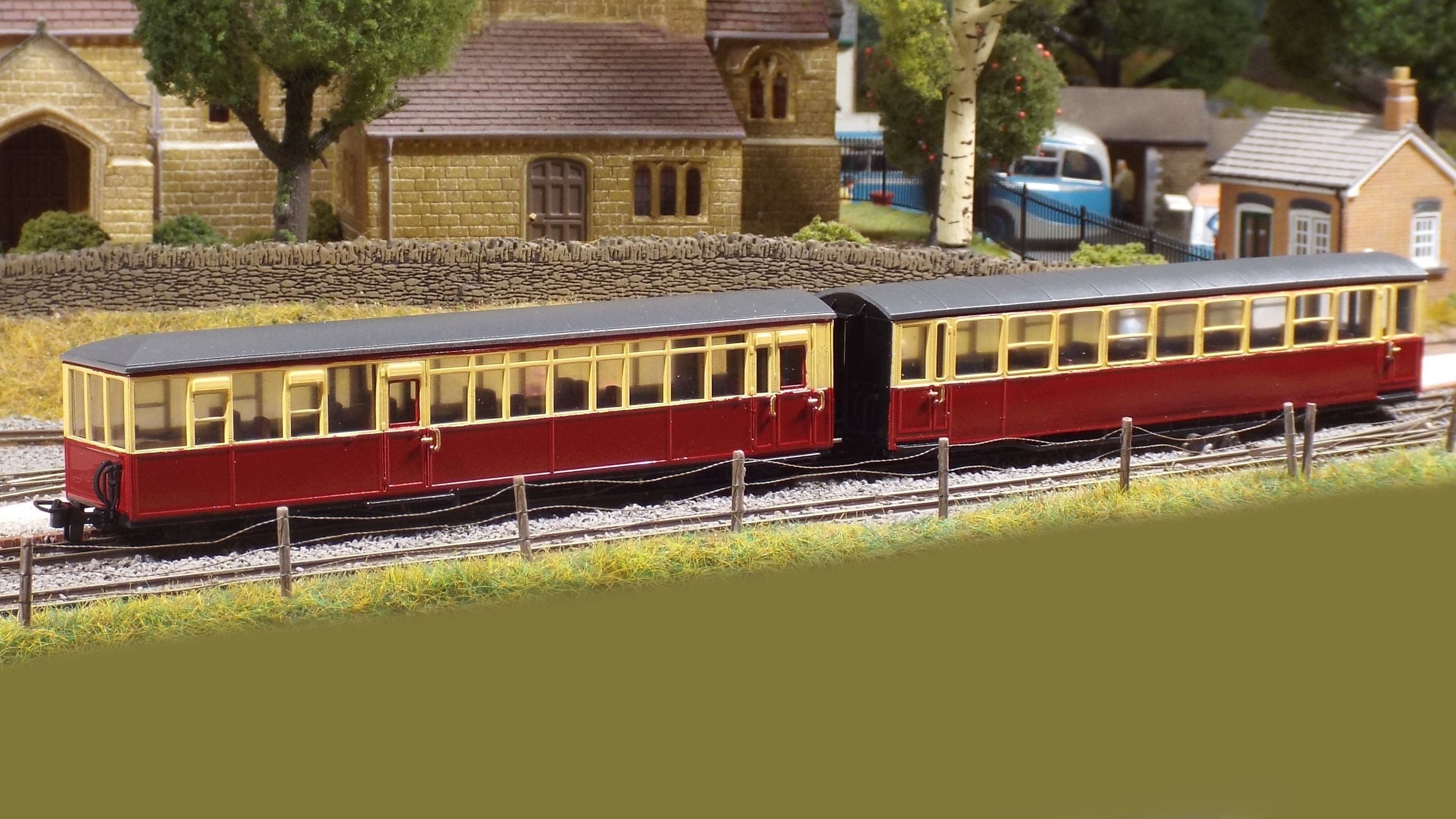

This model kit is of carriages 101 and 112, as running on the Ffestiniog Railway in 2020. Carriage 101 is part of the Centenary Stock series of vehicles, also known as 'The Barns'. Since the railway no longer traverses the old Moelwyn Tunnel, vehicles can be built to a slightly larger loading gauge. These were built in the late 1960's and are modern vehicles, taking design cues from the Lynton and Barnstable Carriage 14 that had been modified to work the railway. Carriage 112 is one of three 'Carnforth' carriages, built in the early 1990's by Carnforth Railway Restoration and Engineering Services. These modern vehicles are of aluminium construction, with wide easy-access doors at each end, and run on distinction 'chevron' bogies.

101 dates back to the 1970s as one of the original obs/guard carriages. It has now been heavily modified, with the guards compartment removed, all new seating as a third class 'top-end' obs, with brake equipment moved to the opposite side of the vehicle.

112 was originally a Third Saloon with two First Class Compartments. In the late-2010's this vehicle was downgraded to a full Third Saloon with accessible space for wheelchairs.

There is also a raft of detailing brake and electrical connections specific to these vehicles. The gangway fallplates can positioned either up or down, with the latter requiring the use of the provided 'Gangway Couplings'.
Manufacturing

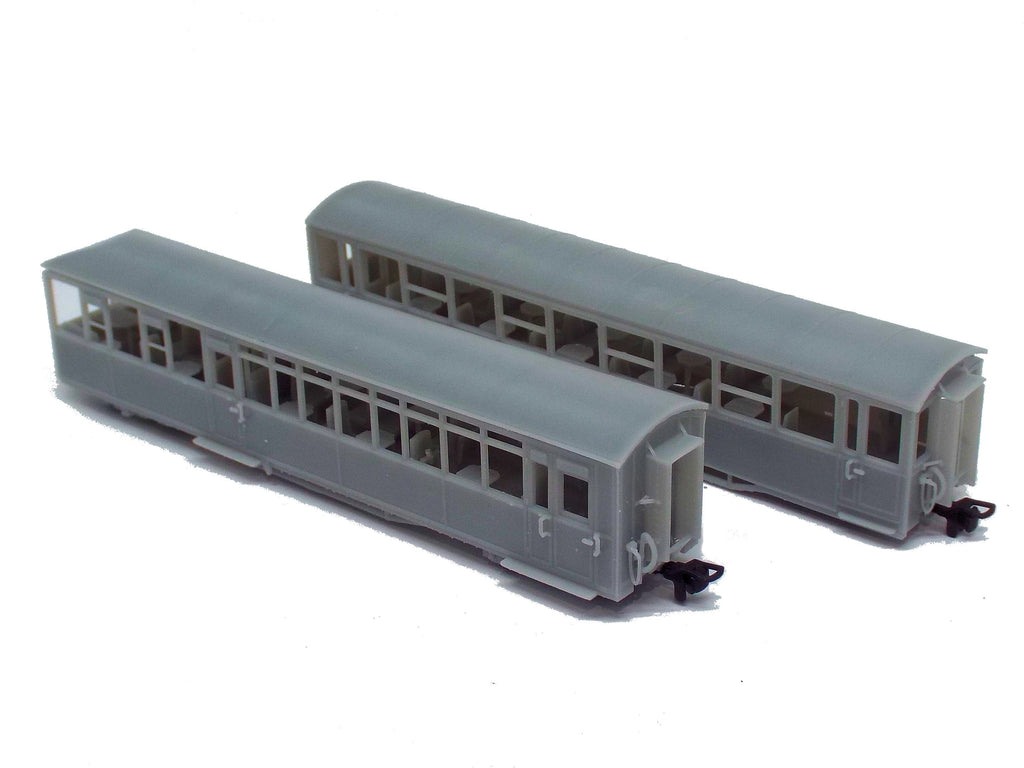

This is a highly detailed 4mm scale kit built using our in house machines, with High Definition resin and build layers just 50 microns (0.05mm) thick. Whilst there is 'stepping' visible on the parts up close, this is not discernible once the kit is painted and/or from usual viewing distances.

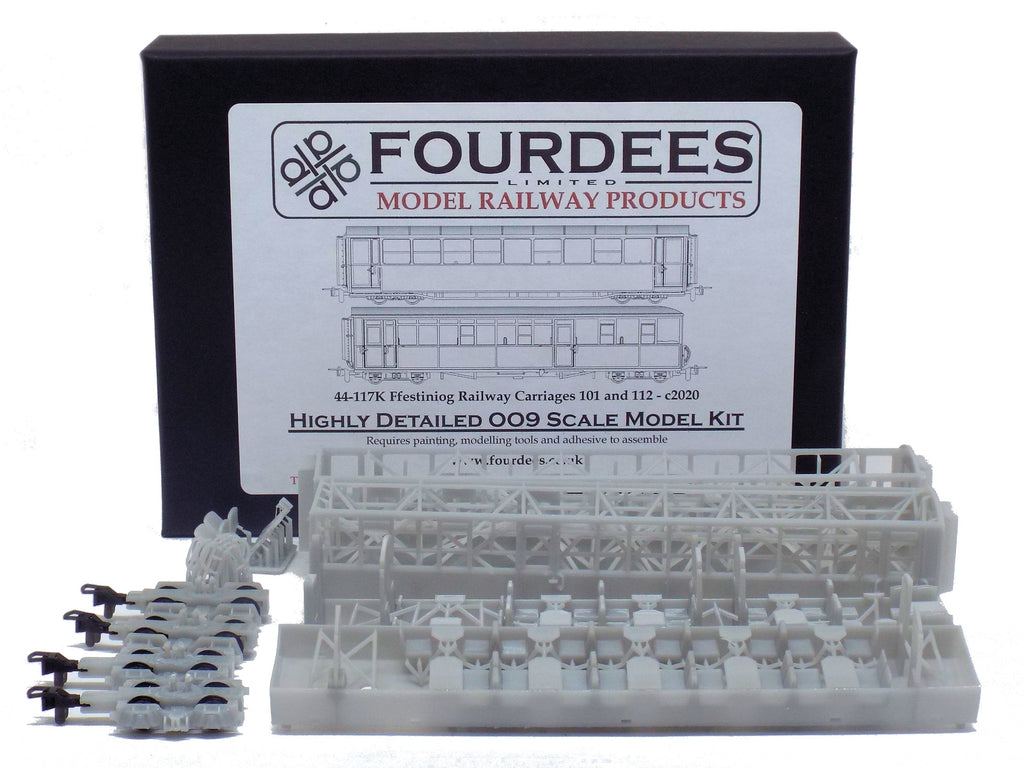

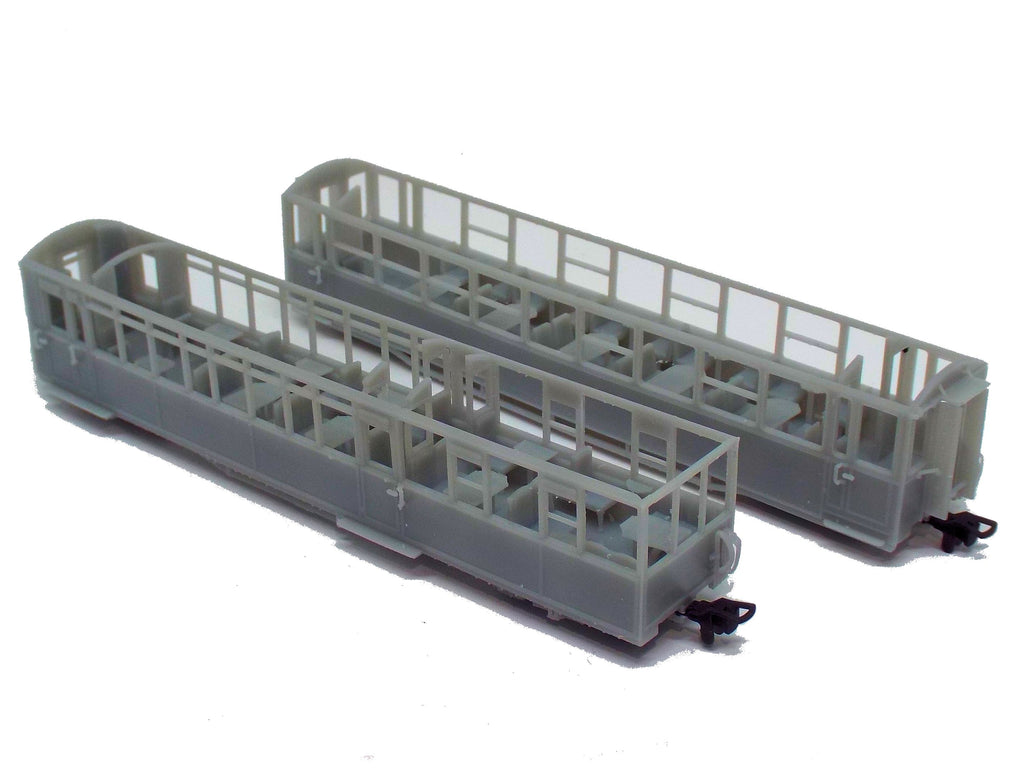

The parts have their main supports removed, though detailing and structural supports will remain to protect the parts in transit, and require removing prior to assembly. Some polishing and filing of the parts is required to provide a smooth finish.

Detailed resin bogies and PECO plastic wheelsets are included with the model. The bogies include NEM pockets with which accept the included resin OO9 couplings. For glazed vehicles, a clear perspex sheet is provided that can be cut to size before fitting.

Assembly

You will need modelling tools (such as a craft knife, cutting board, files and micro-drills), adhesive and paints to assemble and finish the kit.

Hints and Tips

Keep resin parts out of direct sunlight. Detailing and structural supports remain in order to protect the parts in transit, and should be removed before painting.

Parts will benefit from a wash in cool soapy water before painting, but do not leave them to soak. Alternative, Isopropyl alcohol is also a good cleaning solution if parts feel overly sticky.

If any components appear bent or warped, heat them gently with a hairdryer or in warm water (do not soak), and then hold parts whilst they cool.

If modifying the parts in any way (either by cutting, filing, sanding or drilling) be sure to wear appropriate protective clothing such as gloves and masks.

Product Specification

Model Dimensions

Length: 150 mm
Width: 29 mm
Height: 34 mm
Minimum radius: 12 in

Prototype Information

Manufacturer: Boston Lodge Works
Railway:
Ffestiniog Railway
Gauge:
2'
Era: 2010 - Present
