Graham Farish 08 Baguley Jack-Shaft Drive

Name: Graham Farish 08 Baguley Jack-Shaft Drive
Brand: Fourdees Shop
SKU: 41-601
Price: 24.99 GBP
Availability: OutOfStock

£24.99

Out of stock

Chassis Required: Graham Farish 08 chassis

Related products

This is a detailed scale model kit for adult collectors. Not for children under 14 years old.

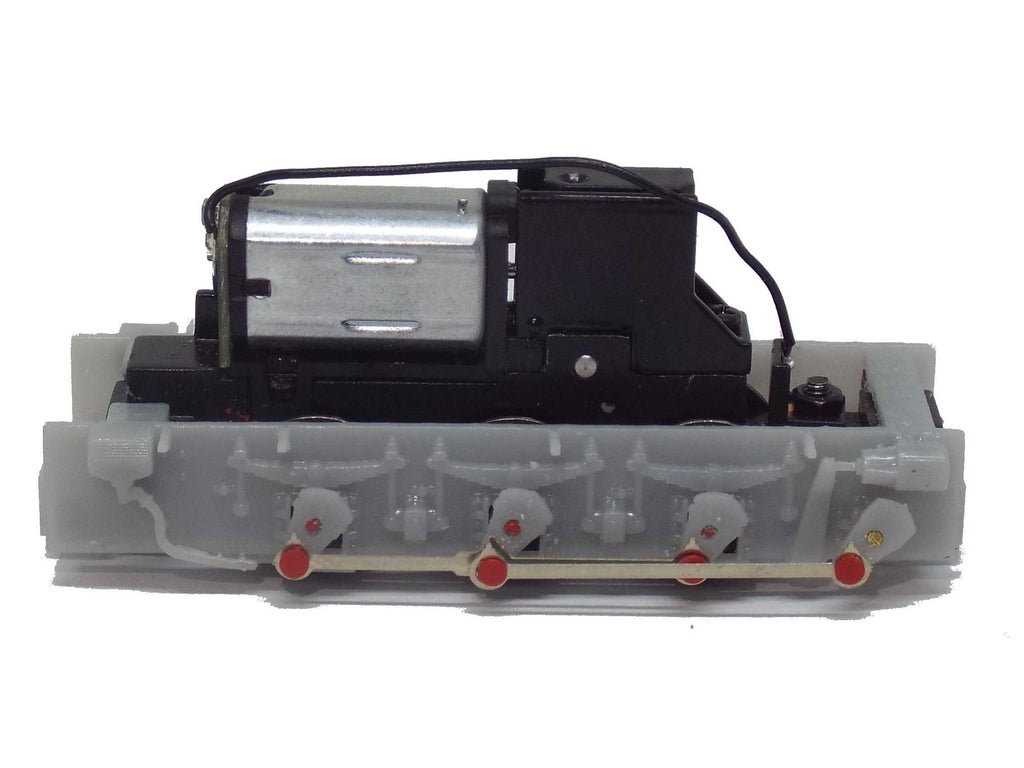

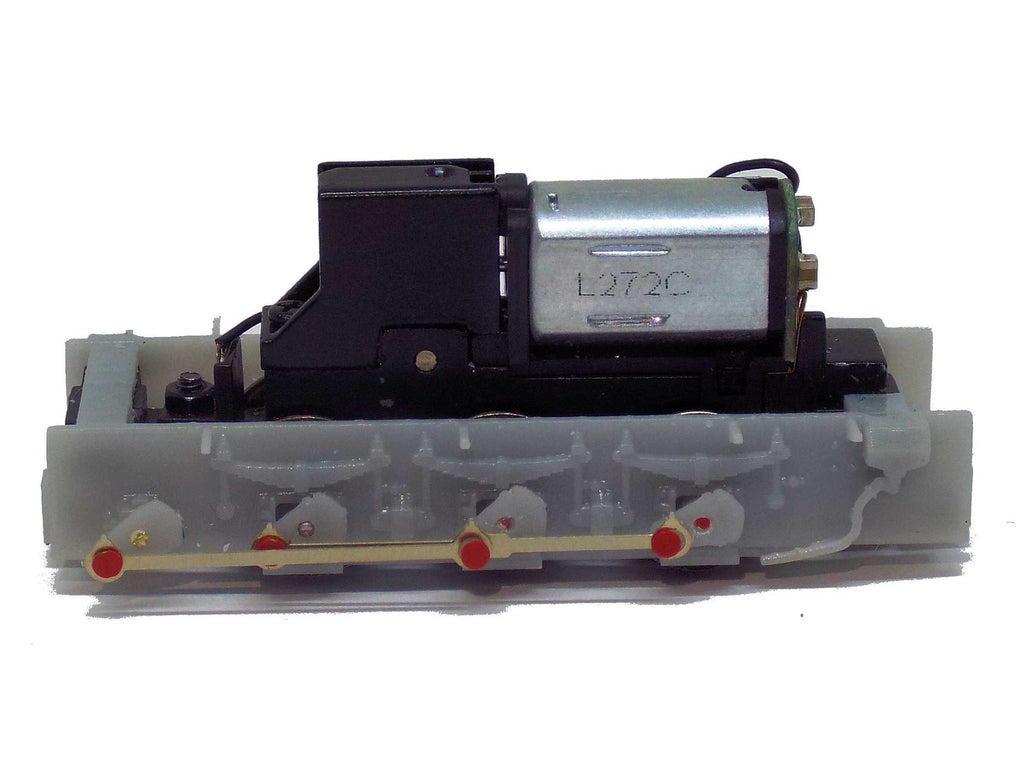

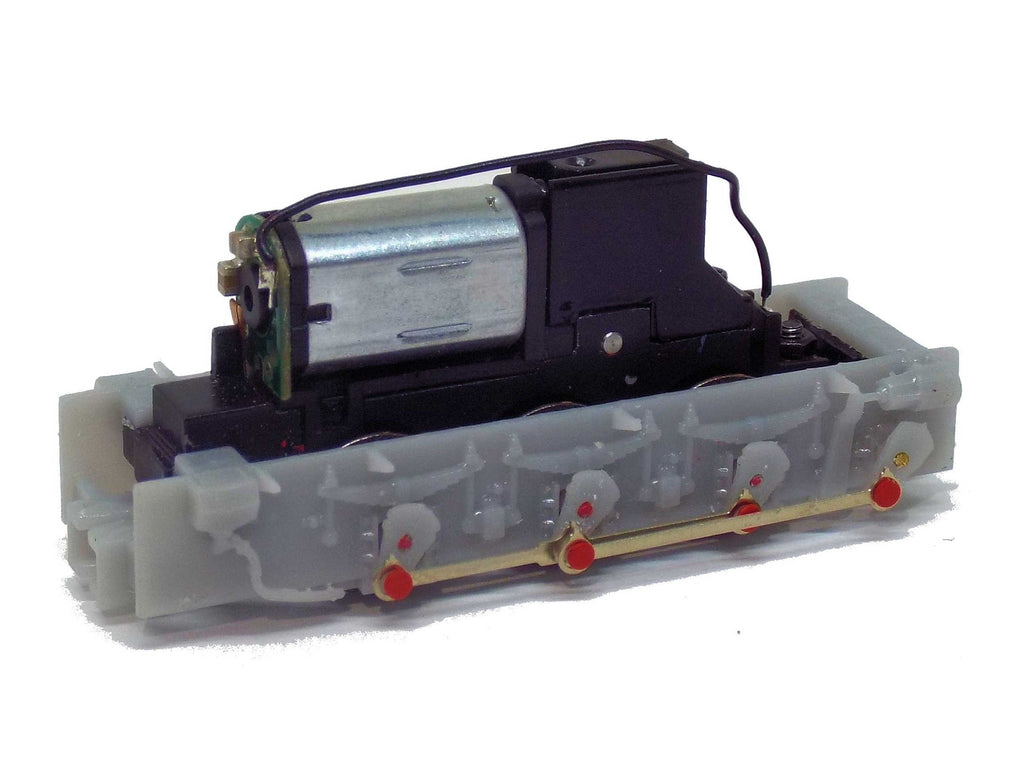

This is a kit of parts that can be used to convert a Graham Farish outside-frame 08 shunter chassis, into a representation of an OO9 Baguley-Drewry diesel frame with Jack-Shaft drive mechanism. This is an advanced kit, with many small parts required careful assembly. You will require modelling tools (such as a craft knife, cutting board, files and micro-drills) adhesive, paints and ballast material (such as Liquid Gravity) to assemble the kit. The kit requires a Graham Farish Class 08 Shunter Chassis (outside framed version) to complete, and can be used with any Fourdees Limited Baguley-Drewry model (not included).

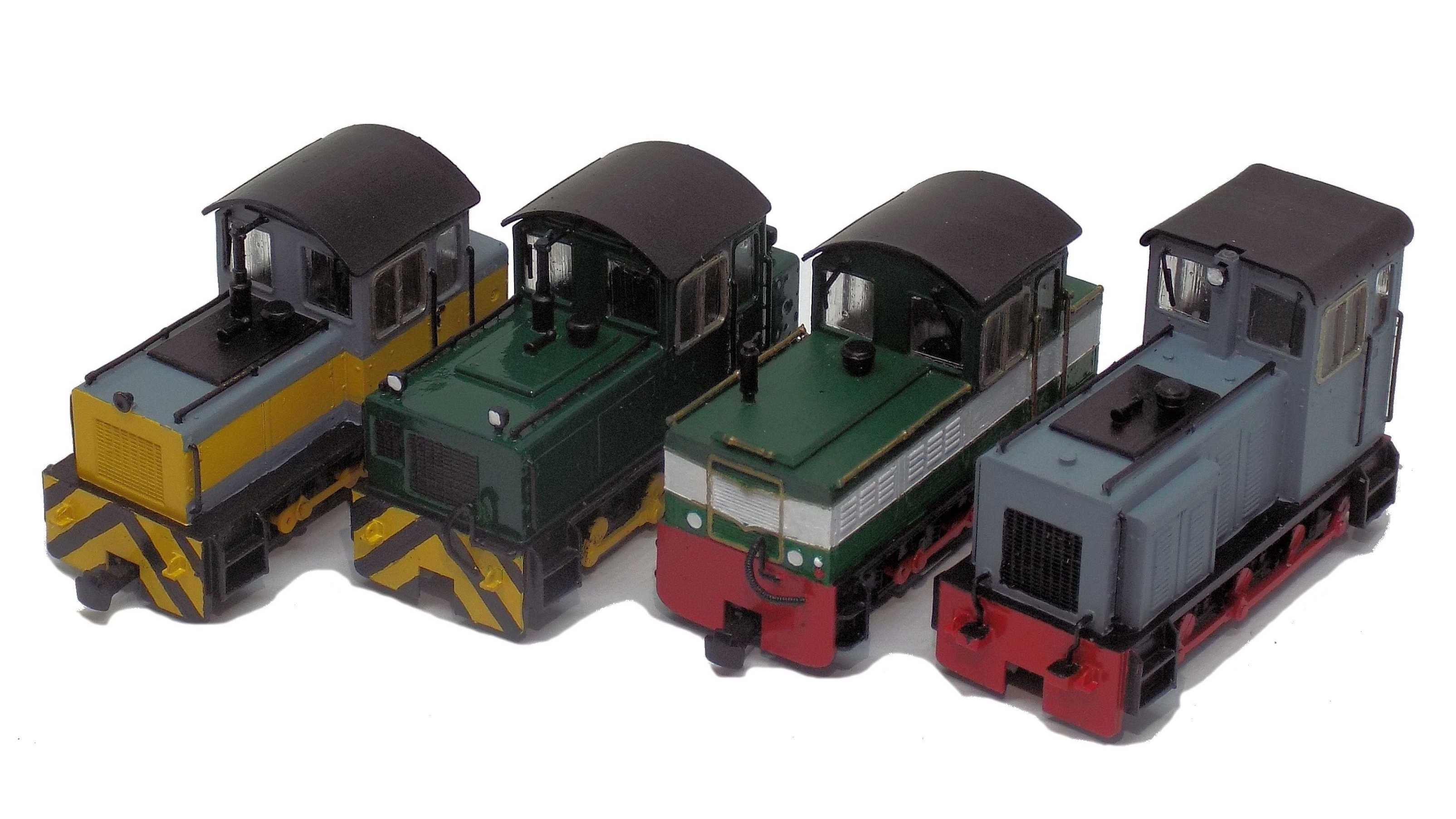

This chassis is designed to fit the Fourdees range of Baguley-Drewry models:

41-411 Harlech Castle - Era 1
41-412 Harlech Castle - Era 2
41-413 Criccieth Castle
41-415 Rheidol No.10

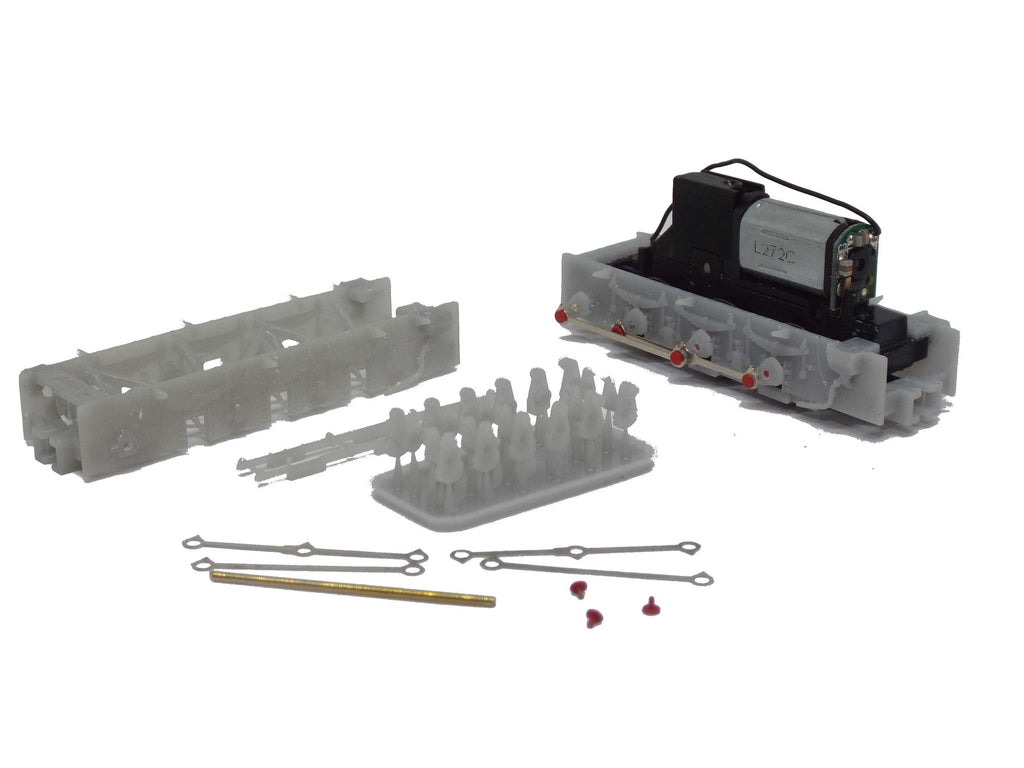

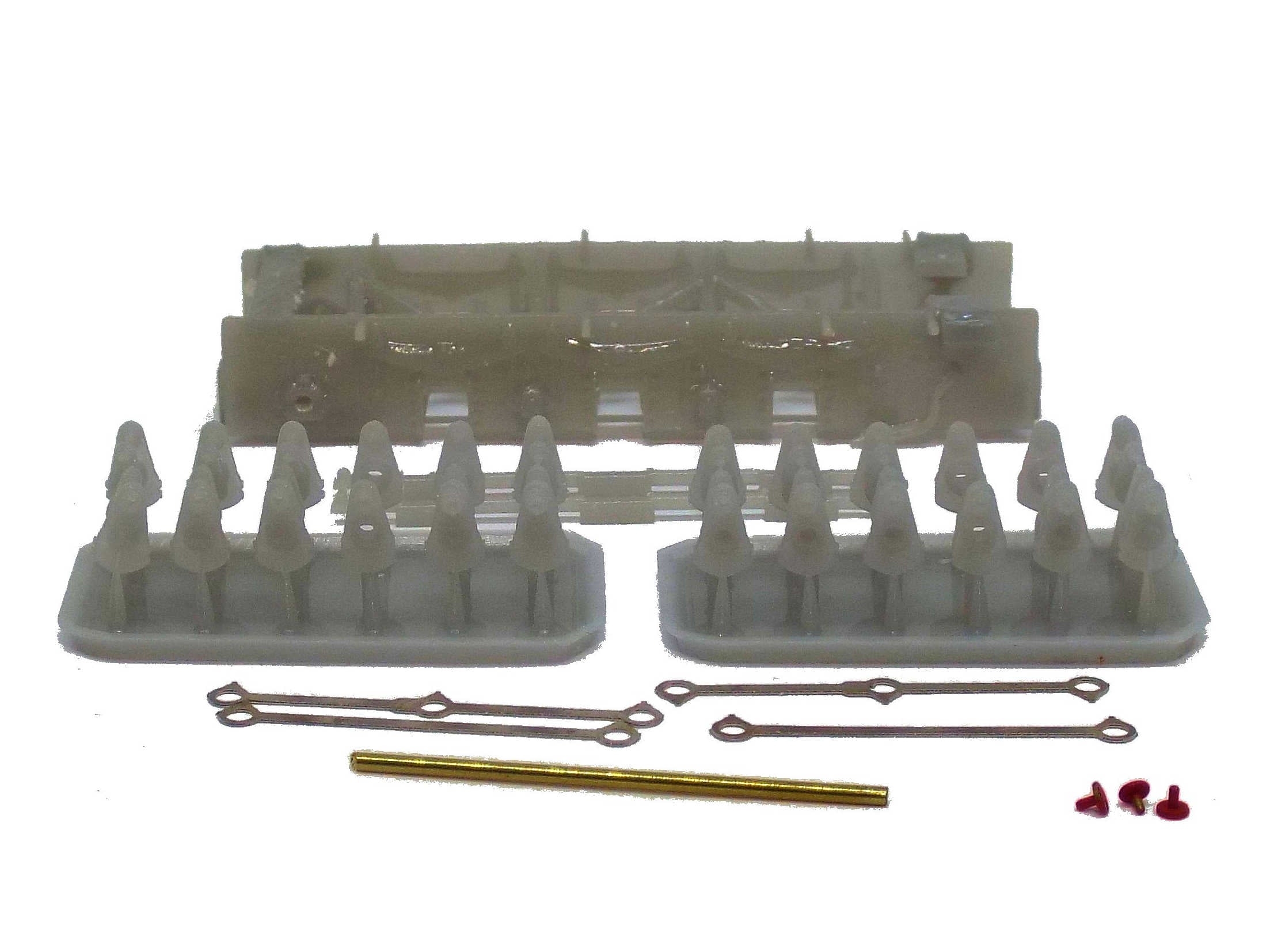

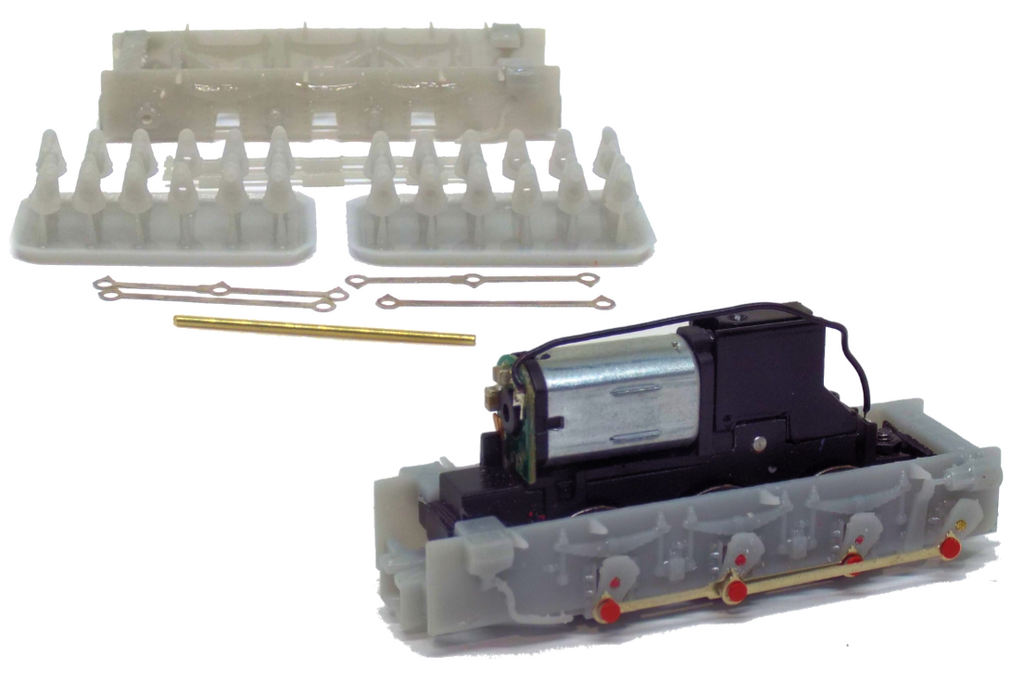

Included with the kit are:

Replacement chassis frames
Axle Stays
Flycranks (including spares)
Crankpins
Etch coupling and connecting rods
Brass axle

This is a highly detailed 4mm scale kit built using our in house machines, with High Definition resin and build layers just 50 microns (0.05mm) thick. Whilst there is 'stepping' visible on the parts up close, this is not discernible once the kit is painted and/or from usual viewing distances.

The parts have their main supports removed, though detailing and structural supports will remain to protect the parts in transit, and require removing prior to assembly. Some polishing and filing of the parts is required to provide a smooth finish. Clear (and varnished) resin windows are included, though you may wish to use clear plastic sheet (not included) if preferred.

You will need modelling tools (such as a craft knife, cutting board, files and micro-drills) adhesive, paints and ballast material (such as Liquid Gravity) to assemble the kit.

This kit requires a Graham Farish 08 chassis to apply the upgrade. Consult instructions for steps required.

Keep resin parts out of direct sunlight. Detailing and structural supports remain in order to protect the parts in transit, and should be removed before painting.

Parts will benefit from a wash in cool soapy water before painting, but do not leave them to soak. Alternative, Isopropyl alcohol is also a good cleaning solution if parts feel overly sticky.

If any components appear bent or warped, heat them gently with a hairdryer or in warm water (do not soak), and then hold parts whilst they cool.

If modifying the parts in any way (either by cutting, filing, sanding or drilling) be sure to wear appropriate protective clothing such as gloves and masks.
