Product Specification
Model Dimensions
Length: 90 mm (over coupling)
Width: 29 mm
Height: 40 mm (over whistle)
Minimum radius:
Prototype Information
Manufacturer: Peckett & Sons
Railway: Freelance
Gauge: 2'
Era: 1940s - present
Norton
£59.99
Skip to product information
Related products
This is a detailed scale model kit for adult collectors. Not for children under 14 years old.

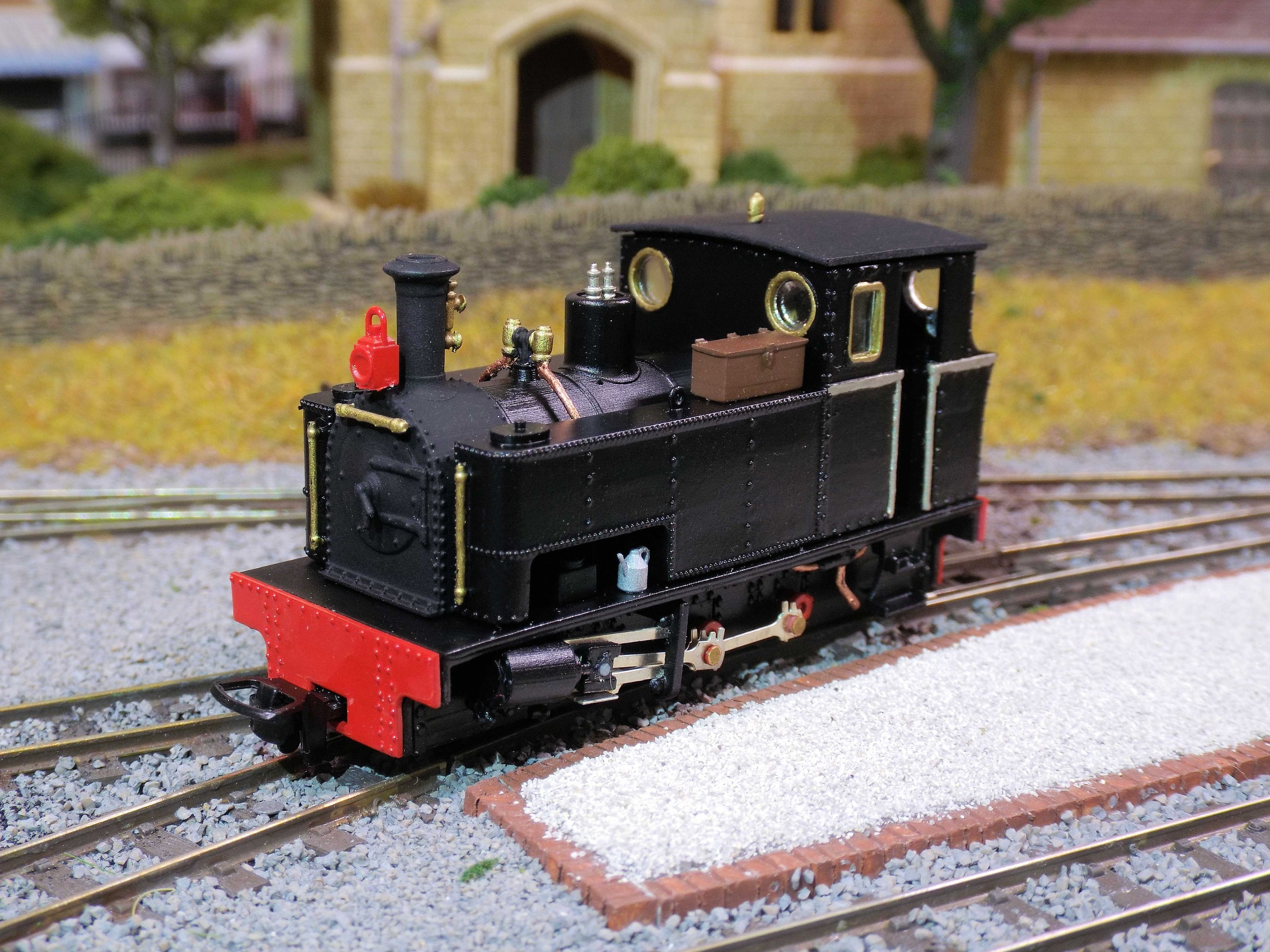

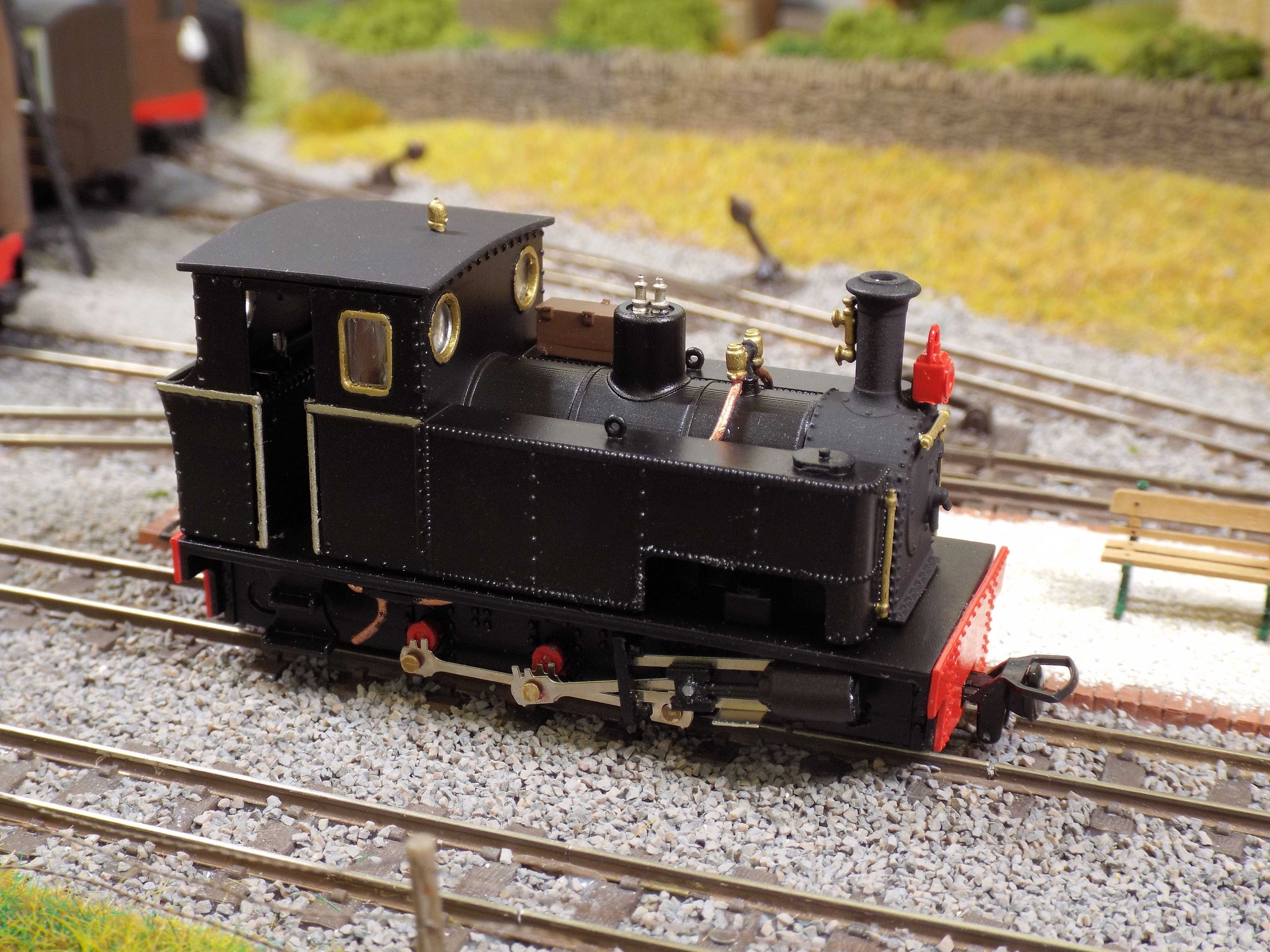

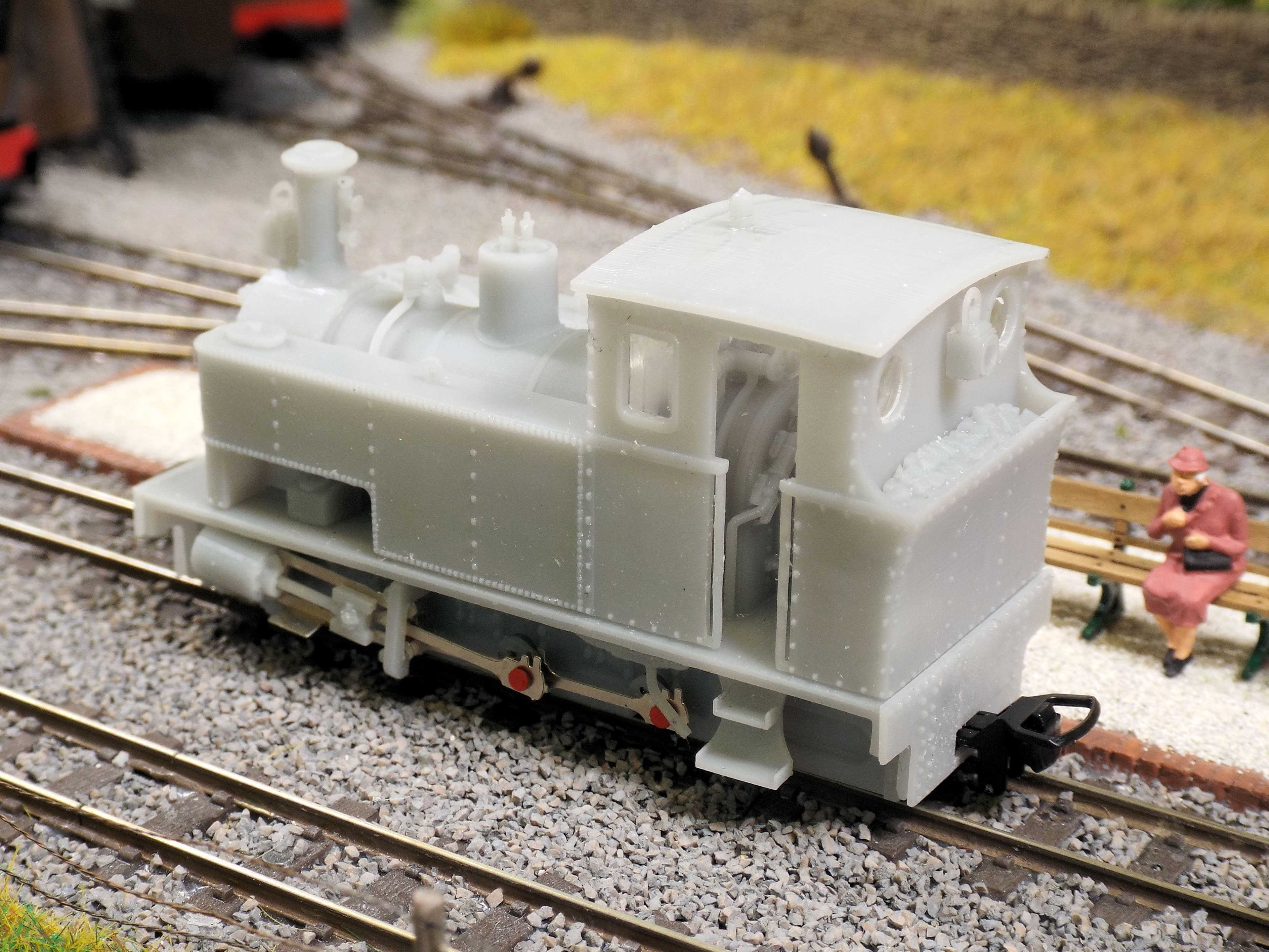

This model kit is of a freelance steam locomotive, inspired by similar locomotives built by Peckett & Sons. The design has a similar boiler, frame and chassis to "Atlas" and "St George" in this range, but has a tank and cab profile inspired by "Norbury" built for the Lodge Hill and Upnor Railway.
The model includes all parts required to assemble working outside-framed motion, including accurate replacement flycranks.

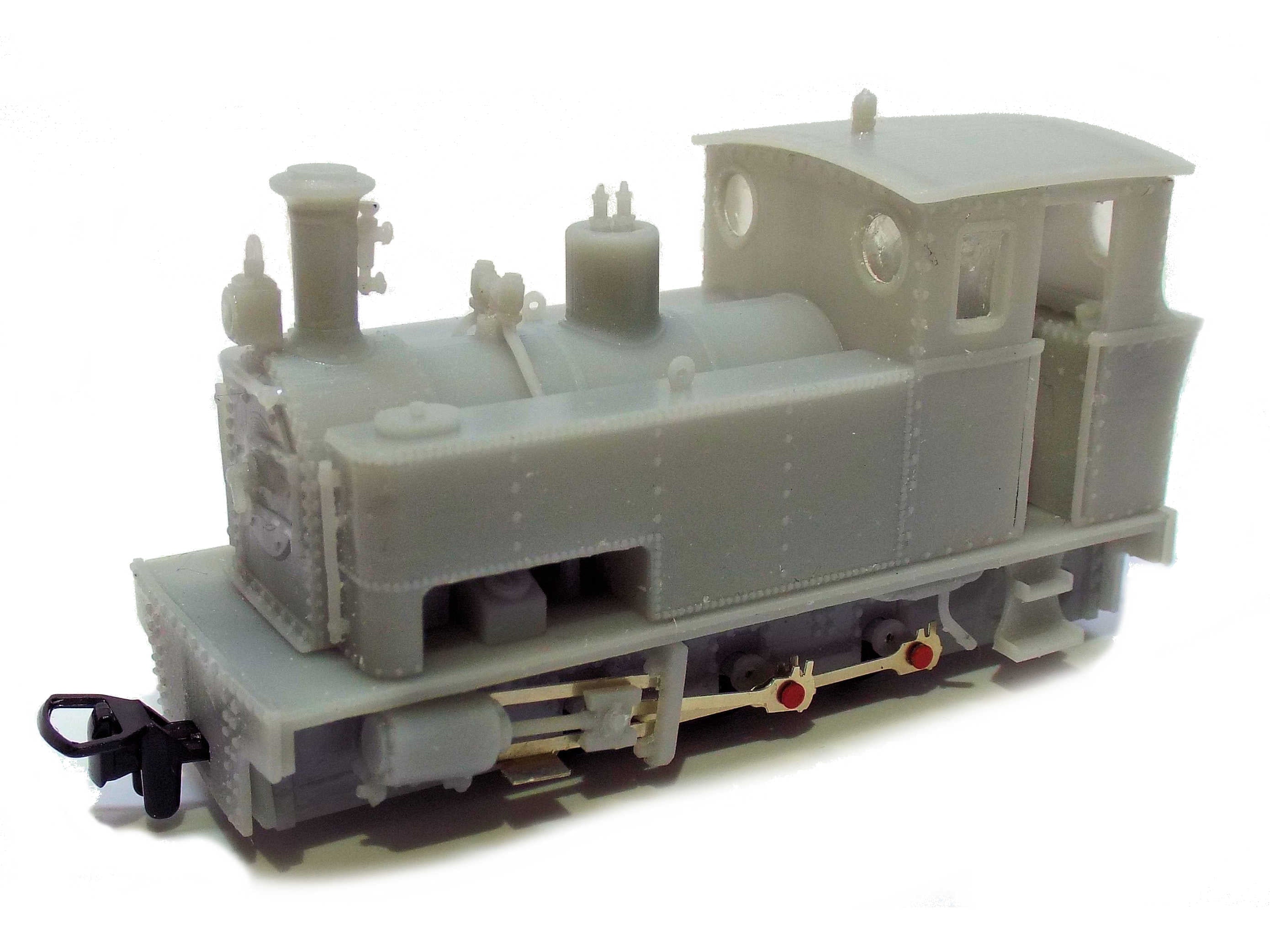

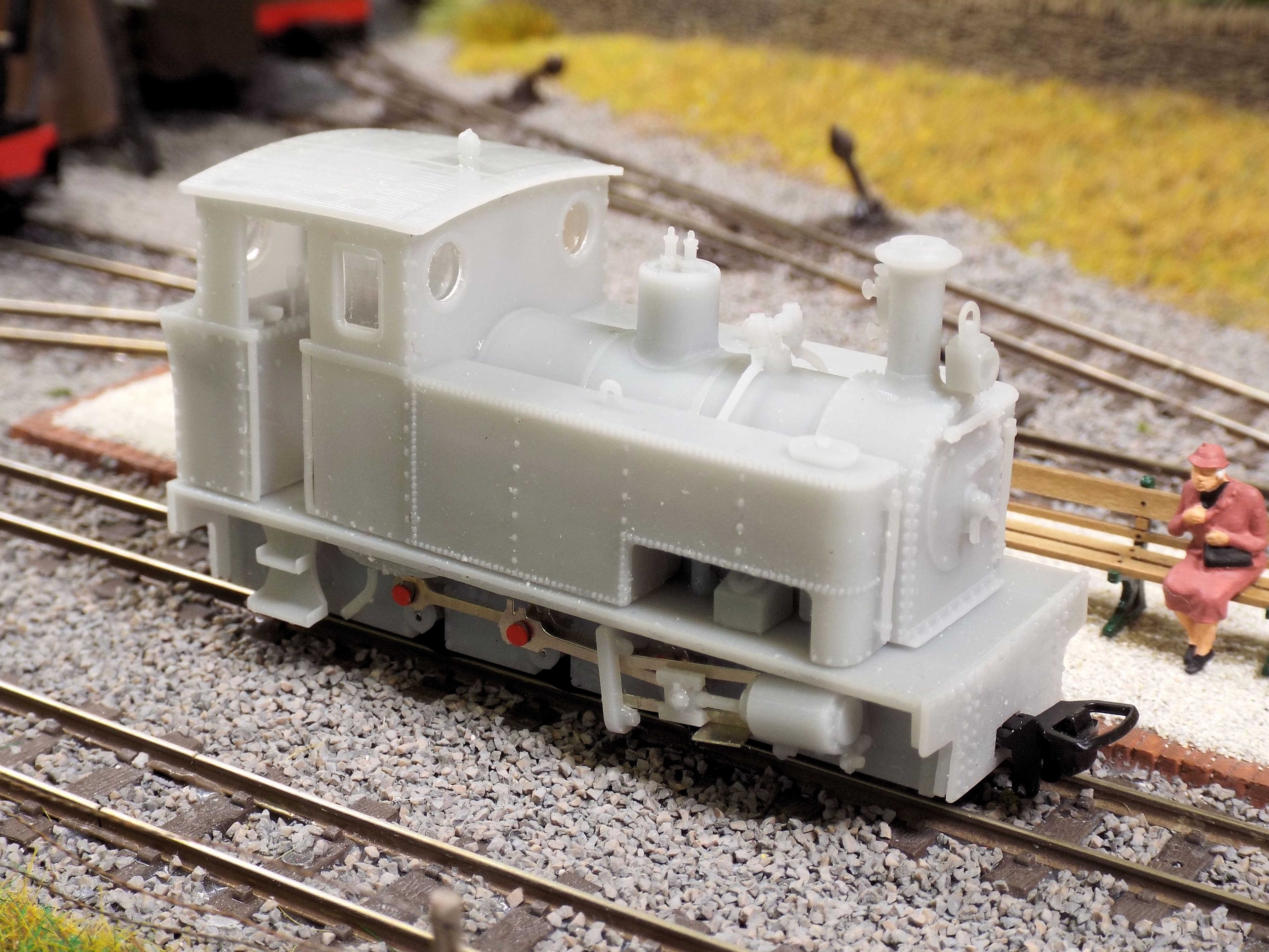

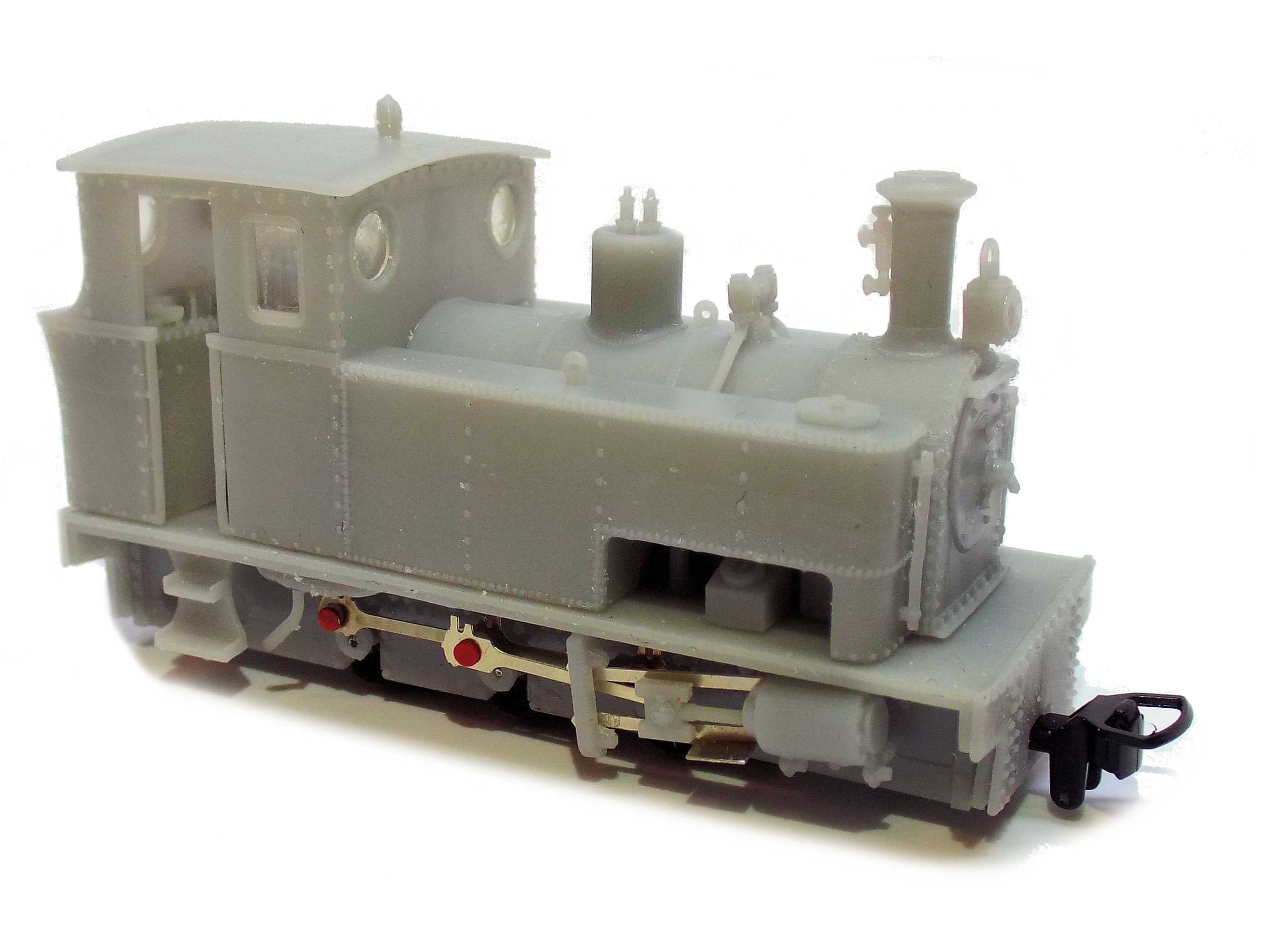

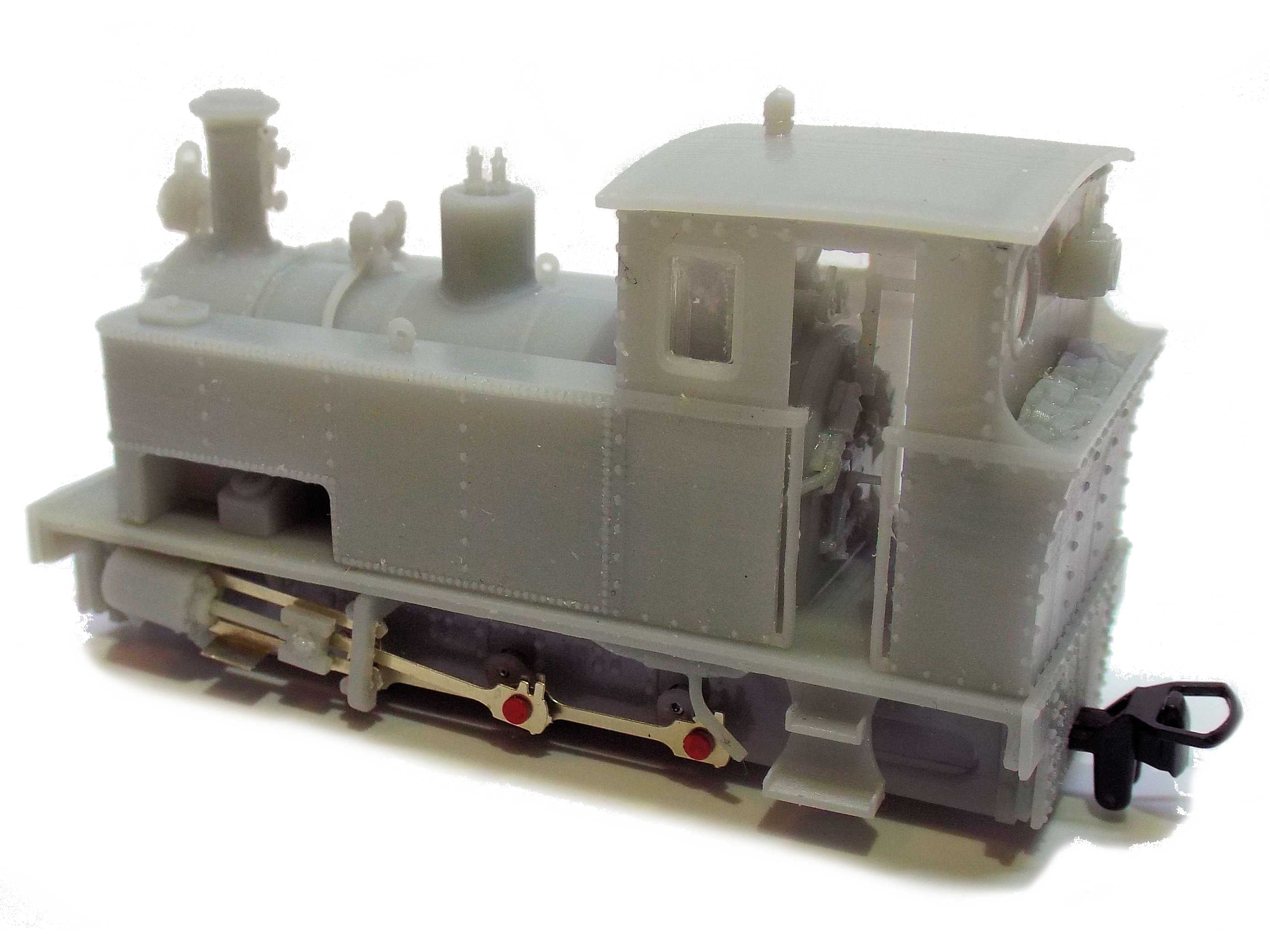

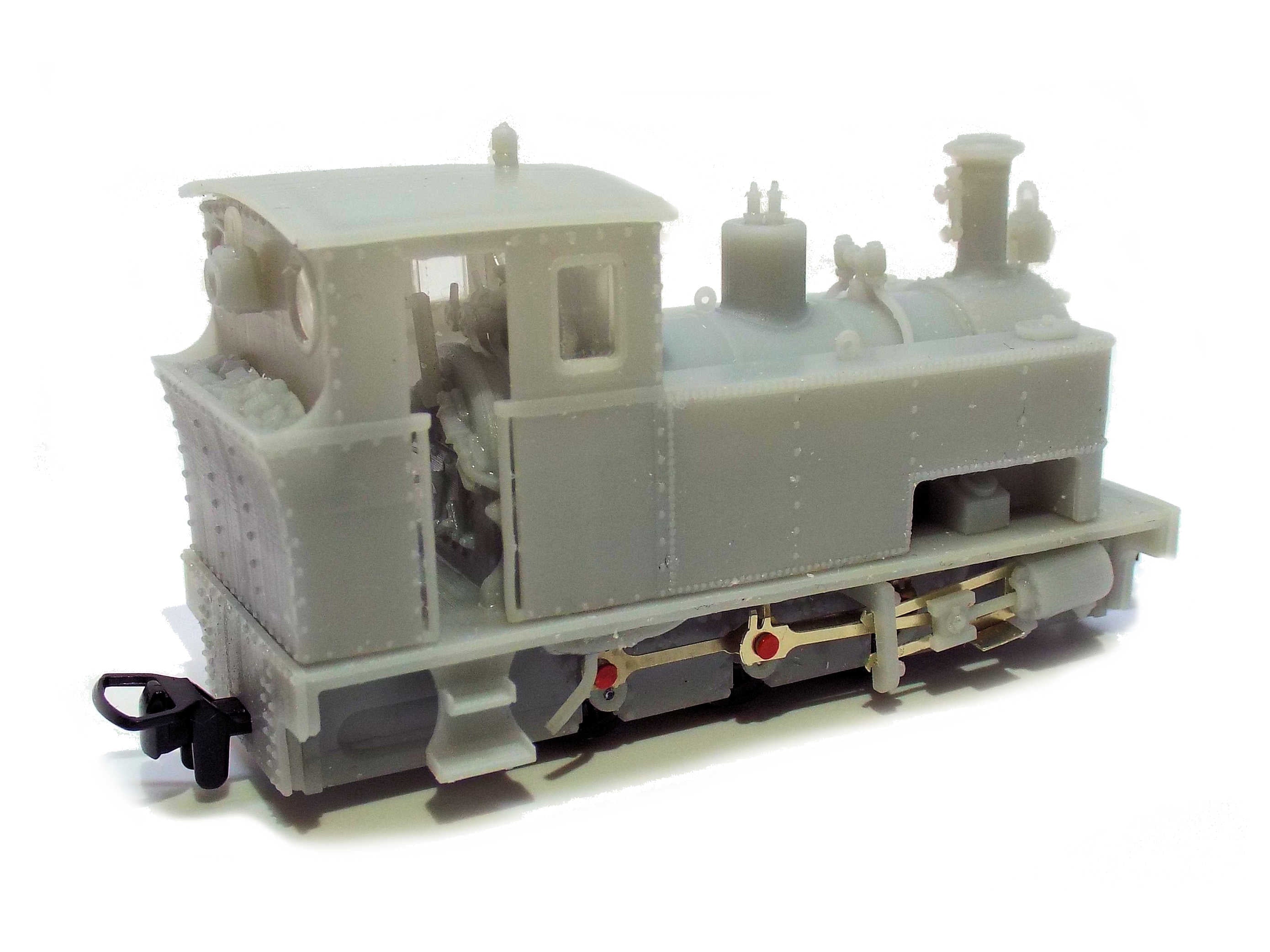

This kit has been printed in new HD resin, which is darker in finish to the parts shown in the photographs.

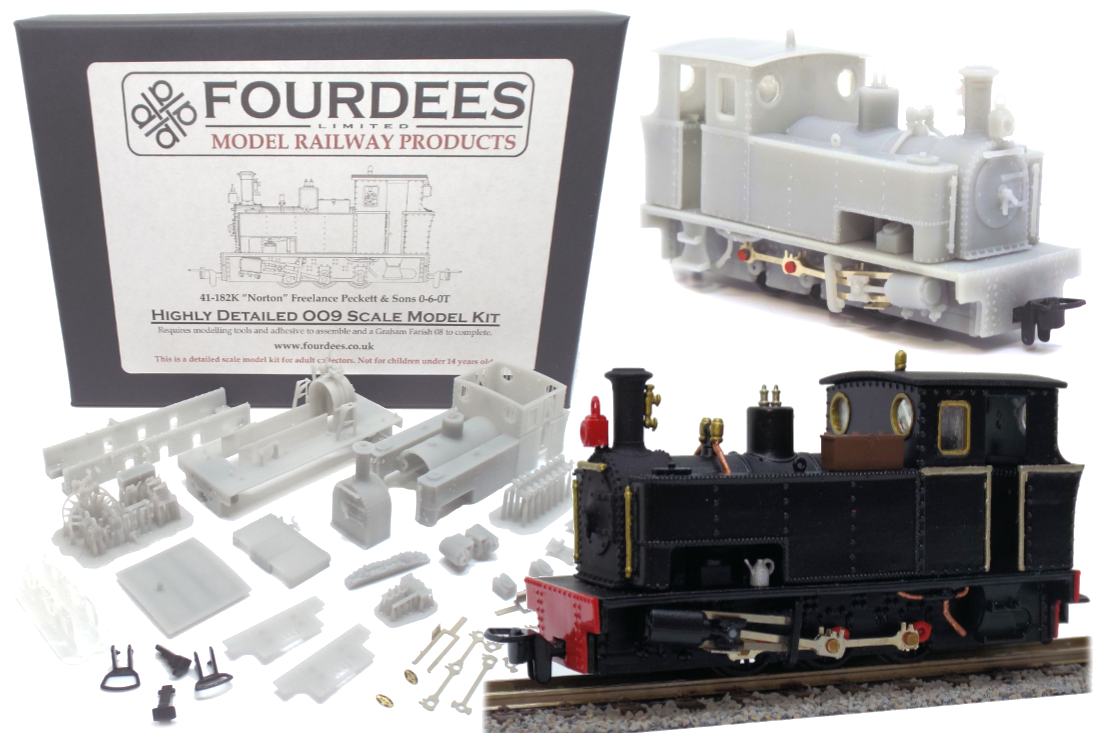

This is an intermediate kit. The body is in a single piece, with roof and cab interior to fit. The Graham Farish 08 chassis requires some modification to complete, in this case replacing the frames and all the motion and flycranks. There is no valve gear, and the only delicate component is the crosshead and coupling-rod assembly.
Manufacturing
This is a highly detailed 4mm scale kit built using our in house machines, with High Definition resin and build layers just 50 microns (0.05mm) thick. Whilst there is 'stepping' visible on the parts up close, this is not discernible once the kit is painted and/or from usual viewing distances.
The parts have their main supports removed, though detailing and structural supports will remain to protect the parts in transit, and require removing prior to assembly. Some polishing and filing of the parts is required to provide a smooth finish. Clear (and varnished) resin windows are included, though you may wish to use clear plastic sheet (not included) if preferred.
Assembly
You will need modelling tools (such as a craft knife, cutting board, files and micro-drills) adhesive, paints and ballast material (such as Liquid Gravity) to assemble the kit.
This kit requires a GRAHAM FARISH 08 chassis to motorise the finished model. Consult instructions to see if the chassis needs any modification before fitting.
Hints and Tips
Keep resin parts out of direct sunlight. Detailing and structural supports remain in order to protect the parts in transit, and should be removed before painting.
Parts will benefit from a wash in cool soapy water before painting, but do not leave them to soak. Alternative, Isopropyl alcohol is also a good cleaning solution if parts feel overly sticky.
If any components appear bent or warped, heat them gently with a hairdryer or in warm water (do not soak), and then hold parts whilst they cool.
If modifying the parts in any way (either by cutting, filing, sanding or drilling) be sure to wear appropriate protective clothing such as gloves and masks.
