This is a detailed scale model kit for adult collectors. Not for children under 14 years old.
Orenstein & Koppel were a German manufacturer which built thousands of locomotives for domestic and internation use, with many examples making their way to the UK both pre and post the railway preservation era.

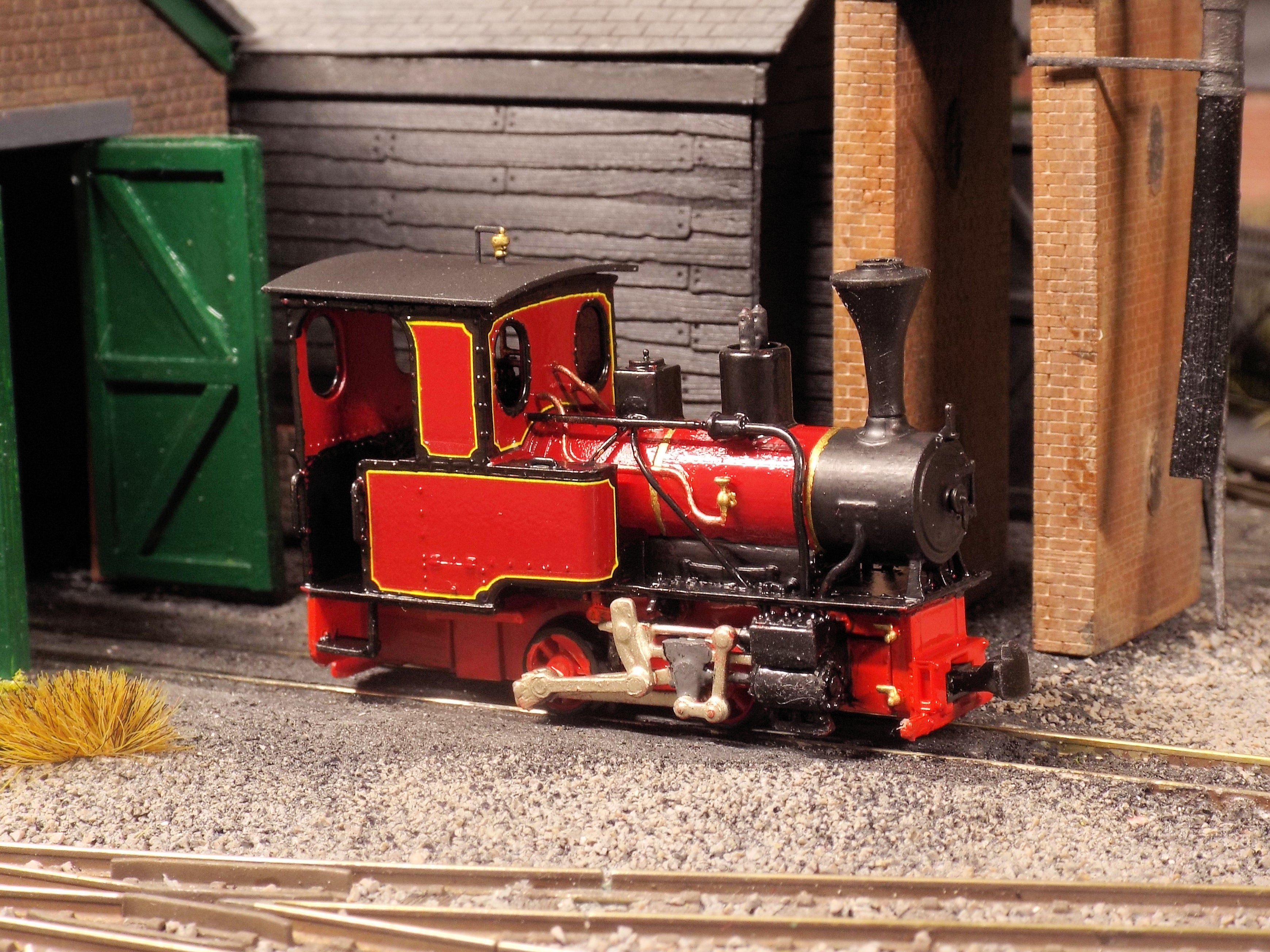

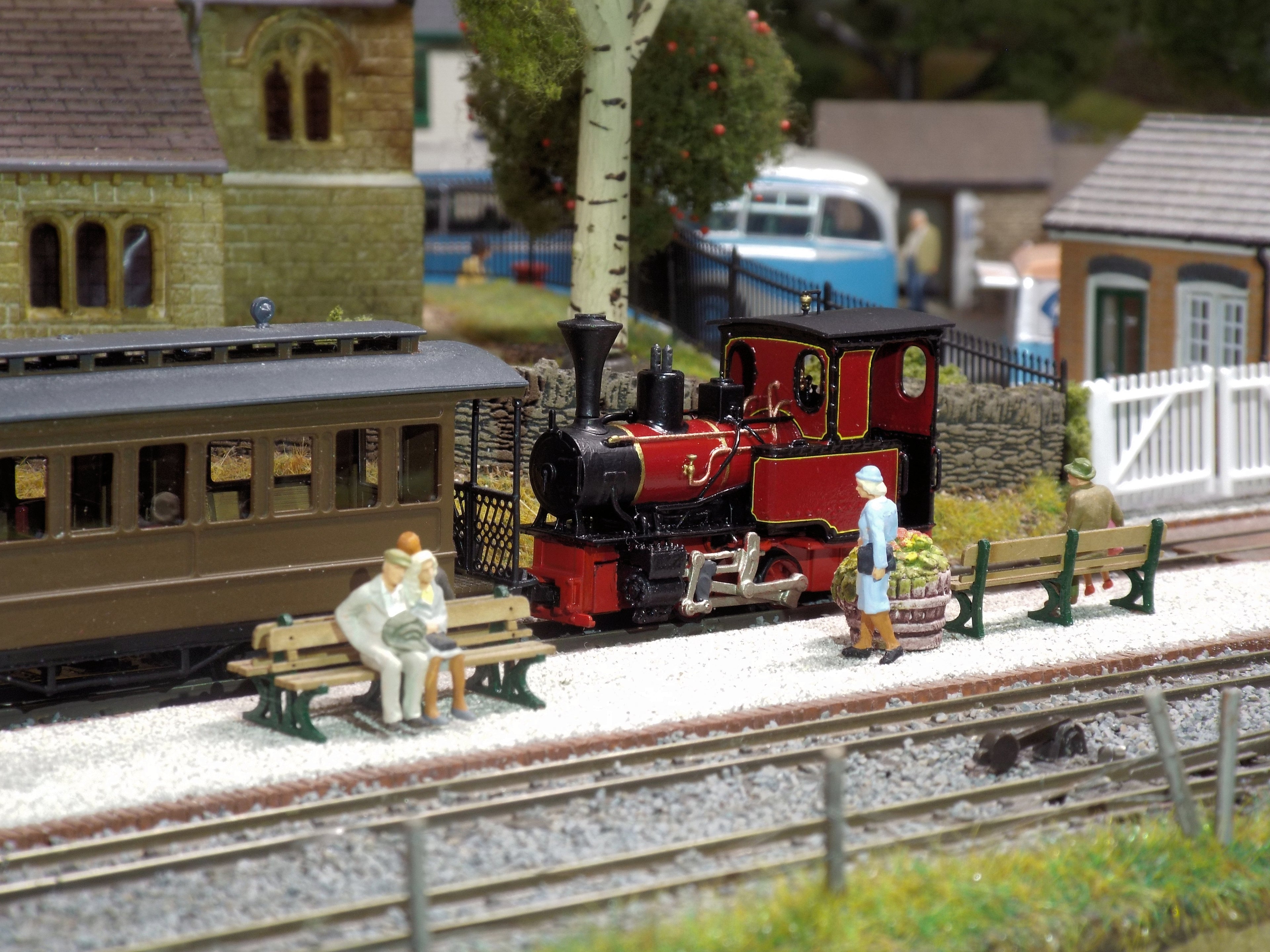

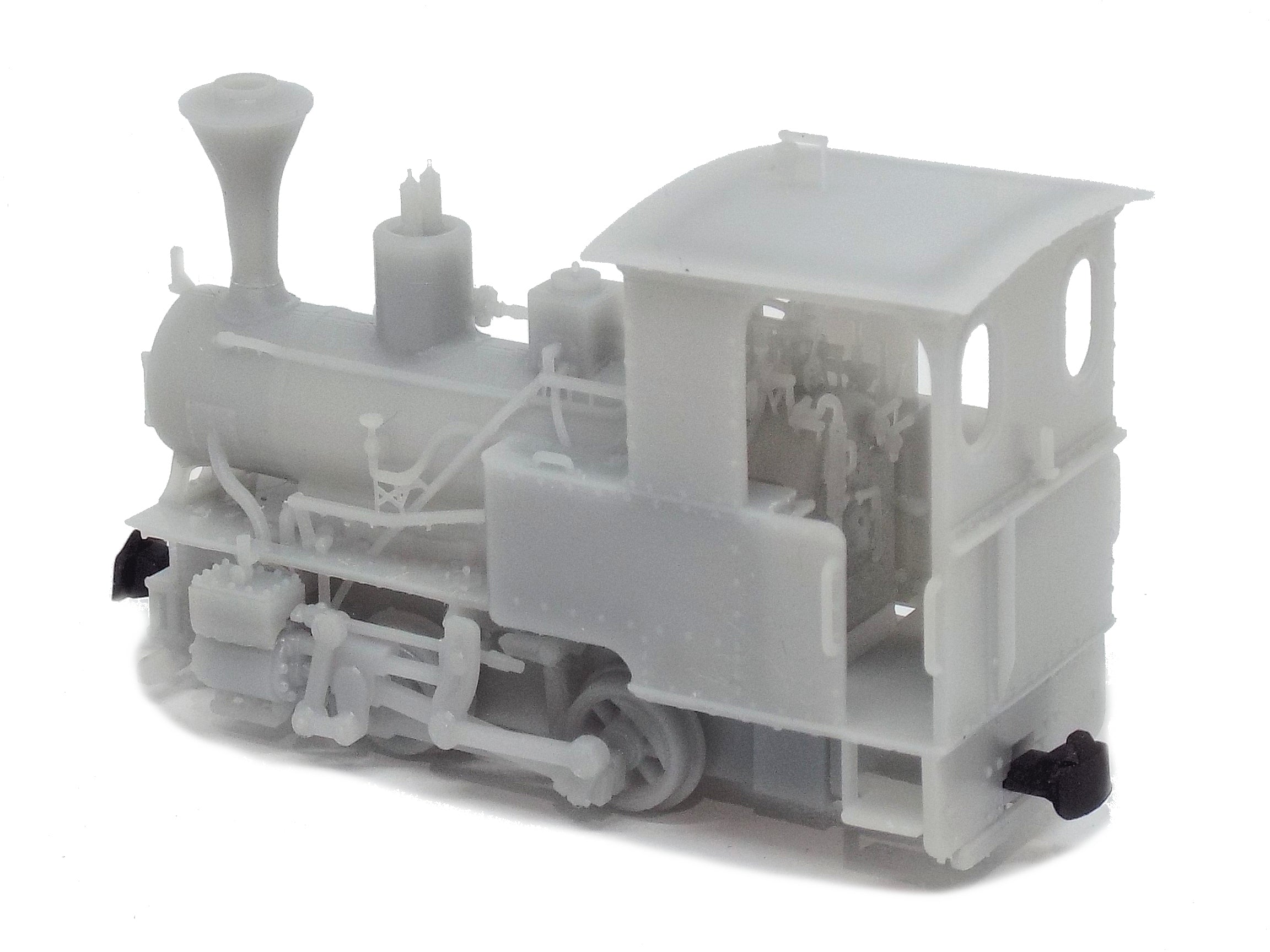

OTTO is inspired by their standard 50 HP 0-4-0WT design, an example of which can be found at the Bregdar and Wormshill Railway - Helga. The model depicts an as-built machine, with both injectors placed beside the manifold within the cab. These are on a separately fitted boiler backhead, for ease of painting. The distinctive right-hand-side regulator valve and steam feed pipes are key characteristics of these machines, along with the narrow running frame forward of the tanks, and oval cab spectacles.
The model comes with a Static Chassis that can be used for display, alternatively it can be motorised with a Bachmann N-Scale Percy chassis (not included). The valve chests can also be removed in order for the kit to fit a Percy chassis with our valve gear upgrade kit fitted (not included).

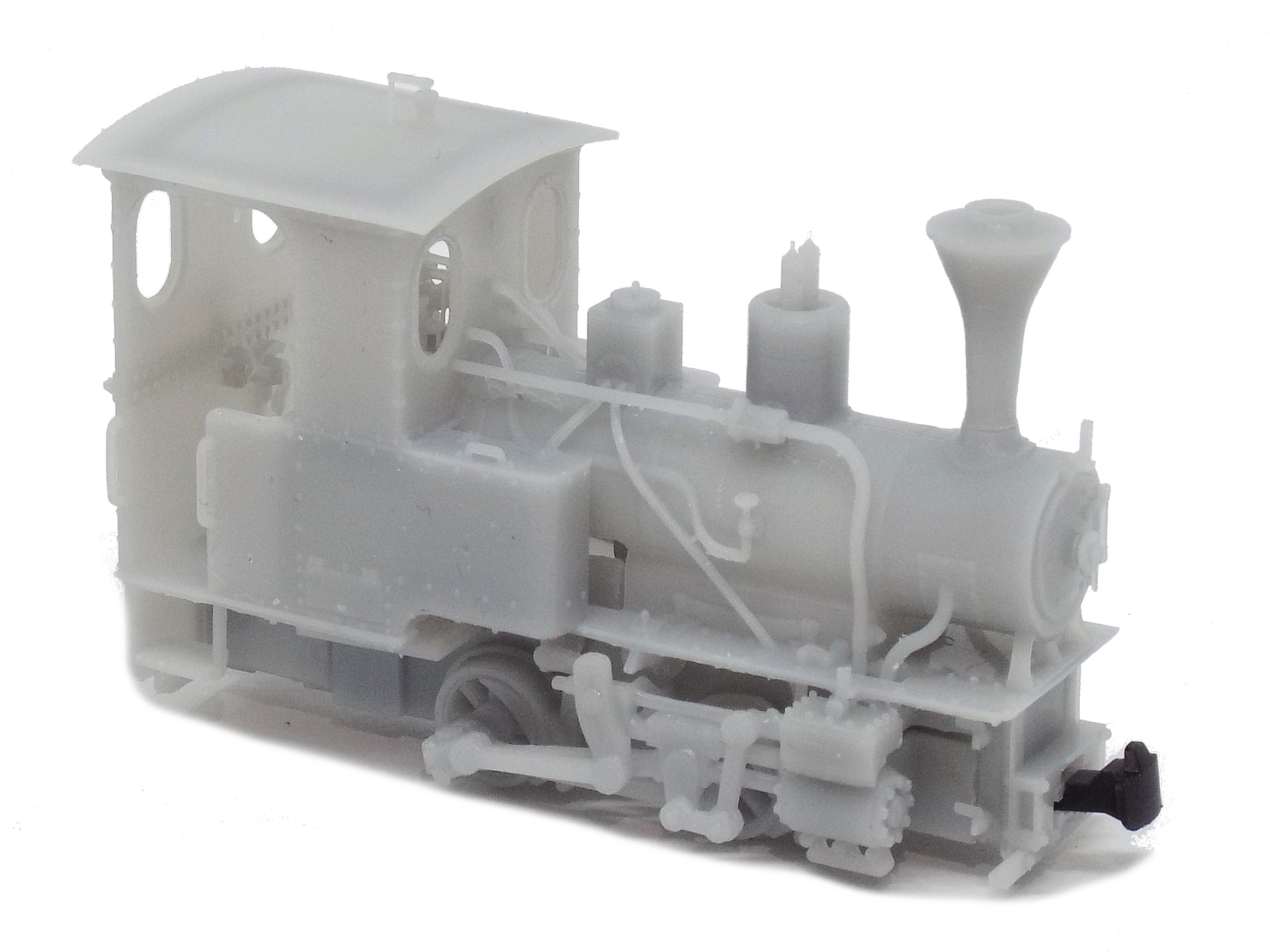

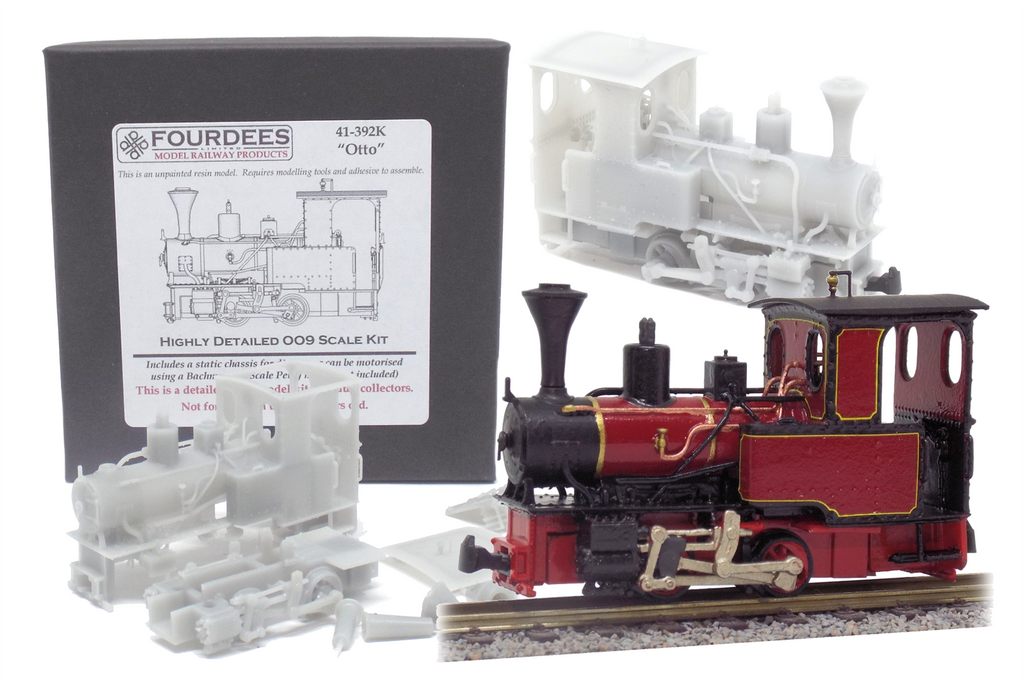

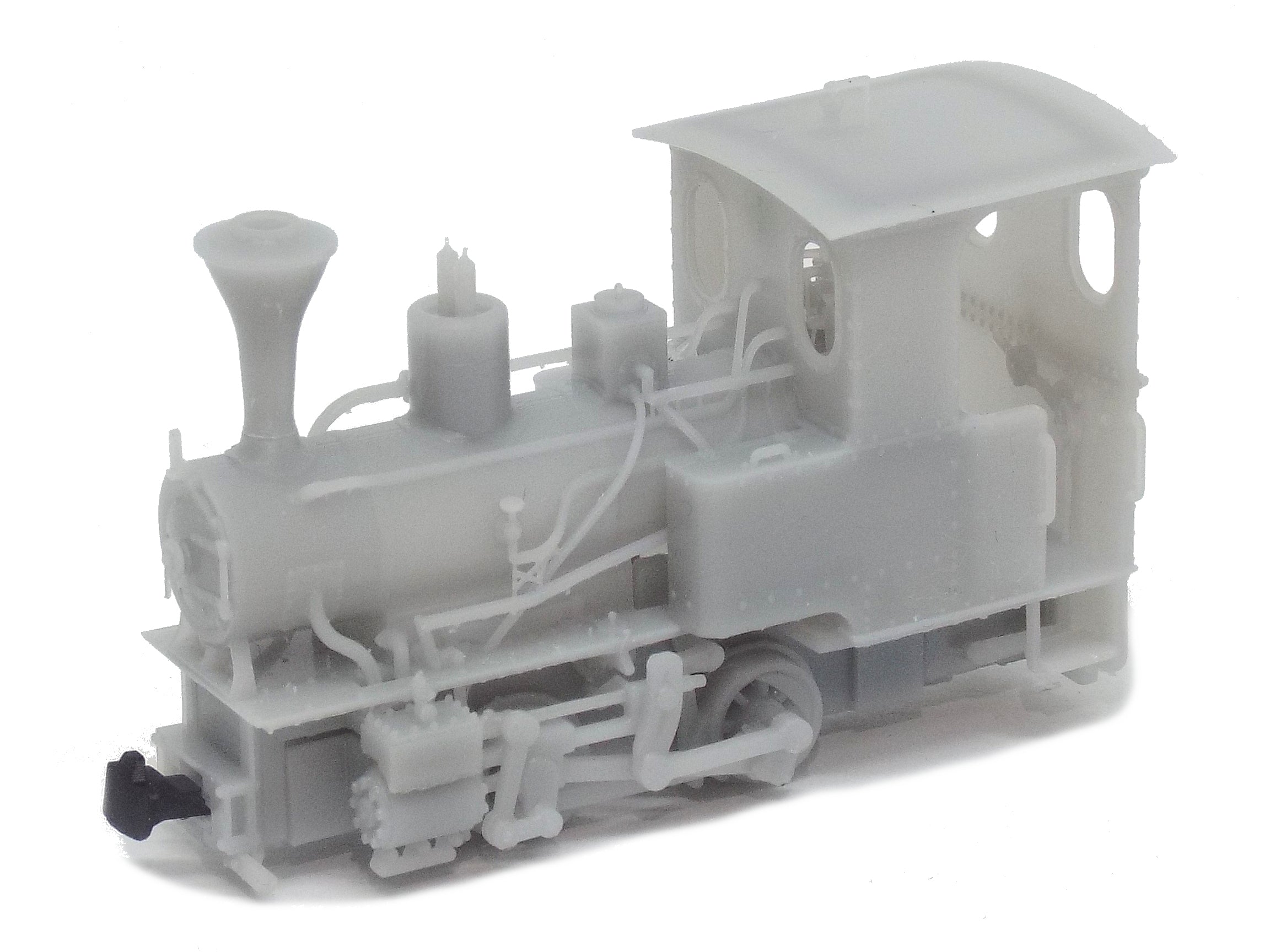

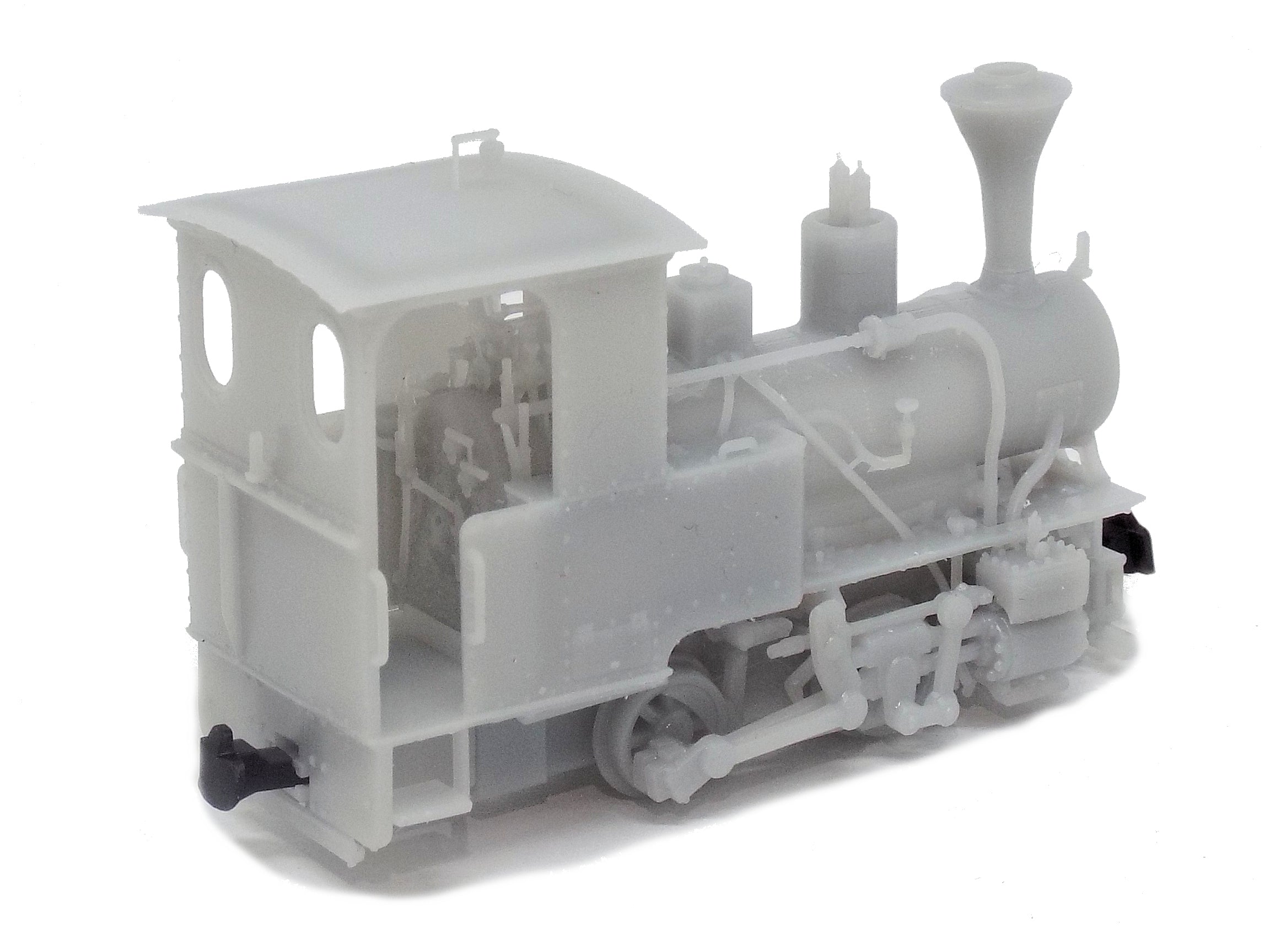

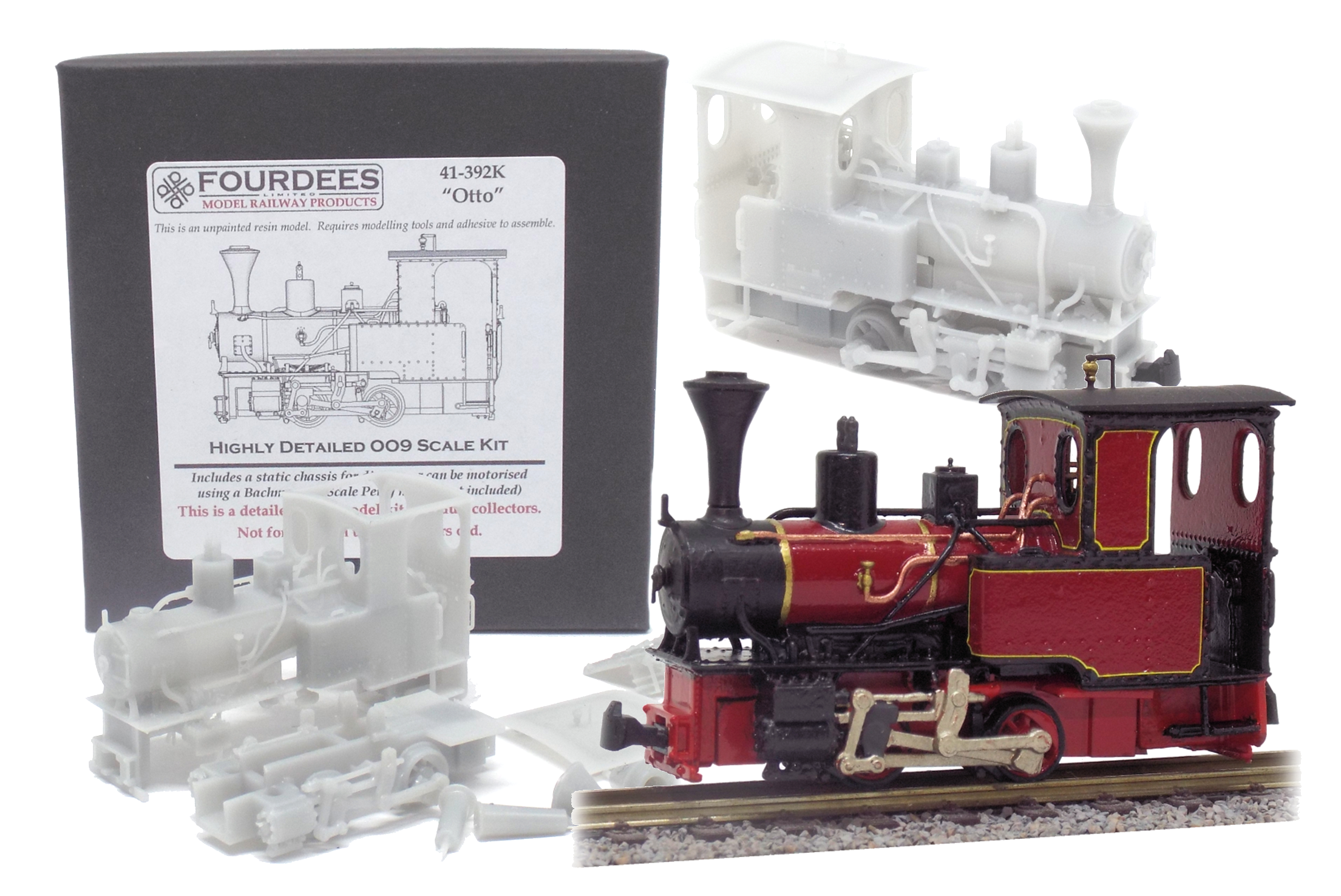

This is a beginner's kit, and comprises a single large body shell, with separate cab roof, boiler backhead and a selection of detailing components with which to personalise the model. A choice of four chimneys is included, with traditional, stovepipe, spark-arrestor and O&K profiles.
This is a highly detailed 4mm scale kit built using our in house machines, with High Definition resin and build layers just 50 microns (0.05mm) thick. Whilst there is 'stepping' visible on the parts up close, this is not discernible once the kit is painted and/or from usual viewing distances.
The parts have their main supports removed, though detailing and structural supports will remain to protect the parts in transit, and require removing prior to assembly. Some polishing and filing of the parts is required to provide a smooth finish. Clear (and varnished) resin windows are included, though you may wish to use clear plastic sheet (not included) if preferred.
You will need modelling tools (such as a craft knife, cutting board, files and micro-drills) adhesive, paints and ballast material (such as Liquid Gravity) to assemble the kit.
This kit requires a BACHMANN TRAINS Percy to motorise the finished model. Consult instructions to see if the chassis needs any modification before fitting.
Keep resin parts out of direct sunlight. Detailing and structural supports remain in order to protect the parts in transit, and should be removed before painting.
Parts will benefit from a wash in cool soapy water before painting, but do not leave them to soak. Alternative, Isopropyl alcohol is also a good cleaning solution if parts feel overly sticky.
If any components appear bent or warped, heat them gently with a hairdryer or in warm water (do not soak), and then hold parts whilst they cool.
If modifying the parts in any way (either by cutting, filing, sanding or drilling) be sure to wear appropriate protective clothing such as gloves and masks.
Length: 65 mm (over coupling)
Width: 21 mm
Height: 38 mm (over whistle)
Minimum radius:
Manufacturer: Orenstein and Koppel
Railway: Various domestic and continental industrial and mainline railways
Gauge: 2'
Era: 1900s - present
