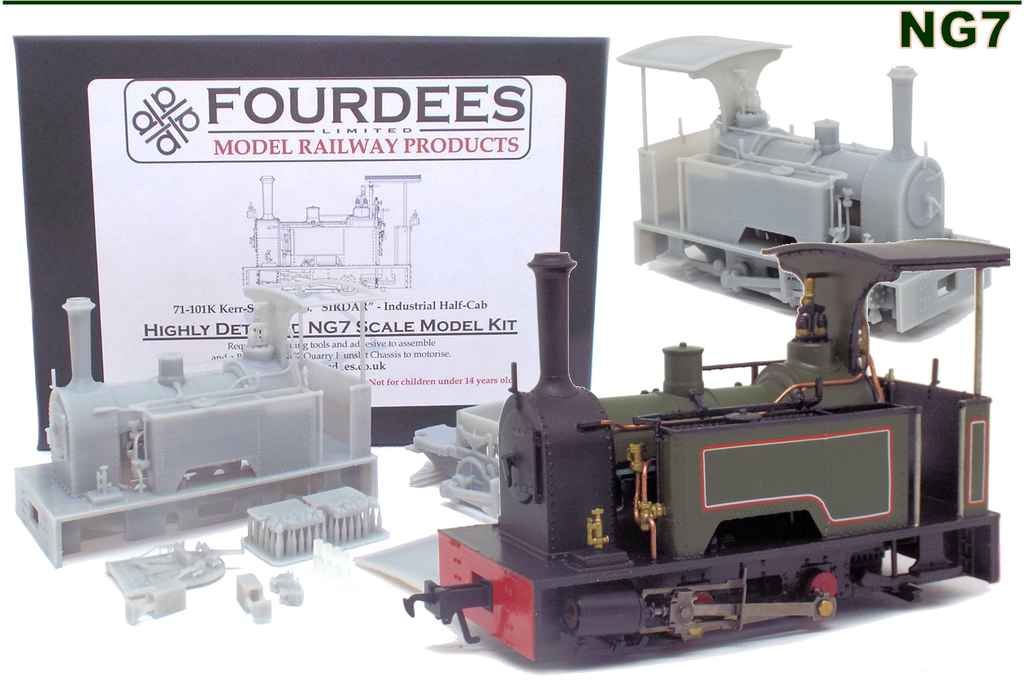

NG7 scale | Resin kit | 71-101K
This is a detailed scale model kit for adult collectors. Not for children under 14 years old.

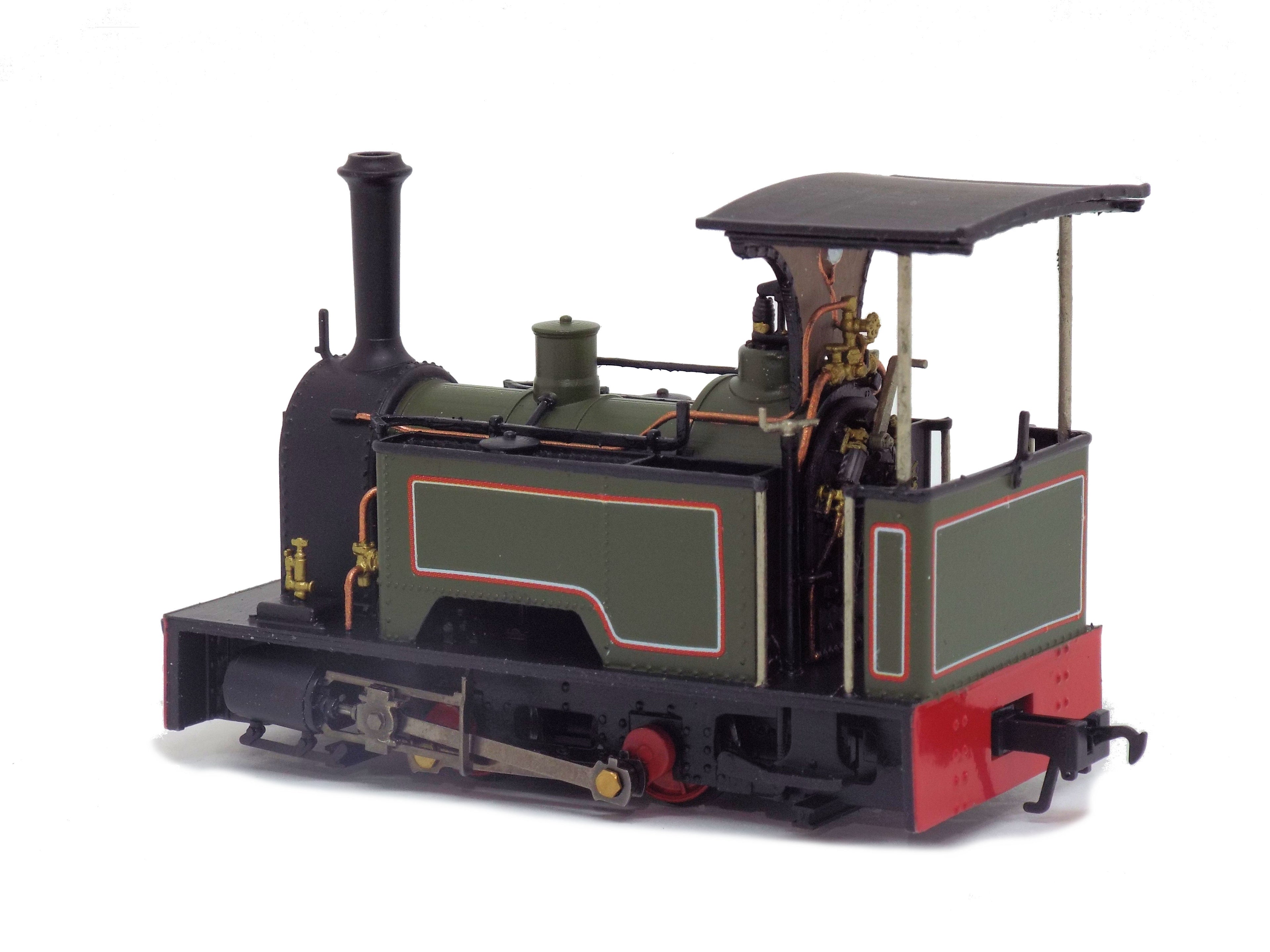

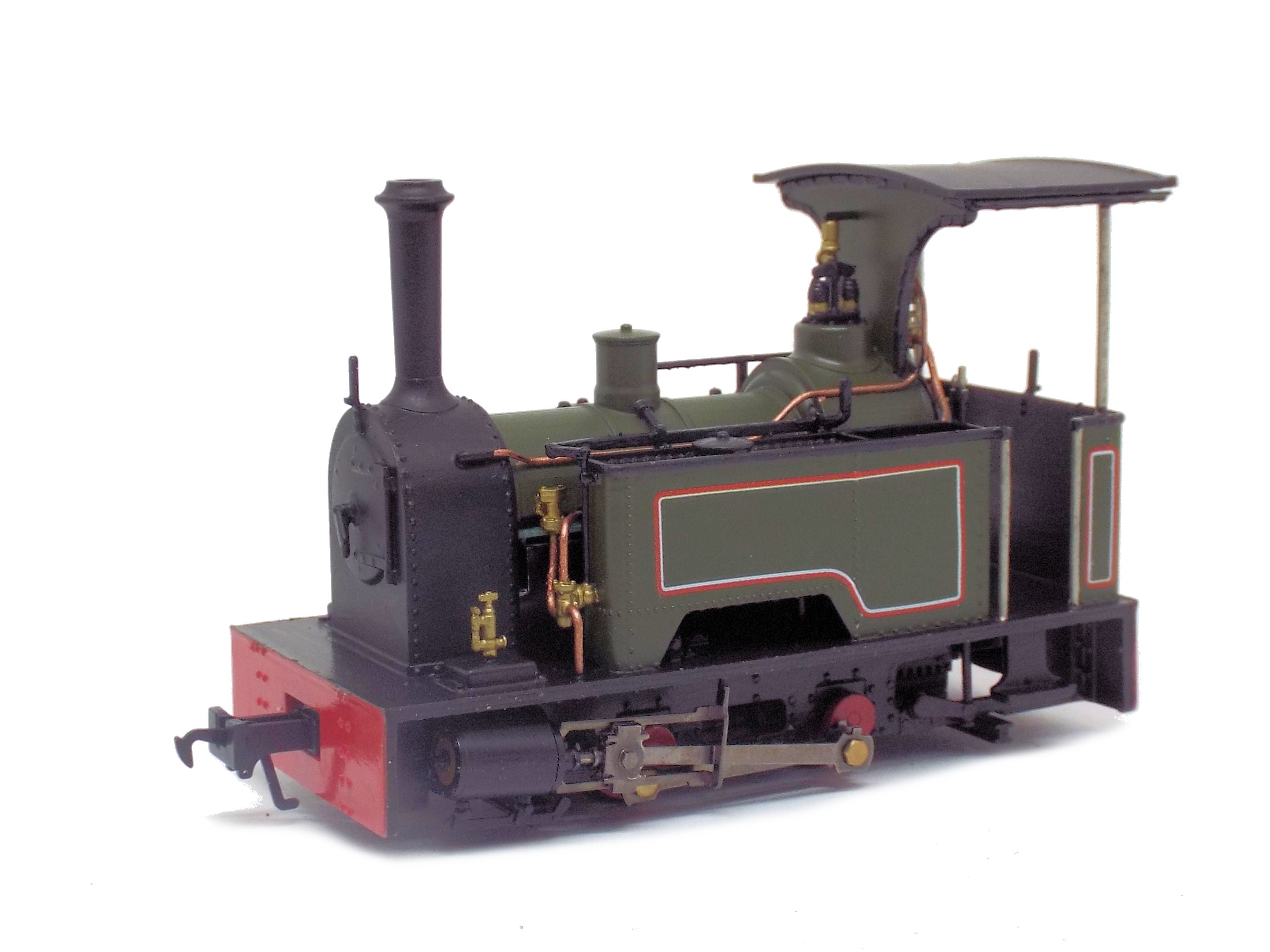

This model kit is of a 0-4-0 Sirdar Class tank locomotive built in the late 1800s by Kerr-Stuart, predominantly for export. These machines are similar to DIANA, but to a narrower design, including smaller water tanks and injectors mounted at the tank fronts.
This model features an industrial half-cab.
The body is scaled to 1:43.5, with CAD created using original drawings from the Kerr, Stuart & Co. archive. The firebox doors are modelled partially opened, to show off the firebox flicker on the Bachmann mechanism (the small plastic shroud around the bulb needs unclipping/removing). There is also a housing inside the smokebox for placing the speaker unit found in the saddle of the Bachmann model (but this will need fix-wiring to the pcb).
The model includes a choice of bunker fittings (ether a moulded coal load or covers). The gauge glasses are clear resin, and lamps are also included to fit if desired. To produce a full bufferbeam, replacement NEM coupling arms are provided, into which the Bachamnn couplings can be fitted.

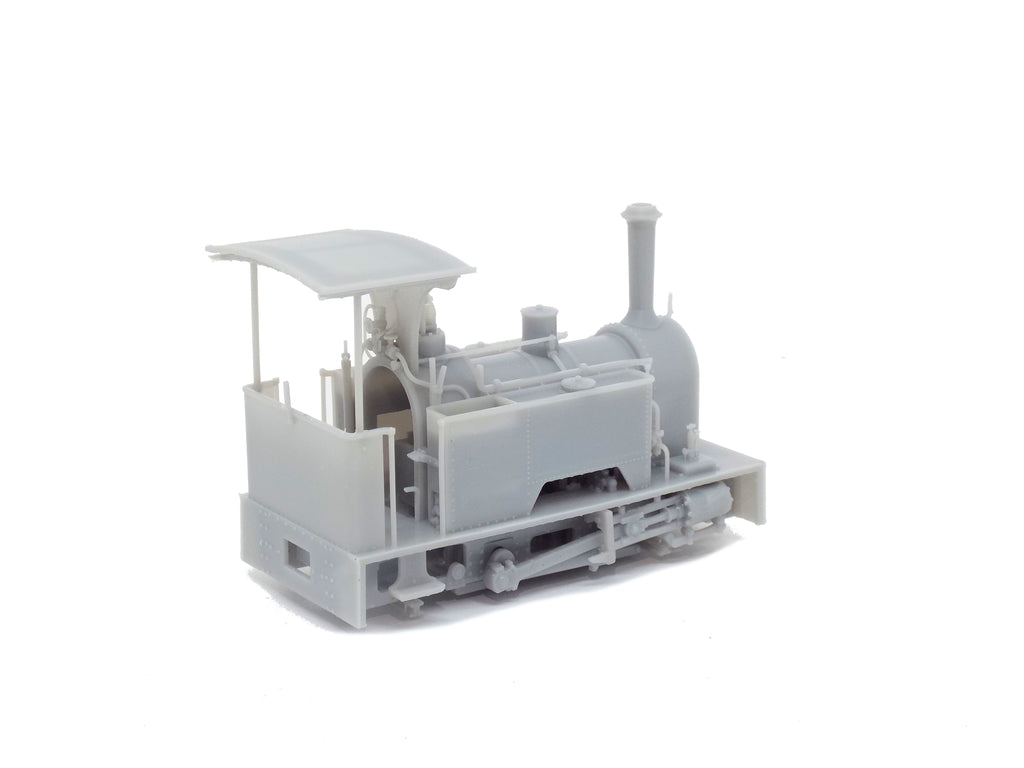

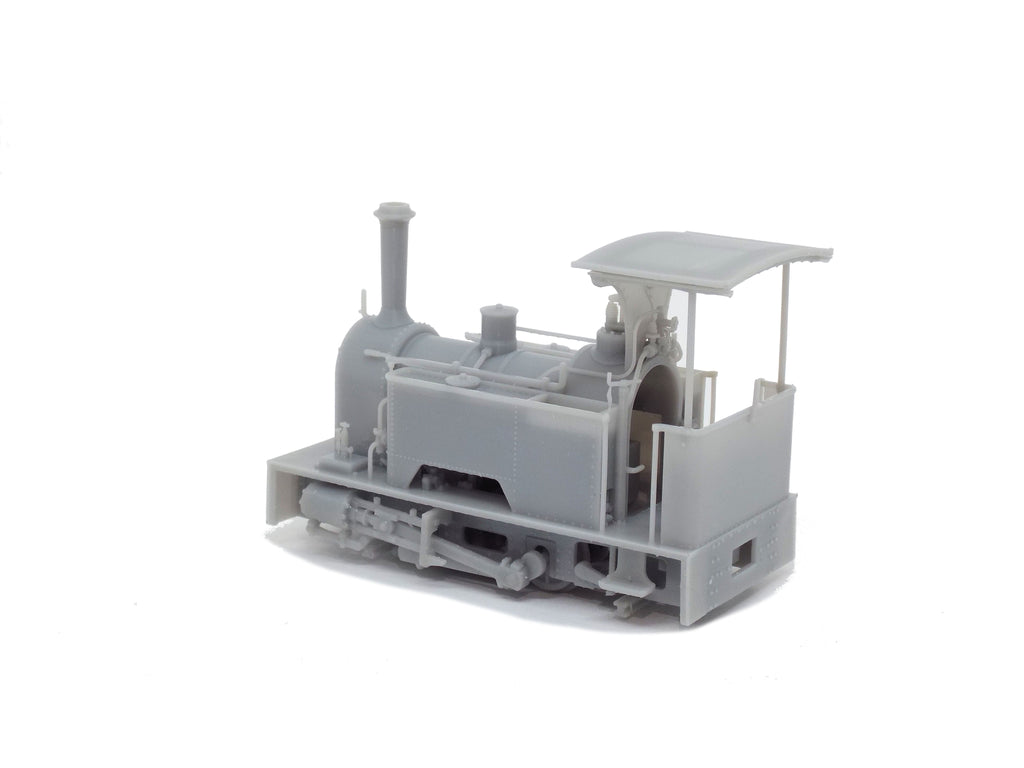

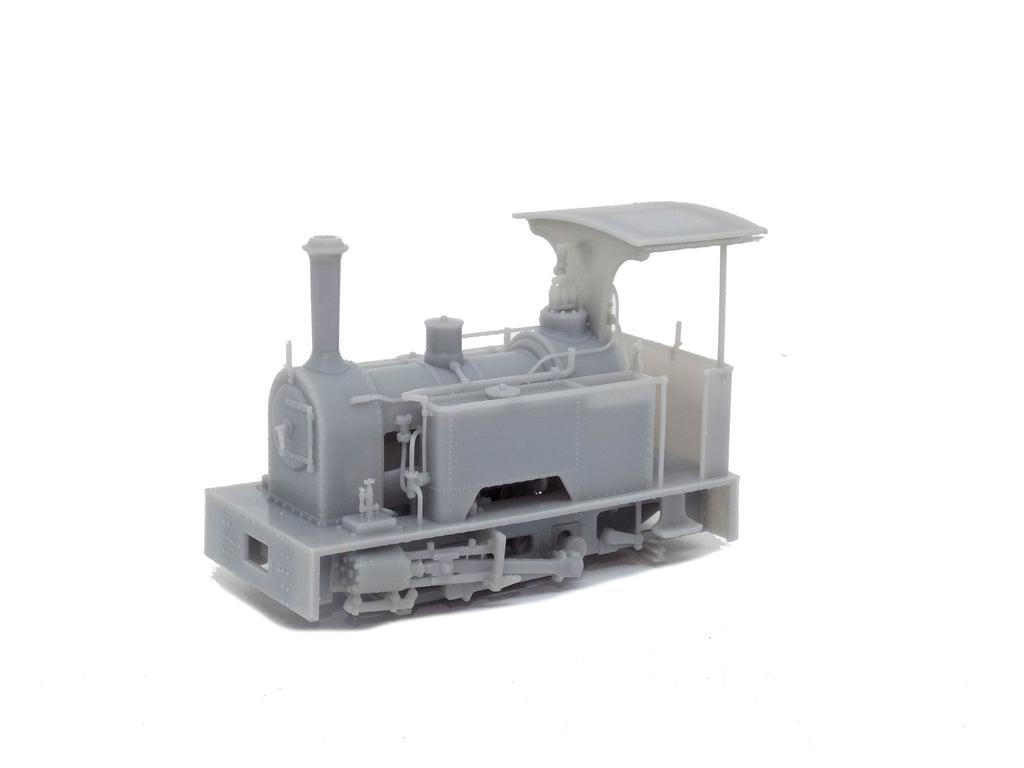

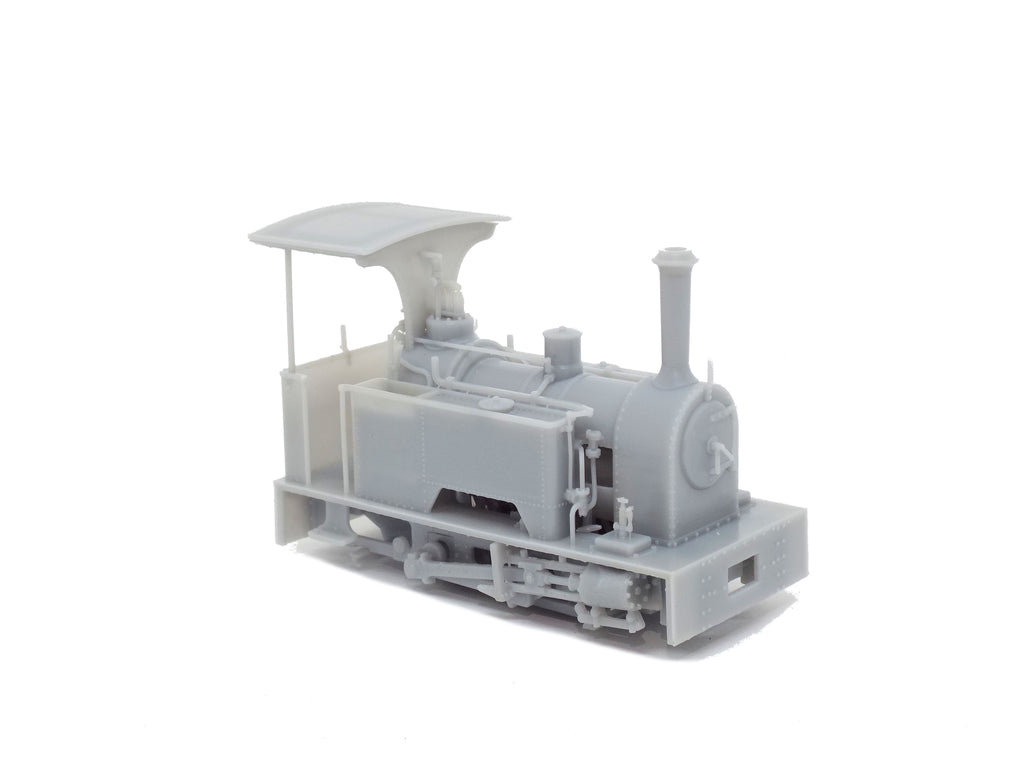

This is a highly detailed 4mm scale kit built using our in house machines, with High Definition resin and build layers just 50 microns (0.05mm) thick. Whilst there is 'stepping' visible on the parts up close, this is not discernible once the kit is painted and/or from usual viewing distances.
The parts have their main supports removed, though detailing and structural supports will remain to protect the parts in transit, and require removing prior to assembly. Some polishing and filing of the parts is required to provide a smooth finish. Clear (and varnished) resin windows are included, though you may wish to use clear plastic sheet (not included) if preferred.
You will need modelling tools (such as a craft knife, cutting board, files and micro-drills) adhesive, paints and ballast material (such as Liquid Gravity) to assemble the kit.
This kit requires a Bachmann Narrow Guage - NG7 Quarry Hunslet to motorise the finished model. Consult instructions to see if the chassis needs any modification before fitting.
Keep resin parts out of direct sunlight. Detailing and structural supports remain in order to protect the parts in transit, and should be removed before painting.
Parts will benefit from a wash in cool soapy water before painting, but do not leave them to soak. Alternative, Isopropyl alcohol is also a good cleaning solution if parts feel overly sticky.
If any components appear bent or warped, heat them gently with a hairdryer or in warm water (do not soak), and then hold parts whilst they cool.
If modifying the parts in any way (either by cutting, filing, sanding or drilling) be sure to wear appropriate protective clothing such as gloves and masks.
Length: 90 mm (over bufferbeam and cab roof)
Width: 40 mm
Height: 61 mm
Minimum radius:
Manufacturer: Kerr, Stuart and Company
Railway: Multiple Industrial Railways in the UK, currently resides on the Amerton Railway.
Gauge: 2'
Era: 1900 - present
