Product Specification
Model Dimensions
Length: 65 mm (over coupling)
Width: 24 mm
Height: 36 mm
Minimum radius:
Prototype Information
Manufacturer: W G Bagnall
Railway: Freelance
Gauge: 2'
Era: 1940s - present
Solan
£27.49
Skip to product information
Related products
This is a detailed scale model kit for adult collectors. Not for children under 14 years old.

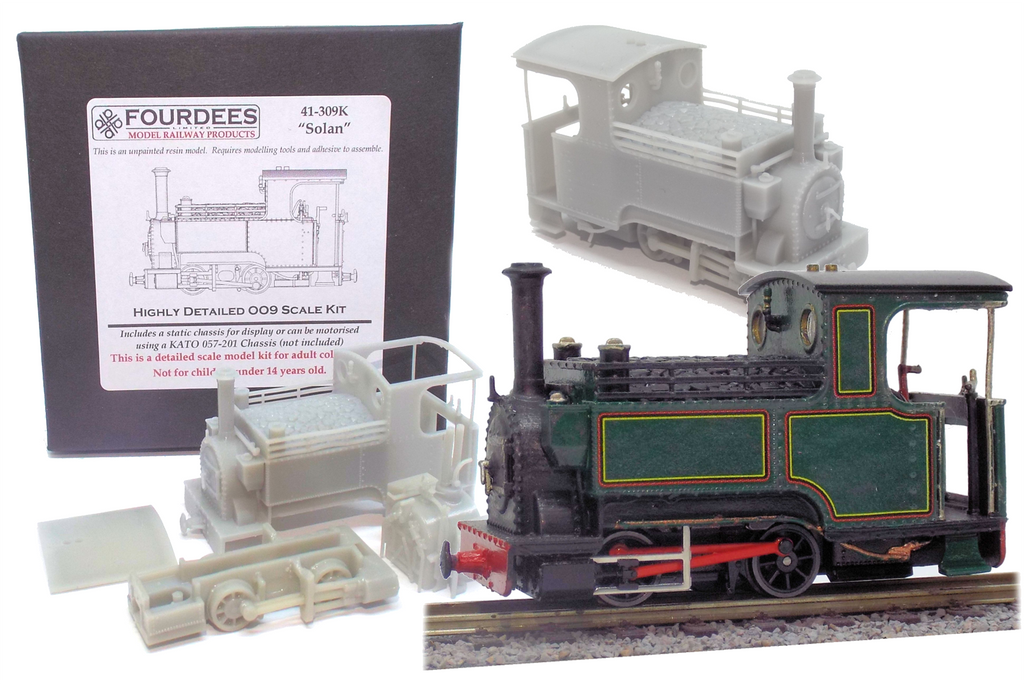

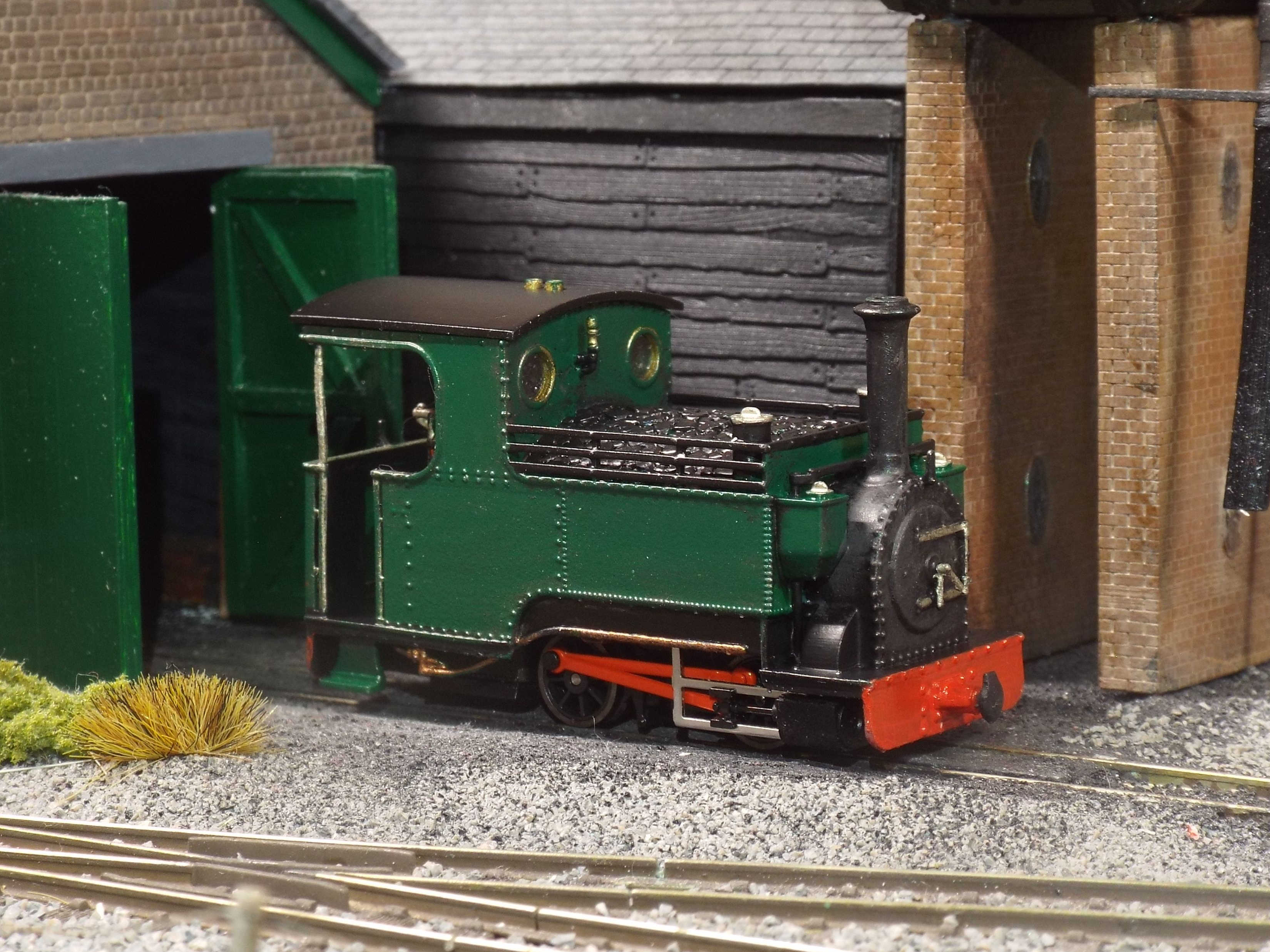

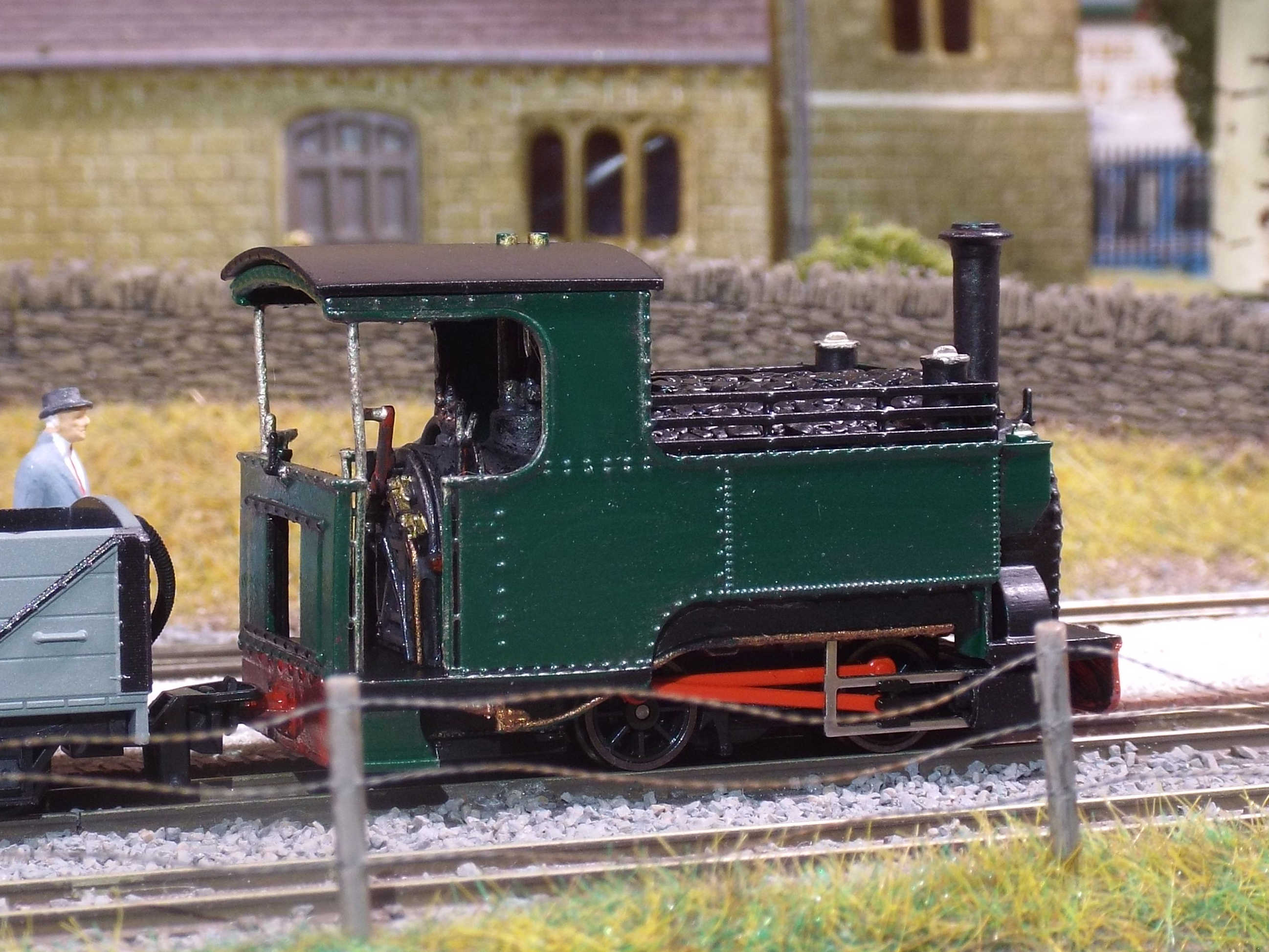

This model kit is of a freelance industrial locomotive, inspired by the prototypes built by W G Bagnall for work in India. The design is of a tank locomotive, with cab, smokebox and firebox of a similar style/profile to machines built by this manufacturer in the twentieth century.
In this case, the locomotive does not have continuous brakes, features short tanks, with steam dome located within an enlarged cab. You will need modelling tools (such as a craft knife and cutting board) adhesive and paints to assemble the kit. Includes a static chassis so that the model can be displayed on 9mm gauge track.
This model has been updated from that shown in the photographs, and now includes an NEM coupling pocket and short coupling.

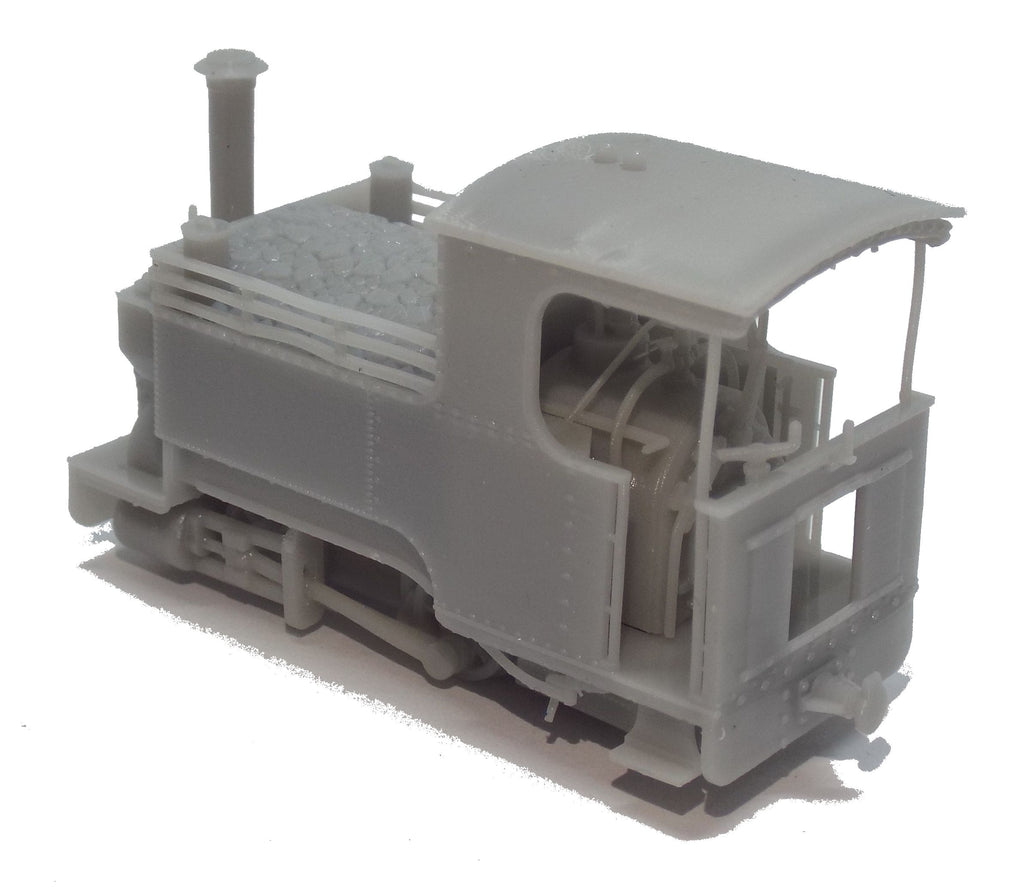

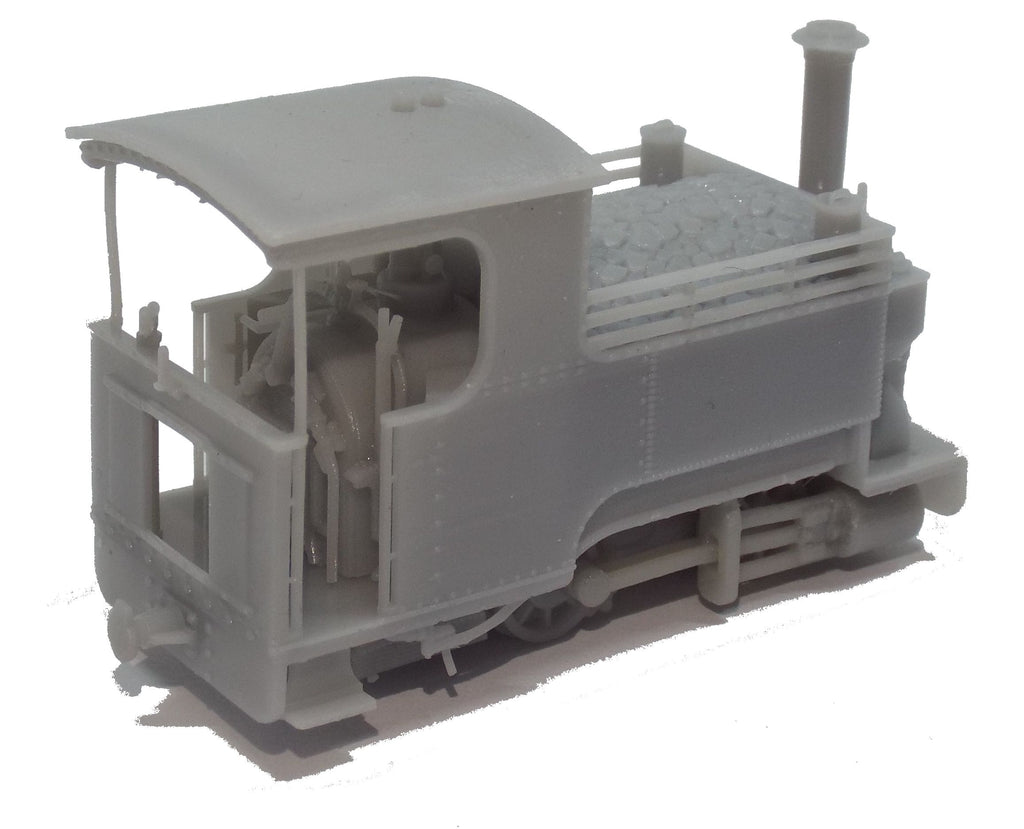

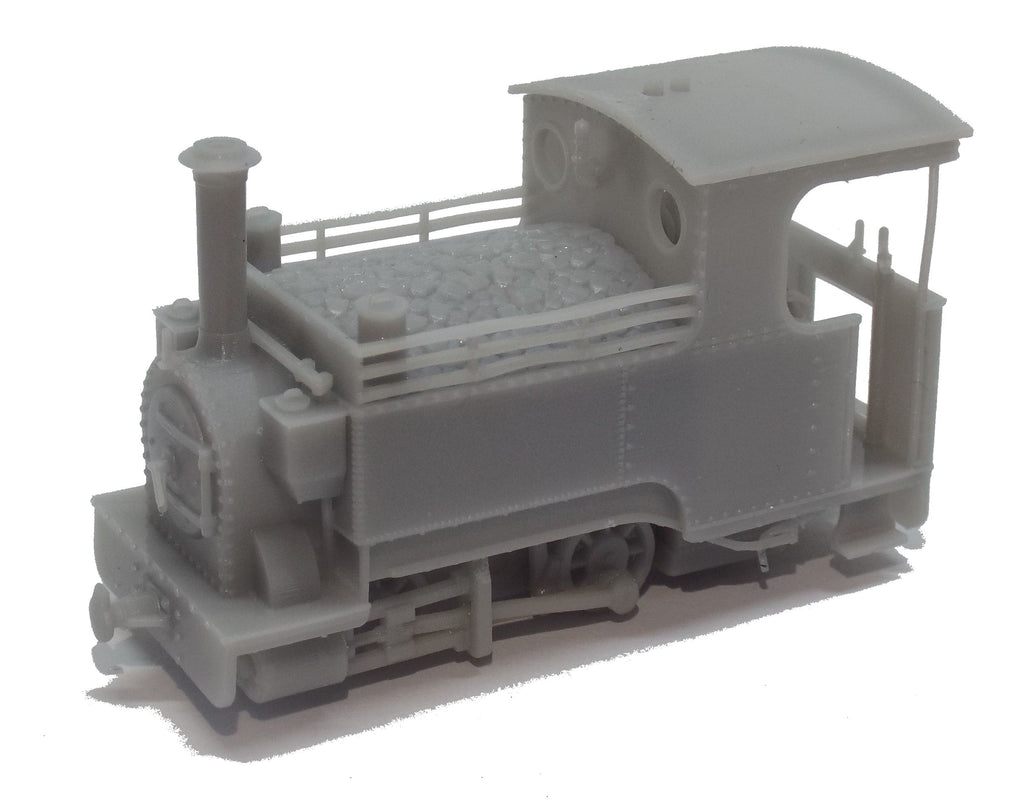

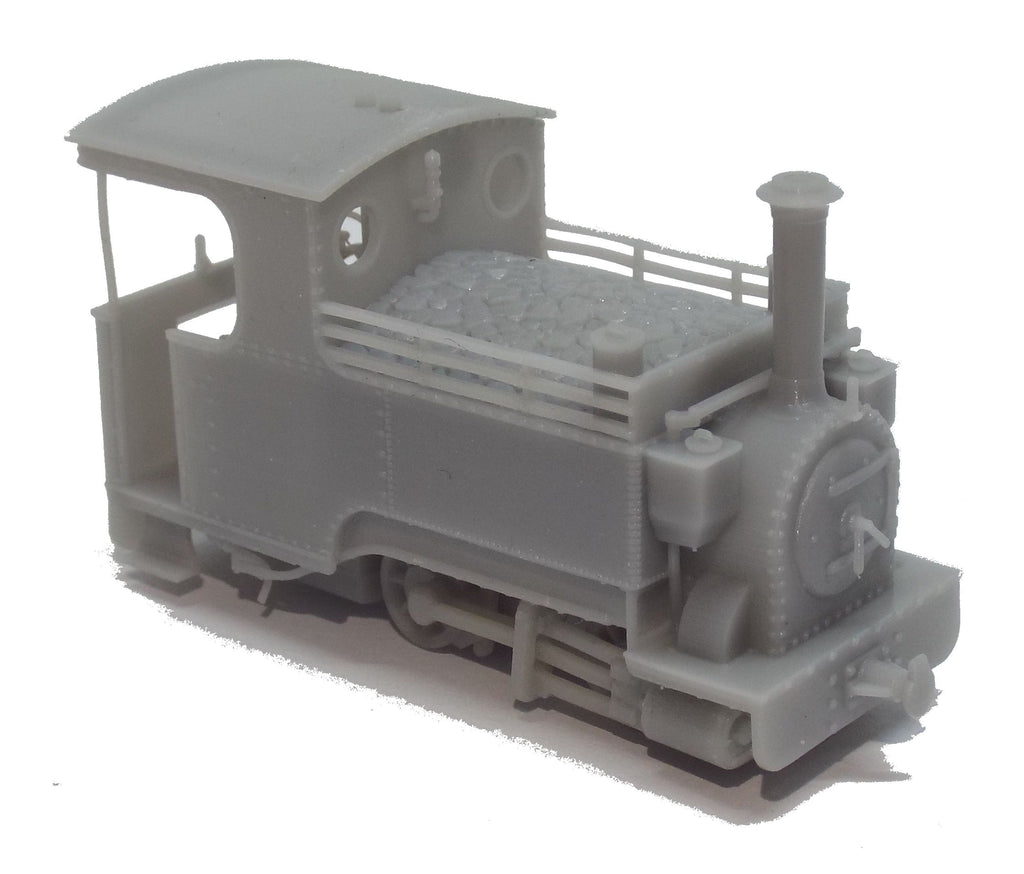

This is a beginner's kit, and comprises a single large body shell, with separate cab roof, boiler backhead and a selection of detailing components with which to personalise the model. The model has a sprue on the inside of the saddle tank, on which are three further detailing components. This sprue should be cut with approximately 2mm of the bar remaining at each side to act as a locator when the body is fitted to the chassis.
Manufacturing
This is a highly detailed 4mm scale kit built using our in house machines, with High Definition resin and build layers just 50 microns (0.05mm) thick. Whilst there is 'stepping' visible on the parts up close, this is not discernible once the kit is painted and/or from usual viewing distances.
The parts have their main supports removed, though detailing and structural supports will remain to protect the parts in transit, and require removing prior to assembly. Some polishing and filing of the parts is required to provide a smooth finish. Clear (and varnished) resin windows are included, though you may wish to use clear plastic sheet (not included) if preferred.
Assembly
You will need modelling tools (such as a craft knife, cutting board, files and micro-drills) adhesive, paints and ballast material (such as Liquid Gravity) to assemble the kit.
This kit requires a KATO 57-201 to motorise the finished model. Consult instructions to see if the chassis needs any modification before fitting.
Hints and Tips
Keep resin parts out of direct sunlight. Detailing and structural supports remain in order to protect the parts in transit, and should be removed before painting.
Parts will benefit from a wash in cool soapy water before painting, but do not leave them to soak. Alternative, Isopropyl alcohol is also a good cleaning solution if parts feel overly sticky.
If any components appear bent or warped, heat them gently with a hairdryer or in warm water (do not soak), and then hold parts whilst they cool.
If modifying the parts in any way (either by cutting, filing, sanding or drilling) be sure to wear appropriate protective clothing such as gloves and masks.
