OO9 scale | Resin kit | 41-352K
This is a detailed scale model kit for adult collectors. Not for children under 14 years old.

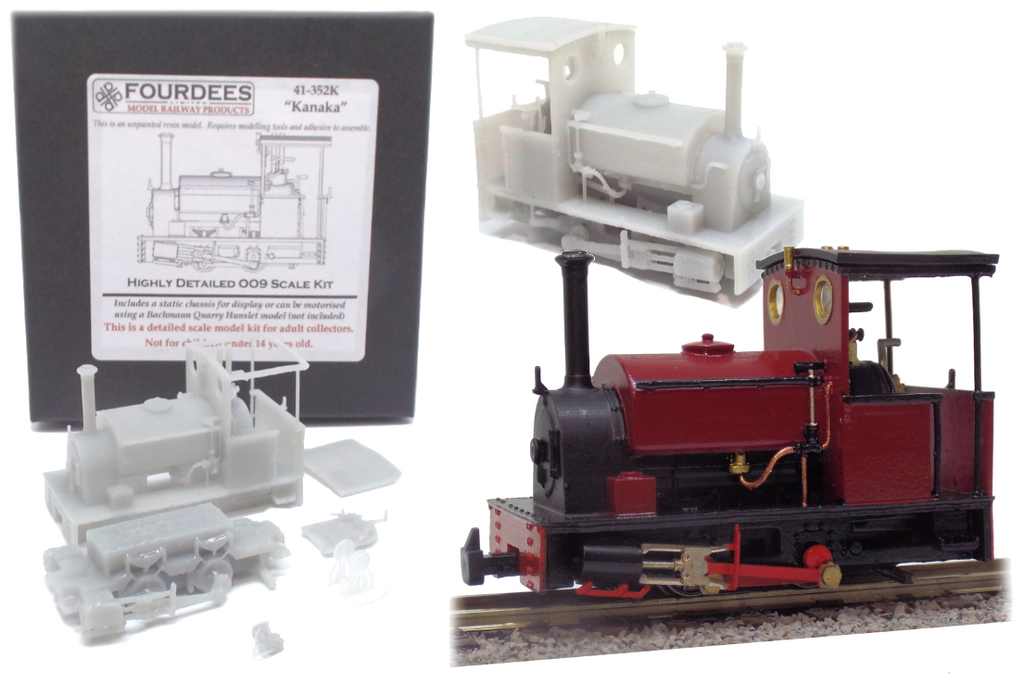

This model kit is of a 0-4-2 saddle tank locomotive, heavily inspired by the 'Kanaka' class of locomotive built by Hudswell Clarke in 1908. Multiple variants were constructed, with different wheelbases and wheel arrangements. Multiple examples found their way to Australia and Fiji. The most recognisable member of this class is Lautoka No.19, now preserved at the Statfold Barn Railway.

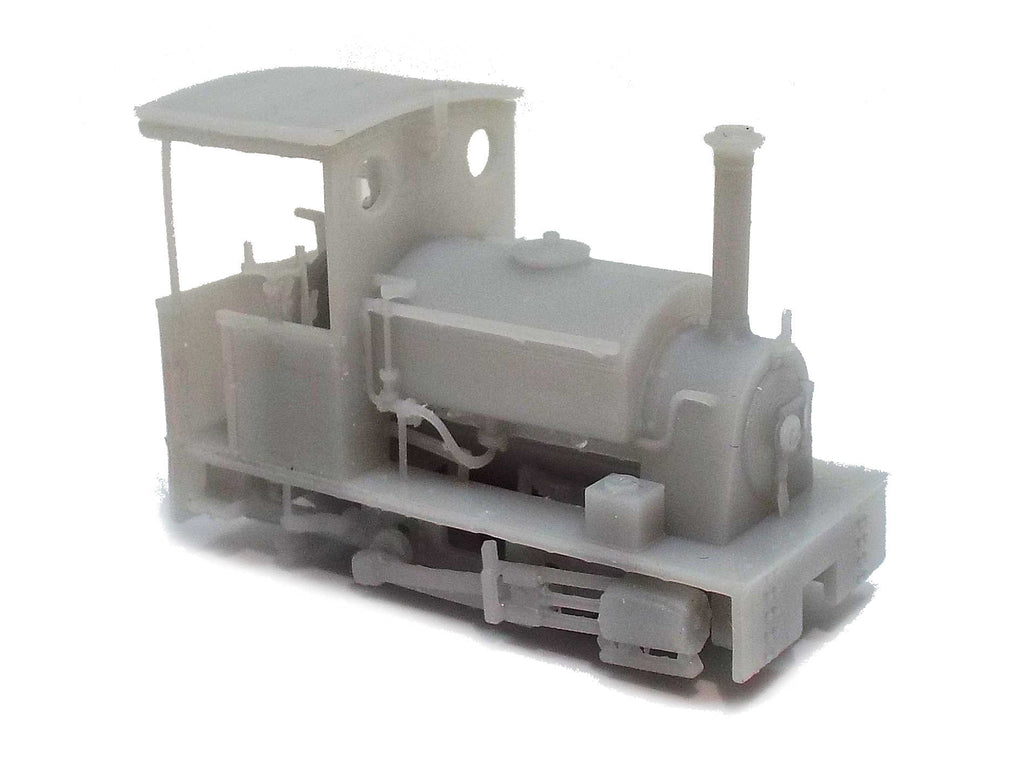

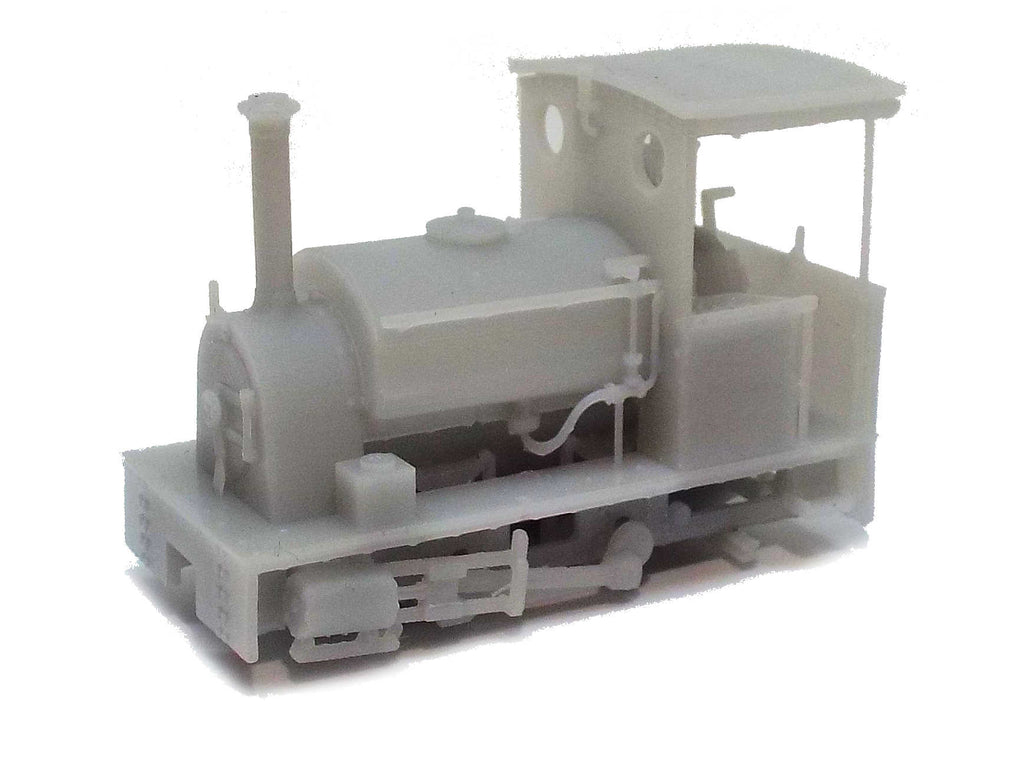

This is a highly detailed 4mm scale kit built using our in house machines, with High Definition resin and build layers just 50 microns (0.05mm) thick. Whilst there is 'stepping' visible on the parts up close, this is not discernible once the kit is painted and/or from usual viewing distances.
The parts have their main supports removed, though detailing and structural supports will remain to protect the parts in transit, and require removing prior to assembly. Some polishing and filing of the parts is required to provide a smooth finish. Clear (and varnished) resin windows are included, though you may wish to use clear plastic sheet (not included) if preferred.
You will need modelling tools (such as a craft knife, cutting board, files and micro-drills) adhesive, paints and ballast material (such as Liquid Gravity) to assemble the kit.
This kit requires a Bachmann Narrow Guage - 009 Quarry Hunslet to motorise the finished model. Consult instructions to see if the chassis needs any modification before fitting.
Keep resin parts out of direct sunlight. Detailing and structural supports remain in order to protect the parts in transit, and should be removed before painting.
Parts will benefit from a wash in cool soapy water before painting, but do not leave them to soak. Alternative, Isopropyl alcohol is also a good cleaning solution if parts feel overly sticky.
If any components appear bent or warped, heat them gently with a hairdryer or in warm water (do not soak), and then hold parts whilst they cool.
If modifying the parts in any way (either by cutting, filing, sanding or drilling) be sure to wear appropriate protective clothing such as gloves and masks.
Length: 50 mm (over bufferbeams)
Width: 23 mm
Height: 35 mm
Minimum radius:
Manufacturer: Hudswell Clarke
Railway: Freelance, but inspired by prototypes that worked in Australia and Fiji.
Gauge: 2'
Era: 1910 - present
