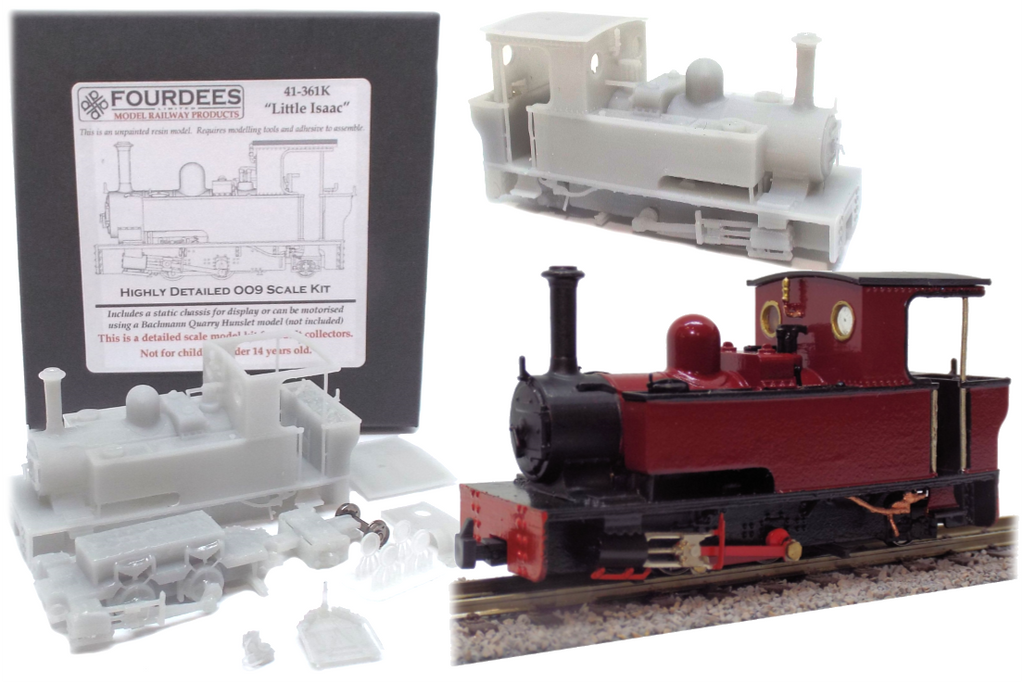

OO9 scale | Resin kit | 41-361K
This is a detailed scale model kit for adult collectors. Not for children under 14 years old.

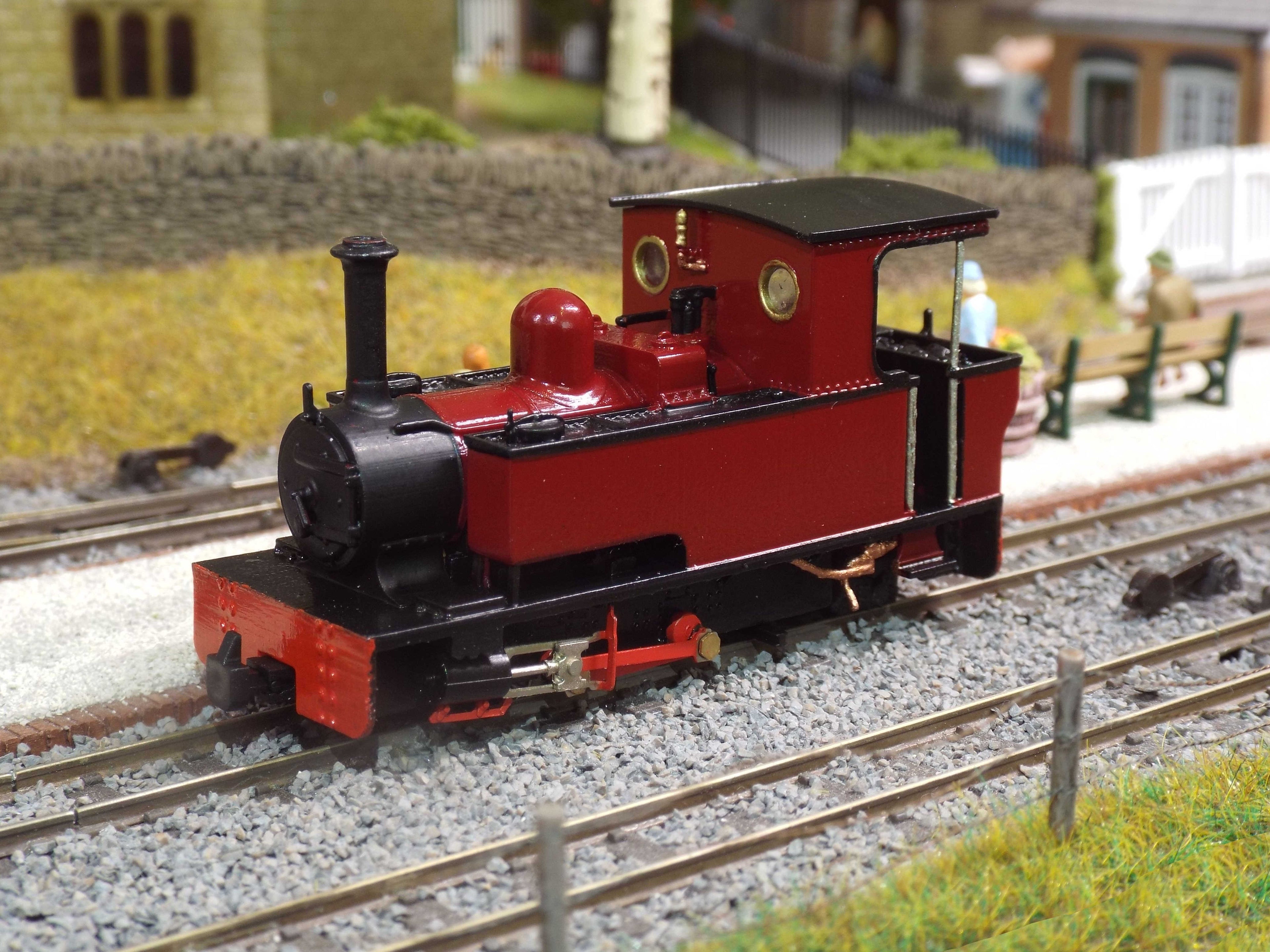

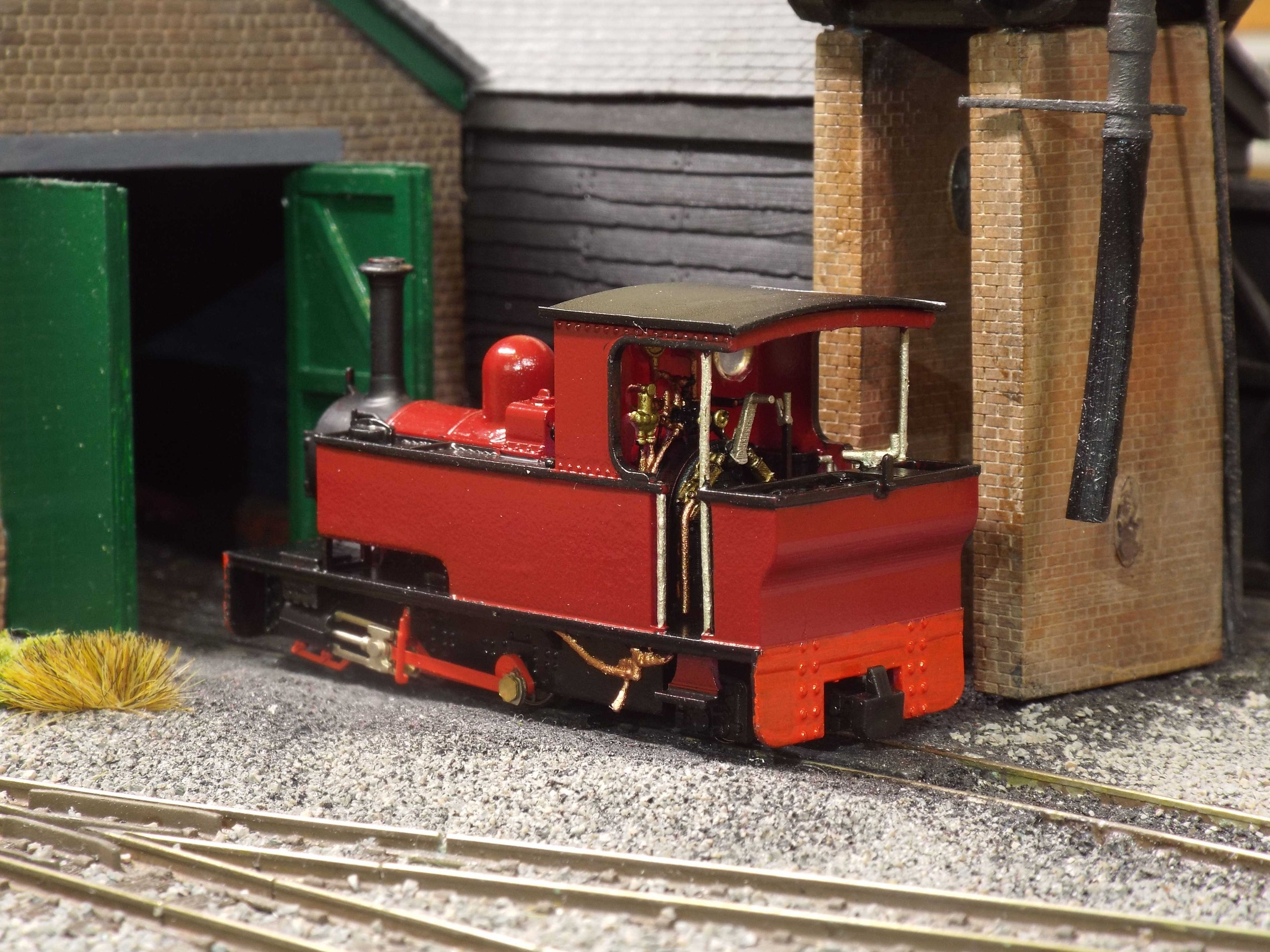

This model kit is of a 0-4-2 tank locomotive, is inspired by the locomotives built by Bagnall for the Rustenberg Platinum Mines, SA. Four large machines were built between1948 and 1953 to this design, with two members now restored and working in the UK: Gelert at the Welsh Highland Heritage Railway, and Isaac on the Statfold Barn. The Quarry Hunslet mechanism is not appropriate to model these prototypes, and so we have scaled down the profile to fit the mechanism. It still has the same attractive cab and smokebox profile, whilst the tanks have been extended slightly to hide the chassis mechanism.

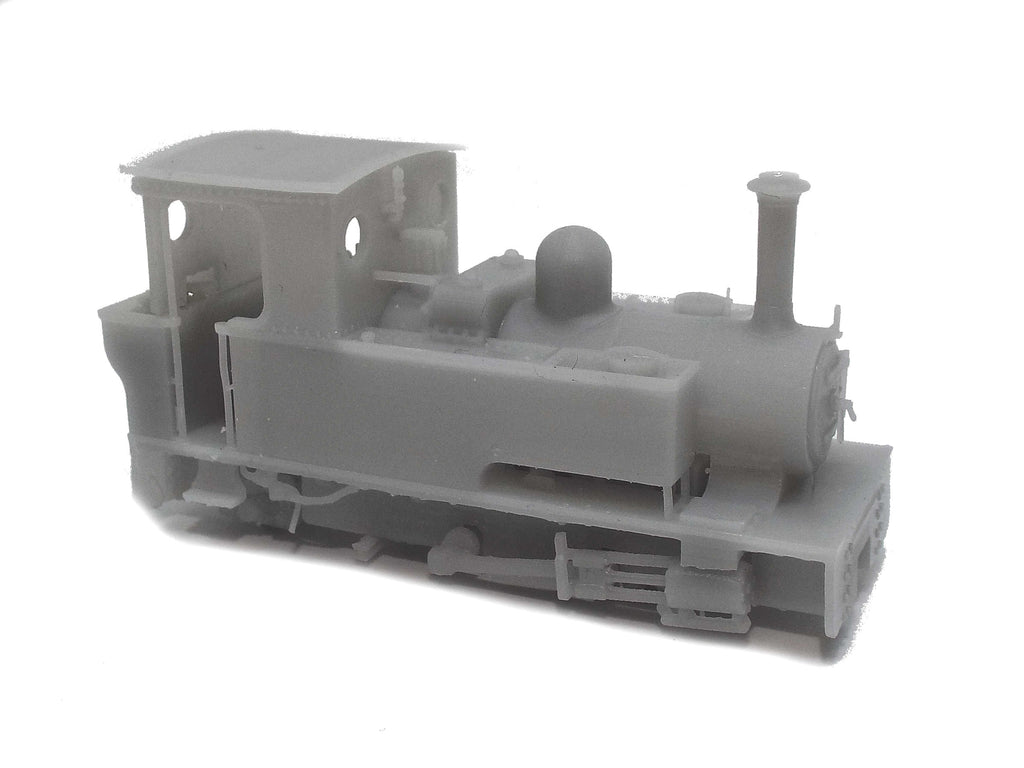

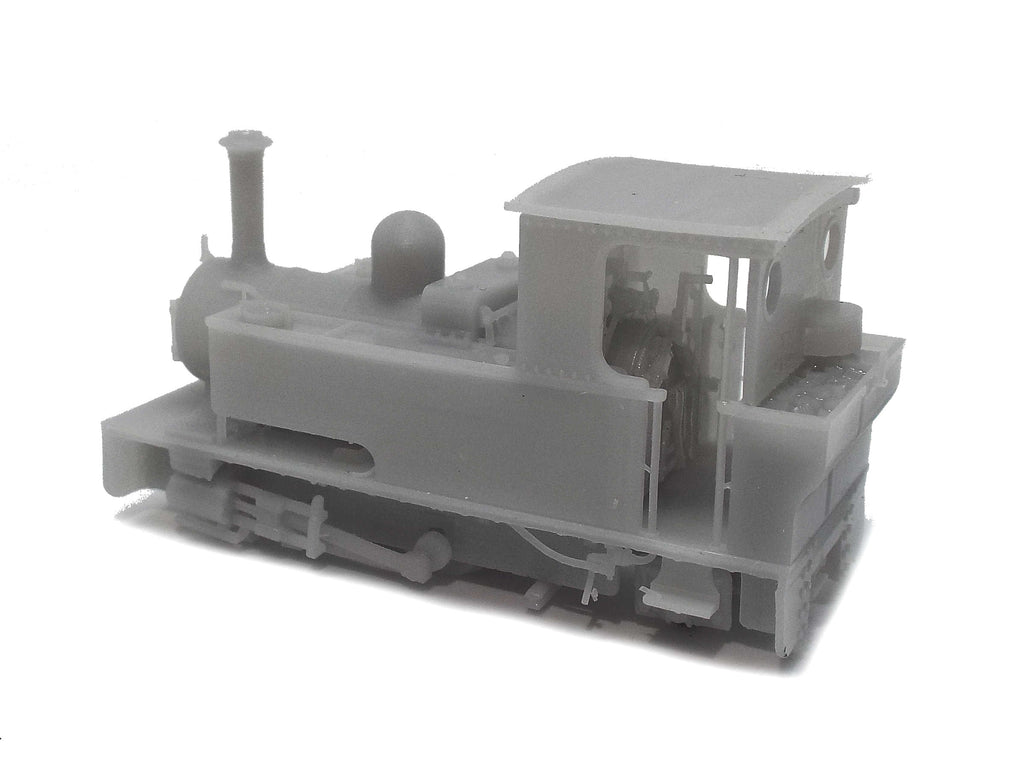

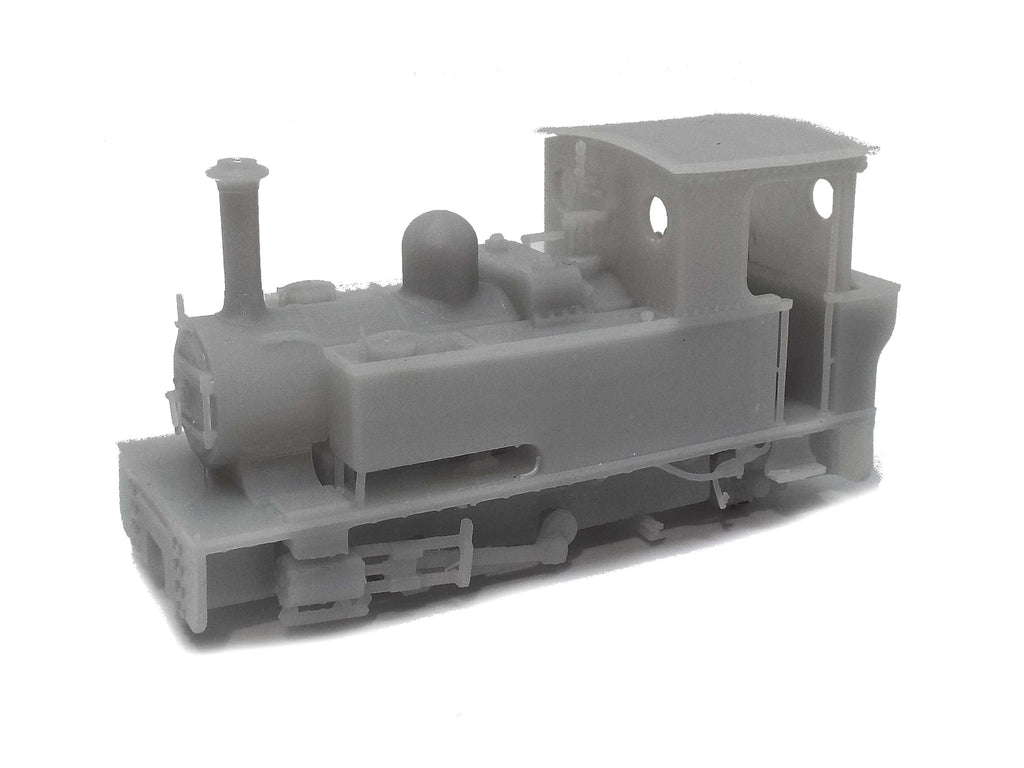

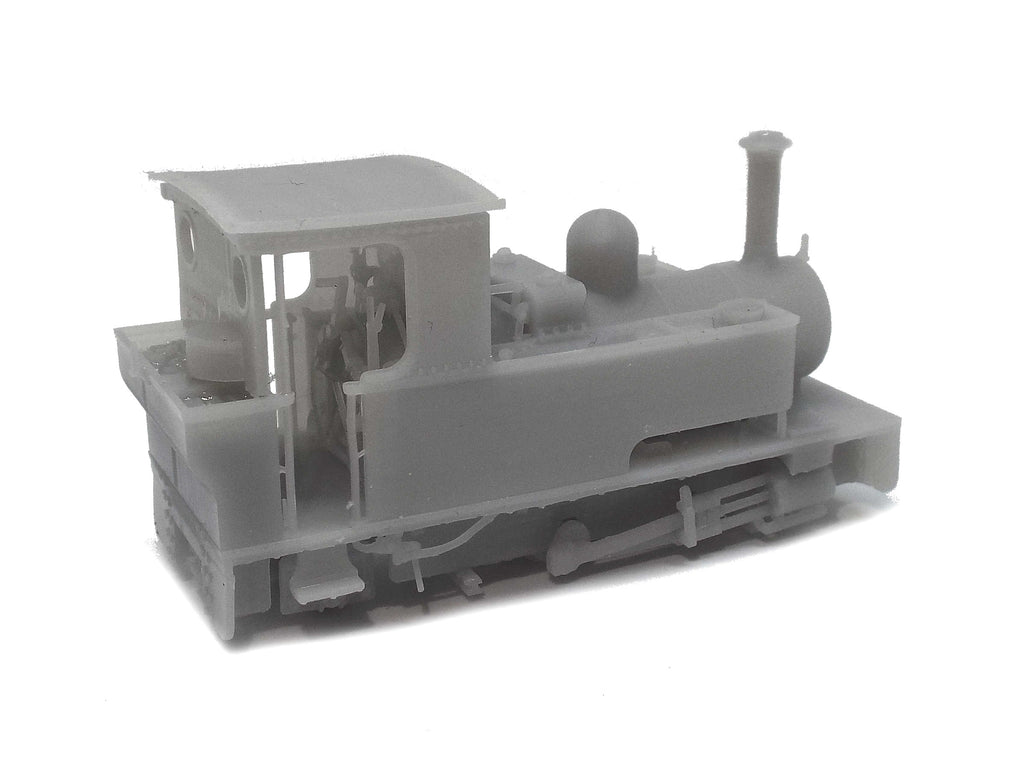

This is a highly detailed 4mm scale kit built using our in house machines, with High Definition resin and build layers just 50 microns (0.05mm) thick. Whilst there is 'stepping' visible on the parts up close, this is not discernible once the kit is painted and/or from usual viewing distances.
The parts have their main supports removed, though detailing and structural supports will remain to protect the parts in transit, and require removing prior to assembly. Some polishing and filing of the parts is required to provide a smooth finish. Clear (and varnished) resin windows are included, though you may wish to use clear plastic sheet (not included) if preferred.
You will need modelling tools (such as a craft knife, cutting board, files and micro-drills) adhesive, paints and ballast material (such as Liquid Gravity) to assemble the kit.
This kit requires a Bachmann Narrow Guage - 009 Quarry Hunslet to motorise the finished model. Consult instructions to see if the chassis needs any modification before fitting.
Keep resin parts out of direct sunlight. Detailing and structural supports remain in order to protect the parts in transit, and should be removed before painting.
Parts will benefit from a wash in cool soapy water before painting, but do not leave them to soak. Alternative, Isopropyl alcohol is also a good cleaning solution if parts feel overly sticky.
If any components appear bent or warped, heat them gently with a hairdryer or in warm water (do not soak), and then hold parts whilst they cool.
If modifying the parts in any way (either by cutting, filing, sanding or drilling) be sure to wear appropriate protective clothing such as gloves and masks.
Length: 68 mm (over bufferbeams)
Width: 25 mm
Height: 36 mm
Minimum radius:
Manufacturer: W G Bagnall
Railway: Inspired by examples from the Rustenberg Platinum Mines (SA), Welsh Highland Heritage Railway and Statfold Barn Railway.
Gauge: 2'
Era: 1950 - present
We have a 14-day return policy, which means you have 14 days after receiving your item to request a return. For full details please see our returns policy.
Fourdees Limited is not liable for any breakages of parts during assembly of the kit.
If parts arrive damaged, please provide photographic evidence and we shall replace the damaged component. If you require spares or accessories, please contact us for a quote for replacements.
Orders ship on Mondays and Fridays. Please allow for this when ordering. If you require a rush order, please email to see if this will be possible (a surcharge may apply).
